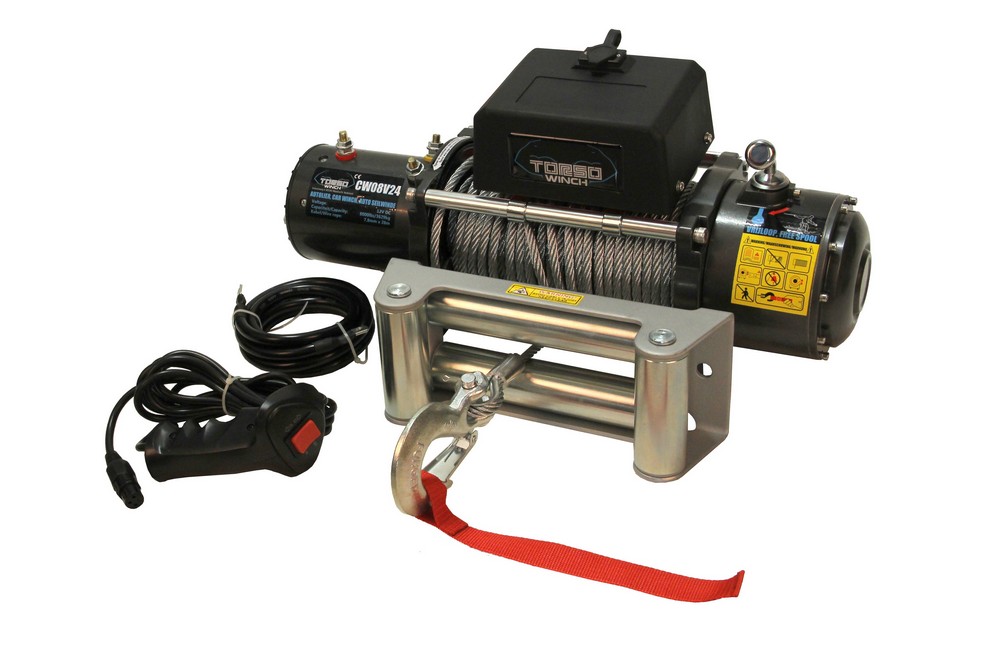

Car winch / bumperwinch
Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:
- 4way fair load roller, for excellent cable mobility.
- control switch, with 3mtrs cable length.
- clevis pinned/latched hook.
- 1.5mtr battery conection cable .
- hand operated clutch for free spooling.
- automatic brake.
- 1.5t pulley block.
Wireless remote optional.
Optional mounting plate, ensures correct mounting of the winch.
The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.
Technical specifications:
- 24V single line
- rated pull = 8000lbs (3600kg)
- gear reduction ratio = 218:1
- Serie-wound motor = 24V 5.5HP
- drum size = 63.5x224mm
- cable length = 28m
- cable diameter = 7.8mm
- line pull = 0kg, 907kg, 1814kg, 2722kg, 3600kg
- line speed = 7.8mpm, 4.88mpm, 3.63mpm, 2.98mpm, 2.44mpm
- amp draw = 80A, 130A, 180A, 230A, 290A
- layer of cable = 1, 2, 3, 4
- pull per layer = 3600kg, 3012kg, 2540kg, 2177kg
- cap per layer = 6m, 13.2m, 22m, 28m
- mounting dimensions heart to heart = 255 x 115mm
Dimensions du produit : | |
---|---|
Longueur du produit | 552 mm |
Largeur du produit | 170 mm |
Hauteur du produit | 214 mm |
Poids du produit | 35,0 Kg |
Dimensions de l'emballage : | |
Longueur du paquet | 610 mm |
Largeur du paquet | 360 mm |
Hauteur du paquet | 260 mm |
Poids du Colis | 38,00 Kg |
