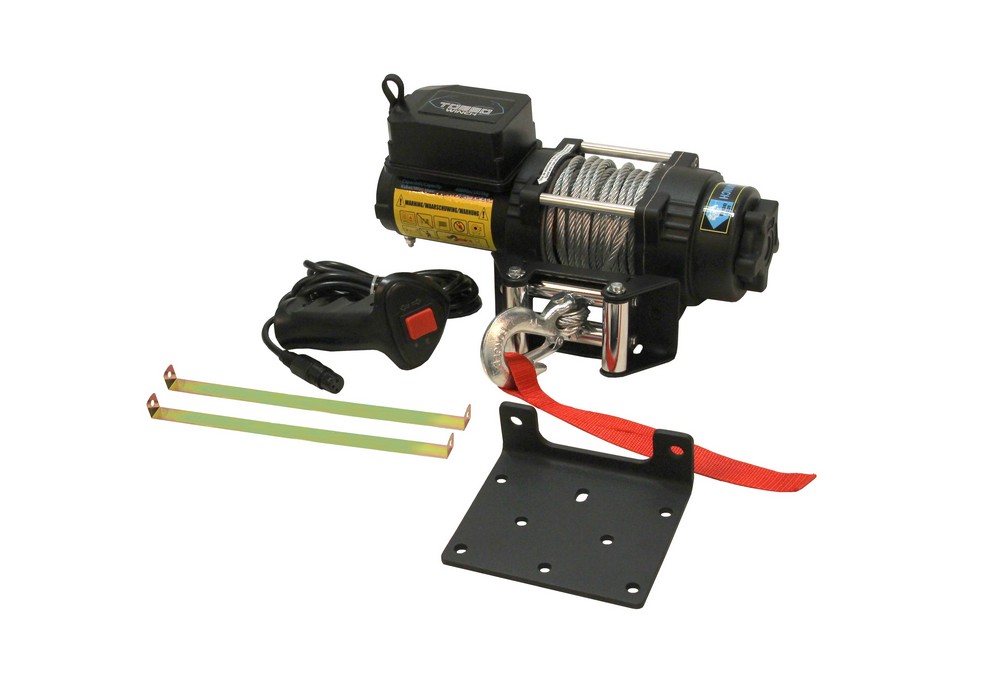

Electric winch 12V 4000lbs

Car winch / bumperwinch

Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:
- 4way fair load roller, for excellent cable mobility.

- mounting plate, ensures correct mounting of the winch.

- control switch, with 3mtrs cable length.
- clevis pinned/latched hook.
- 1.5mtr battery conection cable .
- hand operated clutch for free spooling.
- automatic brake.
- 1.5t pulley block.

Wireless remote optional.

The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.

Technical specifications:
- 12V single line
- rated pull = 4000lbs (1800kg)
- gear reduction ratio = 198:1
- Serie-wound motor = 12V 1.6HP
- drum size = 50x76,5mm
- cable length = 10m
- cable diameter = 6mm
- line pull = 0kg, 454kg, 907kg, 1800kg
- line speed = 4.9mpm, 3.2mpm, 2.8mpm, 1.5mpm
- amp draw = 17A, 70A, 105A, 180A
- layer of cable = 1, 2, 3, 4
- pull per layer = 1800kg, 1460kg, 1225kg, 1055kg
- cap per layer = 2m, 4.3m, 7.2m, 10m
- mounting dimensions heart to heart = 125 x 75mm
