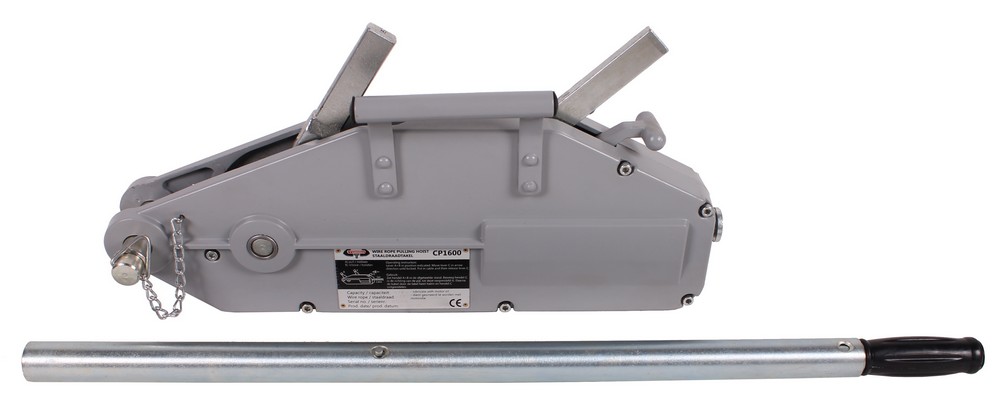

Cable puller
TORSO Wire rope hoists are portable, strong and can be used in any application. the design of the hoist allows for both vertical and horizontal use. To prevent overload the manual control handle is equiped with an safety break pin.
The load capacaty of the device can be increased with an scheave block/snatch block.
Specifications:
- capacity = 1600kg
- cable length = 20mtr
- cable diameter = 11mm
- stroke = 55mm
- 1 lifting stroke
- max. handforce = 41kg
- weight puller = 11,9kg
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 545 mm |
| Largeur du produit | 72 mm |
| Hauteur du produit | 280 mm |
| Poids du produit | 27,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 810 mm |
| Largeur du paquet | 400 mm |
| Hauteur du paquet | 200 mm |
| Poids du Colis | 28,00 Kg |
