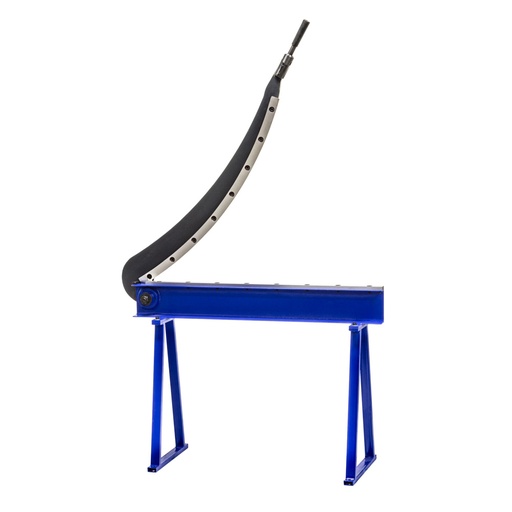

Manuel shear This universal guillotine shear is ideal for cutting metal sheets and other materials. The shear comes with a foot and can be attached to the floor. - blade width = 1000mm - max. shearing thickness = 1,5mm

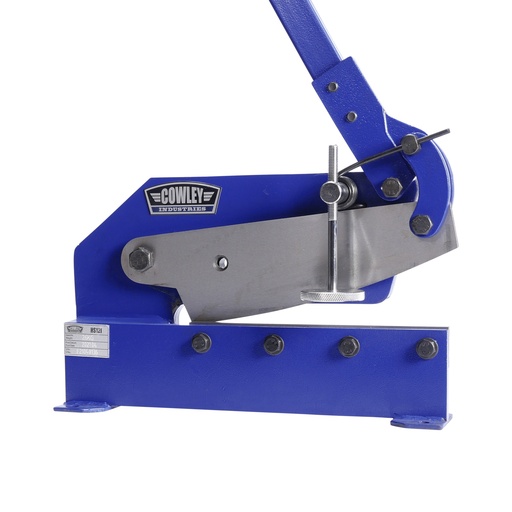

Hand shear from Cowley is a durable universal cutter for sheet, round steel and flat bar. Standard lever shears for installers, locksmitheries and training workshops. The lever shears are capable of cutting round billets up to 11 mm in diameter, sheet steel up to 5 mm thick and strips up to 70x5 mm in size. The scissors are equipped with a strong, height-adjustable clamp and high-quality cutting blades. Due to the favourable cutting geometry of the arched top blade allows smooth and easy power-saving cutting without much effort along the entire length of the working stroke.Technical specifications:

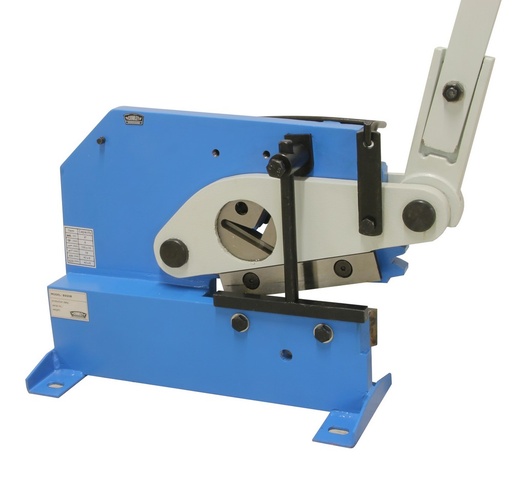

Bar and section shear - size blade = 200mm Capacity mild steel: - round steel = 16mm - square steel = 16mm - flat steel = 100 x 10mm - angle steel = 40 x 6mm - T-steel = 40 x 6mm - plate steel = 8mm

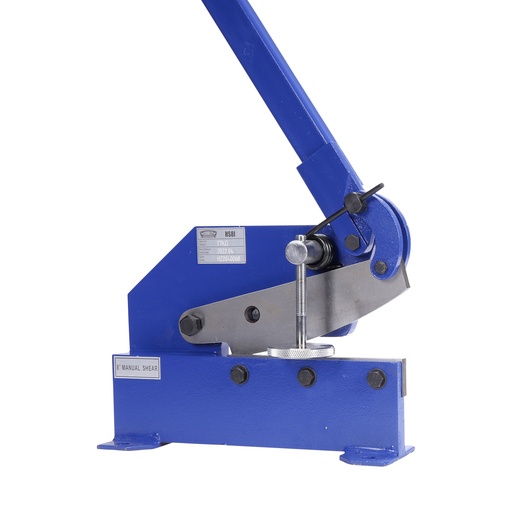

sheet metal shears / lever hand scissors / lever shearsHand shear from Cowley is a durable universal cutter for sheet, round steel and flat bar. The lever shears are capable of cutting round steel up to 11 mm in diameter, sheet steel up to 4 mm thick and flat steel up to 70x5 mm in size. The scissors are equipped with a strong, height-adjustable down holder which prevents twisting of the steel during cutting. Due to high quality cutting blades and the favourable cutting geometry of the arched top blade the shear has a smooth and easy cutting stroke.The features of this model:
