Power distributor

This Fluxon power distributor is ideal for using on construction sites and such.
The open space under the box and the lockable cover provide protection against water and other liquids.

Features a handle, shackles, power breaker and 2 meters of cable.

Input:

• CEE plug 63A / 5-pole / 400V

Output:

• 2x CEE socket 16A / 5-pole / 400V

• 2x CEE socket 32A / 5-pole / 400V

• 1x CEE socket 63A / 5-pole / 400V

• 4x socket (DIN49440) 16A / 230V

Pneumatic oil extractor

- provided with strainer
- air inlet pressure = 6 ~ 8bar / 87 ~ 116psi
- ejection pressure = 0,7 ~ 1bar / 10 ~ 15psi
- air consumption = 150L/min
- vacuum degree = 0 ~ -1bar / -15psi
- tank capacity = 65L
- oil tray volume = 16L
- working temperature = 40 ~ 60degrees celcius

Suction probes:
- suction probes = diam. 5 x L80cm (PCV) = 1,9L/min
- suction probes = diam. 6 x L80cm (PCV) = 3,2L/min
- suction probes = diam. 6 x L70cm (PVC) = 4,2L/min
- suction probes = diam. 8 x L70cm (PVC) = 6,2L/min
- suction probes = diam. 6 x L80cm (PVC) = 3,7L/min
- suction probes = diam. 8 x L80cm (PVC) = 5,2L/min

Stand for rotary machine

This stand is suitable for the rotary machine RM018.

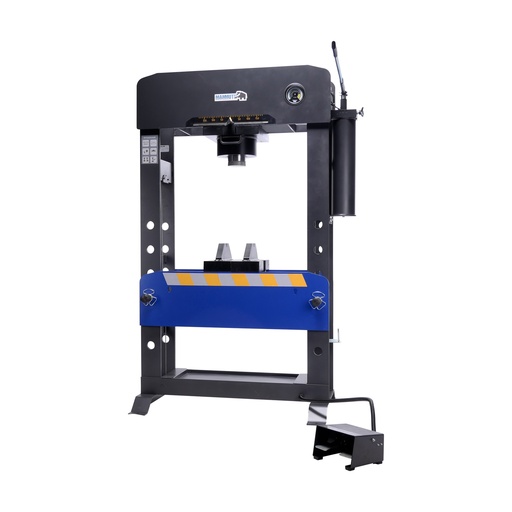

Garage press / bearing press / frame press

This Mammuth electric press is very suitable for mounting bearings, pressing in shafts and bolts, bending pipes and other pressing work that requires a lot of power. The is press is of high quality and consists of a heavy, robust, fully welded frame. This makes the press very solid and stable.
The work bed is easy to adjust in height using the winch and handle. The cylinder can also be slid from left to right using the same handle.

The press comes standard with a safety grille, foot pedal, emergency stop and two press blocks.

Please note: the press is supplied without CH22 hydraulic oil (29 liters).

Specifications:

• capacity = 100 ton

• cylinder stroke = 300mm

• bed width = 800mm

• bed depth = 342mm

• working range = 945mm

• power = 1,5kW

• voltage = 400V

• speed = 1400rpm

• outgoing press speed = 12 - 24cm/min or 2 - 2,33mm/sec

• incoming press speed = 21 - 23cm/min or 3,5 - 3,83mm/sec

Packed in 2 boxes:
115 x 42 x 216cm 735kg
52,5 x 36,5 x 79cm 85kg

Cleaning fluid / biological degreaser

The Ecowave PWB20S Blueliquid degreaser has been specially developed for cleaning parts in the Ecowave biological parts washers. The environmentally conscious liquid is biodegradable, does not attack surfaces, contains no hydrocarbons and chlorine and is non-flammable.

The degreaser is used in combination with the Bluetablet. The liquid needs one tablet every 4 to 6 weeks to extend its life and maintain strength. This makes working with the Ecowave biological parts washers environmentally friendly and cost-effective.

• content = 20L

• color = light blue

• no smell

• acidity = 9 - 9,7 pH

• operating temperature = 20 - 45 degrees Celsius (38 degrees is optimal)

Hydraulic crimping tool

- crimping range = 16-400mm^2

- crimping force = 1,55 bar

- crimping type = hexagon

- stroke = 22mm

- crimping dies = 16,25,35,50,70,95,120,150,185,240,300,400mm2

MIG/MAG 350A welding inverter / synergetic inverter / welding machine

This Soldatech powered by HG MIG / MAG welding machine is standard equipped with a carrying platform to attach the gas bottle. This machine makes it possible to carry out various welding processes with ease, including MIG welding and also electrode welding.

The modern IGBT inverter technology ensures that the ML350YHG delivers sustainable performance with more power and a very high duty cycle. The ML350YHG is also equipped with thermal safety as standard, which in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.

Furthermore, the mobile wire feed unit is equipped with a control panel on which welding voltage and current strength, among other things, can be easily adjusted. The power source is also equipped with preprogrammed synergetic programs for welding various materials.

The hot-start/anti-stick function increases the welding current quickly, so that the electrode does not stick to the workpiece during ARC welding.

Ideal for welding stainless steel, carbon steel, low alloy steel and aluminium (without pulse).

Each ML350YHG comes standard including:

• Soldatech MLT36M4 MIG torch with Euro connector and 4m cable

• Workpiece clamp with 3m 35mm² cable

• Standard 13mm Dinse cable coupling

• Gas pipe of 7m with quick coupling

• 5m cable grommet between cable package

• 5-pin 32A plug with 3.5m 4x4mm² cable

• 4x wire drive roll: 2x 0.8 + 1.0 and 2x 1.2 + 1.6

Technical specifications:

• voltage = 400V - 3 phases

• frequency = 50/60Hz

• circuit breaker = 32A B-char


• input power = 16.8kVA
• start-up voltage = 73V
• duty cycle (at 20°C ambient temperature) = 100% - 350A
• duty cycle (at 40°C ambient temperature) = 60% - 350A

• welding current range MIG/MAG = 40 - 350A
• welding current range MMA = 40 - 350A

• weldable welding wire = 0.8 / 1.0 / 1.2 / 1.6

• protection class = IP21S

• dimensions = 1000 x 420 x 1200mm

• weight = 69kg

Swivel caster / castor wheel

• wheel size = 260 x 82mm

• capacity = 110kg

• plate size = 115 x 100mm

• total height = 300mm

• bolt holes core to core = 85 x 72mm

• dimensions bolt hole = 18 x 10mm

• material = massive rubber

Gaszylinder 100% Argon 200bar

Fully refillable and suited as shielding gas for plasma/TIG/MIG and MAG welding.

When buying a gascylinder you are automatically a part of the supergas exchange system. Once you are in the exchange system you can exchange your empty gascylinder for a full cylinder all across the country. For all exchange points, visit www.supergas.nl

Thanks to the supergas exchange system you are no longer dependent on one gas supplier and you are no longer attached to rental costs or deposit. The cylinder becomes entirely your property, without inspection or maintenance costs.

Do you have a cylinder of your property? Then it is possible to get into the exchange system. Beware: You have to pay the entry costs once. For the conditions visit www.supergas.nl or ask us for more information.

The cylinder prices do not include the filling.

Gascylinders und Füllungen können nur persönlich abgeholt werden!

Hydraulic crimping tool

This tool is a professional tool for crimping copper and aluminium lugs in different types from 10mm2 till 300mm2.

- crimping range = 16-300mm2
- crimping force = 100kn
- stroke = 22mm

Including crimping profiles:
16,25,35,50,70,95,120,150,185,240,300mm2

MIG/MAG 500A welding inverter / synergetic inverter / welding machine

This Soldatech powered by HG MIG / MAG welding machine can be set both synergistically and manually, equipped as standard with a solid trolley that can easily hold a 50L bottle. This synergetic machine makes it possible to perform various welding processes including MIG welding and also electrode welding with ease.

The modern IGBT inverter technology ensures that the ML500YHG delivers sustainable performance with more power and a very high duty cycle. The ML500YHG is also standard equipped with a powerful water cooler that, in combination with a built-in fan, prevents overheating and ensures high-quality welding performance is guaranteed for a long time.

The mobile wire feeder unit is also equipped with a control panel on which the welding voltage and current, among other things, can be easily adjusted. The power source is also equipped with preprogrammed synergetic programs for welding various materials.

Ideal for welding stainless steel, carbon steel, low alloy steel and aluminium (without pulse).

Each ML500YHG comes standard with:

• Water-cooled Soldatech MLT501M4 MIG torch

• Welding ground clamp with 3m 50mm² cable

• European dinse couplers 13mm

• Gas line including quick coupling 12m

• Intermediate connection bundle 5m

• 5-pin 32A plug with 3m 4x4mm² cable

• 4x wire feed roll: 2x 0.8 + 1.0 and 2x 1.2V + 1.6V

Technical specifications:

• voltage = 400V - 3 phase

• frequency = 50/60Hz

• circuit breaker = 32A B-char

• input power = 27.5kVA

• no load voltage = 73V

• duty cycle (at 20°C ambient temperature) = 100% - 500A

• duty cycle (at 40°C ambient temperature) = 60% - 500A


• welding current range MIG/MAG = 40 - 500A

• welding current range MMA = 40 - 490A

• weldable welding wire = 0.8 / 1.0 / 1.2 / 1.6mm

• cooling unit content = 6L

• protection class = IP21S

• dimensions = 1133 x 498 x 1508mm

• weight = 112kg

This engine leveler is specifically designed for engine cranes or hoists to balance a load during lifting.

Adjust the load's center of gravity by turning the handle.

• capacity = 680kg

Clutch aligning set

This universal centering set is suitable for very accurate and simple centering of the clutch plate on vehicles with top bearing.

Content:

• 1x centering mandrel with screw thread

• 8x adapter in sizes: 11 x 18mm, 12 x 18mm, 15 x 18mm, 17 x 18mm, 19 x 18mm, 20 x 18mm, 21 x 18mm, 25 x 18mm

• 1x conical adapter for larger sizes

Finishing Panel

This lighting finish panel serves as a cover panel for the BG03LED. The cover panel can be combined with other modules from the Expert series and is part of the following modules:

• BGMODD, BGMODI, BGMODJ


Gaszylinder 100% Argon 200bar

Fully refillable and suited as shielding gas for plasma/TIG/MIG and MAG welding.

When buying a gascylinder you are automatically a part of the supergas exchange system. Once you are in the exchange system you can exchange your empty gascylinder for a full cylinder all across the country. For all exchange points, visit www.supergas.nl

Thanks to the supergas exchange system you are no longer dependent on one gas supplier and you are no longer attached to rental costs or deposit. The cylinder becomes entirely your property, without inspection or maintenance costs.

Do you have a cylinder of your property? Then it is possible to get into the exchange system. Beware: You have to pay the entry costs once. For the conditions visit www.supergas.nl or ask us for more information.

The cylinder prices do not include the filling.

Gascylinders und Füllungen können nur persönlich abgeholt werden!

Wire basket

Metal Wire Basket to be used on the following tool walls from the expert series and workbenches:

• BG62BP
• BG62BPS
• BG75BP
• WBG01
• WBG02
• WBG03

Roller seat shop cart / workshop stool / garage seat / mechanic stool

This professional mobile tool stool is adjustable in height and is equipped with a very comfortable seat.
The lightweight workshop stool is 360 degrees rotatable and contains 4 sturdy swivel wheels, 2 of which have brakes.
The 4 trays at the bottom provide storage space for tools and more. The stool can be extended on both sides with optional cup holders. These are not included but are available from us.

- retracted (minimal) height = 550mm
- extended (maximal) height = 660mm
- seat size = 500 x 390mm
- diameter swivel wheels = 100mm

Tool cabinet / workshop cabinet / drawer cabinet

This base cabinet consists of five solid drawers that fully extend and are fitted with ball-bearing rails. All drawers can be locked centrally, thanks to the cylinder lock. The bottom frame is equipped with adjustable feet, so that the cabinet can easily be placed level. The base cabinet can be combined with other modules from the Expert series and is part of the following modules:

• BGMOD1 to BGMOD4
• BGMODA and BGMODF

Technical specifications:

• drawer 1 to 5: 540 x 410 x 125mm


Hydraulic cylinder

It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.

- output = 200 ton
- stroke = 50mm
- effective area = 224,2cm^2
- oil capacity = 1,402 L
- height of product = 156mm
- extended height = 206mm
- outside diameter = 237mm
- bore diameter = 189mm
- plunger diameter = 169mm
- thread for input oil port (ZG) = 3/8" - 19
- saddle protrusion form plgr = 2mm
- saddle is removable
- max. pressure = 700bar

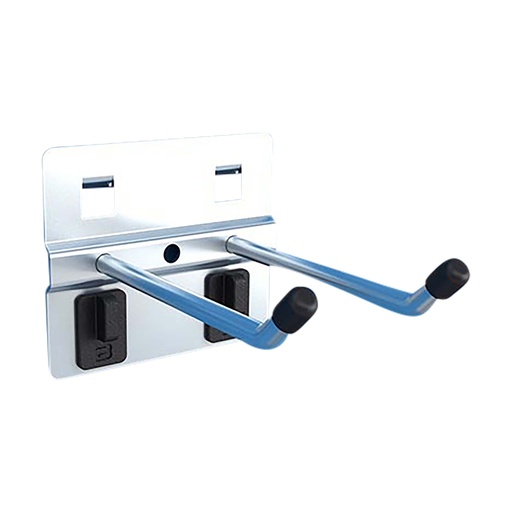

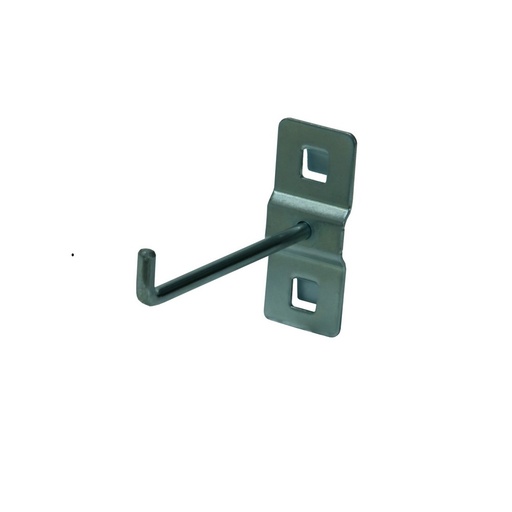

Workbench hook / tool hook

This tool hook is ideal for hanging tools in an organized manner, to be used on the following tool walls from the expert series and workbenches:

• BG62BP
• BG62BPS
• BG75BP
• WBG01
• WBG02
• WBG03
