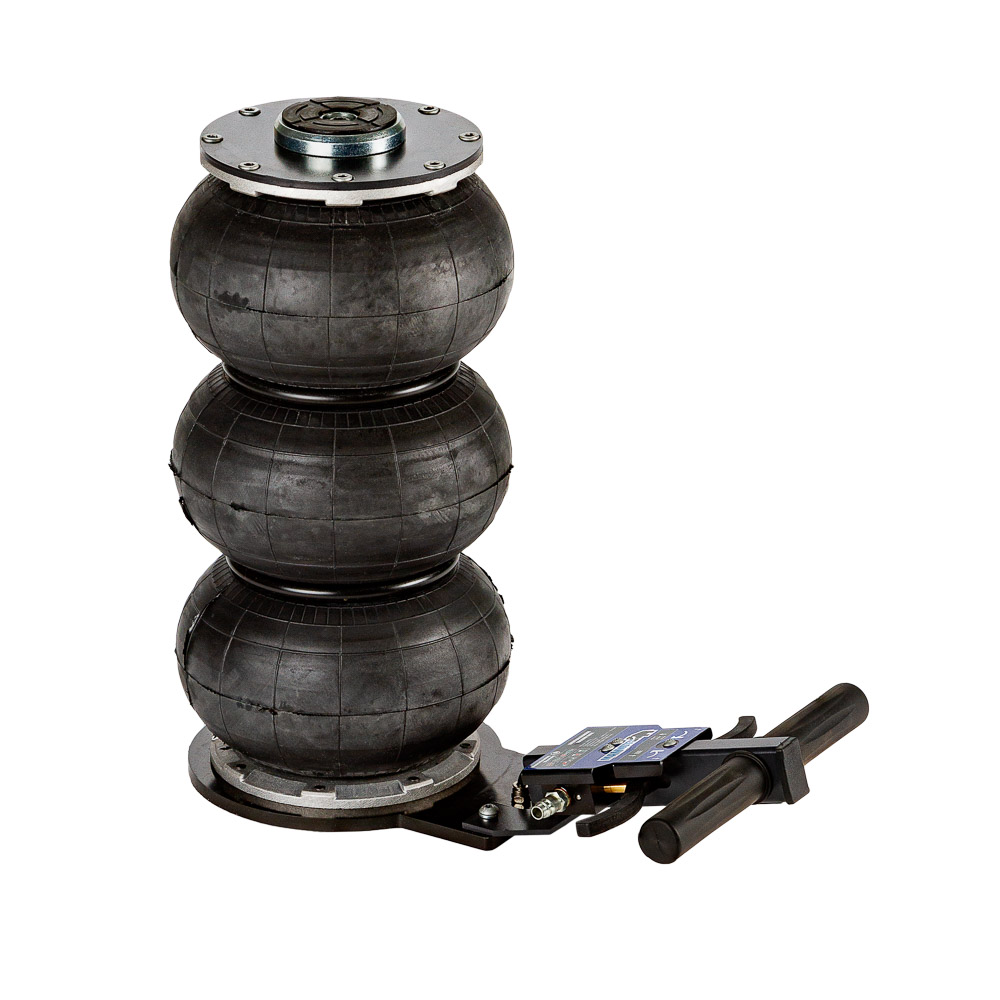

This series of Mammuth air bellow jacks are increasingly being used instead of the standard pneumatic jack. The air bellow jack lifts faster, is more manageable and is easy to store upright.
Thanks to its sophisticated design, this pneumatic balloon jack has te following useful features:
3 sturdy bellows with a wall thickness of 7 - 7,5mm
weighs only 16kg, but is still very solid
safety overload valve
guide ring in cylinder for smooth working and durability
ergonomic automatic switch, ensures safe and easy operation
space saving
ideal for the workplace, but also on the road
Specifications:
capacity = 2T
minimum lifting height = 200mm
maximum lifting height without adapter = 395mm
maximum lifting height with adapter = 555mm
lifting height = 295mm
adapter = 60mm
working pressure = 7 - 10 bar
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 1.200 mm |
| Produkt Breite | 225 mm |
| Produkt Höhe | 135 mm |
| Produktgewicht | 16,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 515 mm |
| Breite des Pakets | 280 mm |
| Paket Höhe | 215 mm |
| Gewicht des Pakets | 17,00 Kg |
