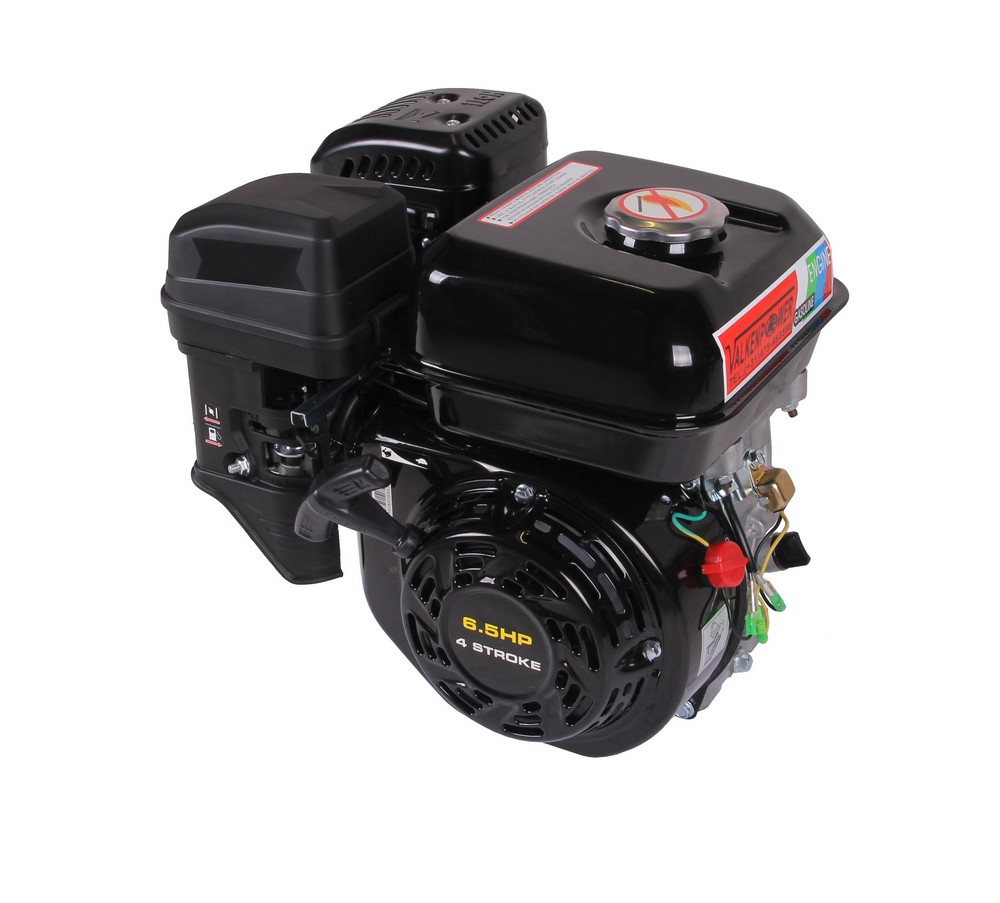

Benzin Motor hand start
This gasoline engine is used as a replacement for engines from wsater pumps, industrial and agricultural machinery. The engine starts quickly and is provided with an air filter.
Technical specifications:
engine = OHV petrol engine with horizontal output shaft
type = 4-stroke / 1-cylinder
bore and stroke = 68 x 54mm
shaft size = 19,05mm
wedge width = 5mm
angle of inclination cylinder = 25 degrees
displacement = 196cm³
max. power = 4,77kW / 4000rpm
max. torque = 13,2Nm / 2500rpm
compression ratio = 8,5 : 1
oil capacity = 0,6L (SAE10W30)
tank capacity = 3,8L (unleaded 95/98)
air cooled
ignition = TCI
PTO rotation = left / anticlockwise
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 370 mm |
| Produkt Breite | 320 mm |
| Produkt Höhe | 335 mm |
| Produktgewicht | 14,9 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 400 mm |
| Breite des Pakets | 330 mm |
| Paket Höhe | 370 mm |
| Gewicht des Pakets | 16,50 Kg |
