Rundbiegemaschine

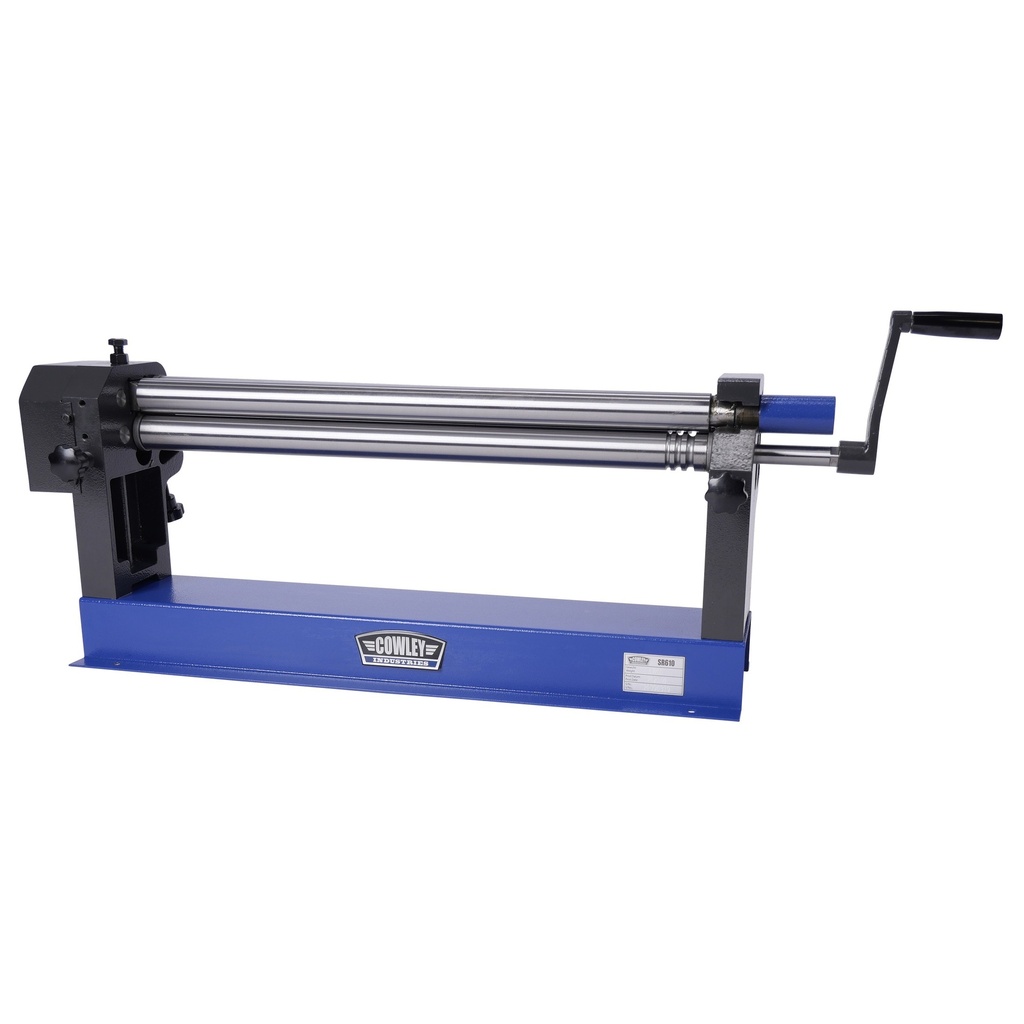

This Cowley slip roll machine is ideal for rolling plate material in various shapes such as pipes and tubes. The machine can be operated with th handle on the side and the upper roll is easy to remove so that the sheet metal can be removed.
The rollers are also individually adjustable and equipped with wire grooves.
max. plate thickness = 0,8mm
max. width plate = 610mm
diameter of the roll = 38mm
Note: This slip roll machine is delivered without stand! The product code of this stand is SR610S and is also available.
Produkt Abmessungen: | |
---|---|
Produkt Länge | 930 mm |
Produkt Breite | 220 mm |
Produkt Höhe | 330 mm |
Produktgewicht | 37,0 Kg |
Abmessungen der Verpackung: | |
Paket Länge | 950 mm |
Breite des Pakets | 270 mm |
Paket Höhe | 380 mm |
Gewicht des Pakets | 40,00 Kg |
