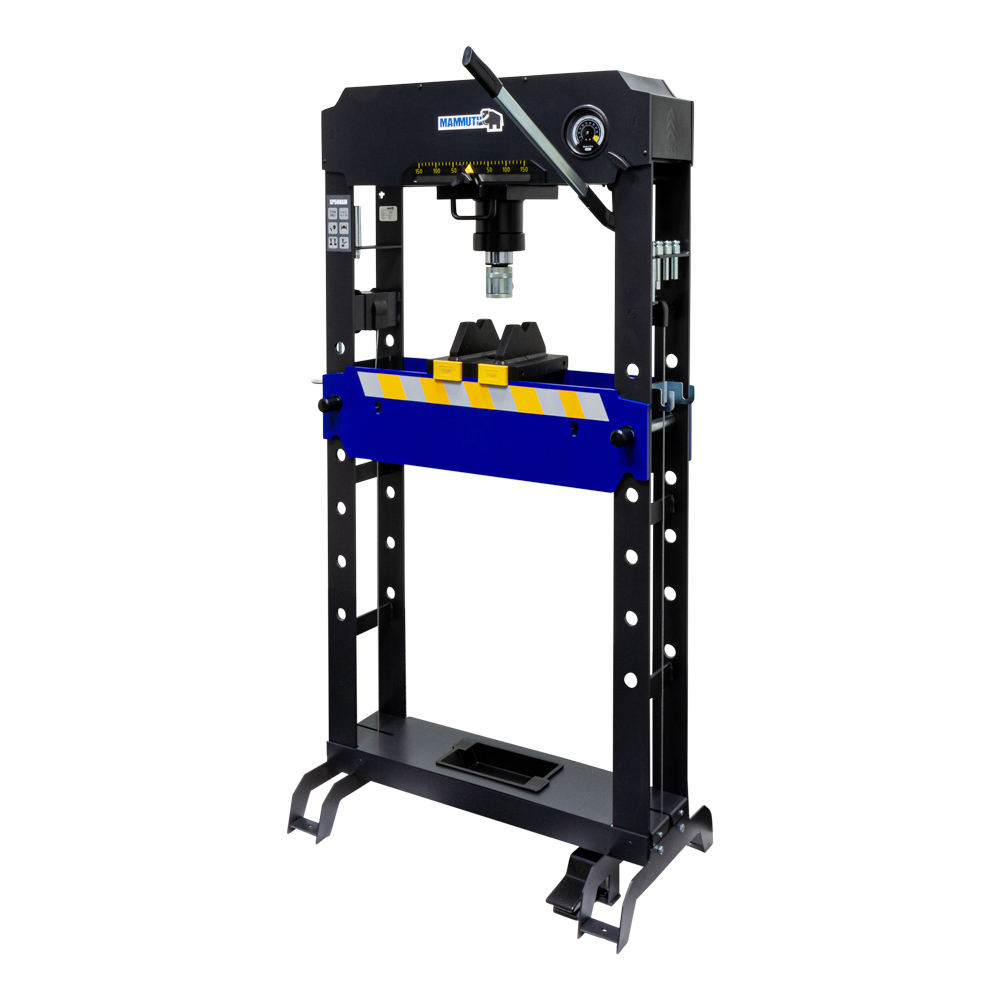

Press / garage press / bearing press
This Mammuth workshop press is of high quality and very stable thanks to the fully welded heavy frame. The working bed is easily manually in height adjustable using the hand winch. The press can be operated with the handle and pump (has two speeds) and with a foot pedal on compressed air. The hydraulic cylinder is movable in width (bearing) and is equipped with a height adjustable, 7,5cm long spindle. The pressure is read via the integrated pressure gauge.
Comes with 2 heavy press blocks, 8 press pins and a parts tray.
Specifications:
capacity = 50 ton
cylinder stroke = 220mm
diameter cylinder = 66mm
bed width = 750mm
bed depth = 249mm
working range = 780mm
screw thread length = 75mm
operating pressure = 8 - 12 bar
air connection = 1/4" NPT external thread
Produkt Abmessungen: | |
---|---|
Produkt Länge | 930 mm |
Produkt Breite | 535 mm |
Produkt Höhe | 1.900 mm |
Produktgewicht | 250,0 Kg |
Abmessungen der Verpackung: | |
Paket Länge | 1.000 mm |
Breite des Pakets | 1.860 mm |
Paket Höhe | 420 mm |
Gewicht des Pakets | 288,00 Kg |
Pakettyp: | |
1 Stück |
