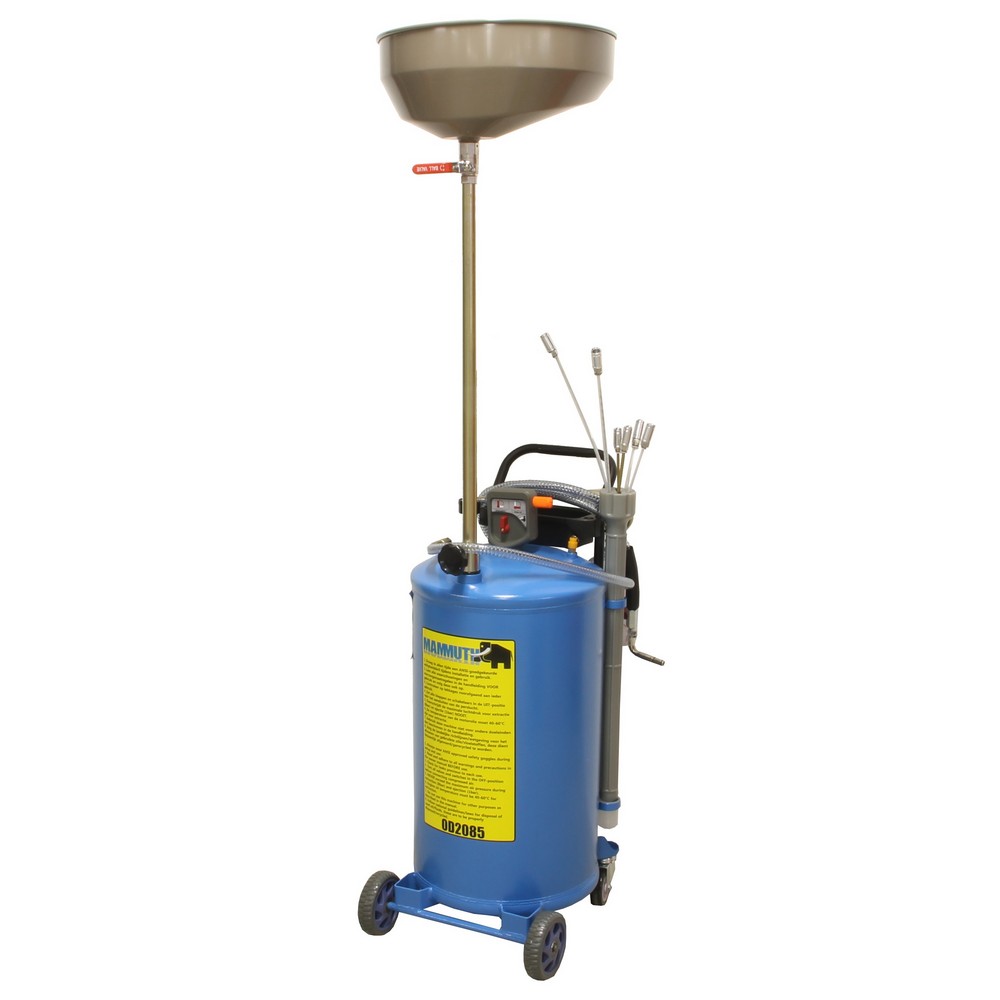

Altölauffangbehalter
- provided with strainer
- air inlet pressure = 6 ~ 8bar / 87 ~ 116psi
- ejection pressure = 0,7 ~ 1bar / 10 ~ 15psi
- air consumption = 150L/min
- vacuum degree = 0 ~ -1bar / -15psi
- tank capacity = 65L
- oil tray volume = 16L
- working temperature = 40 ~ 60degrees celcius
Suction probes:
- suction probes = diam. 5 x L80cm (PCV) = 1,9L/min
- suction probes = diam. 6 x L80cm (PCV) = 3,2L/min
- suction probes = diam. 6 x L70cm (PVC) = 4,2L/min
- suction probes = diam. 8 x L70cm (PVC) = 6,2L/min
- suction probes = diam. 6 x L80cm (PVC) = 3,7L/min
- suction probes = diam. 8 x L80cm (PVC) = 5,2L/min
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 470 mm |
| Produkt Breite | 380 mm |
| Produkt Höhe | 1.630 mm |
| Produktgewicht | 17,4 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 950 mm |
| Breite des Pakets | 475 mm |
| Paket Höhe | 450 mm |
| Gewicht des Pakets | 19,80 Kg |
| Pakettyp: | |
| Pallet | 12 Stück |
