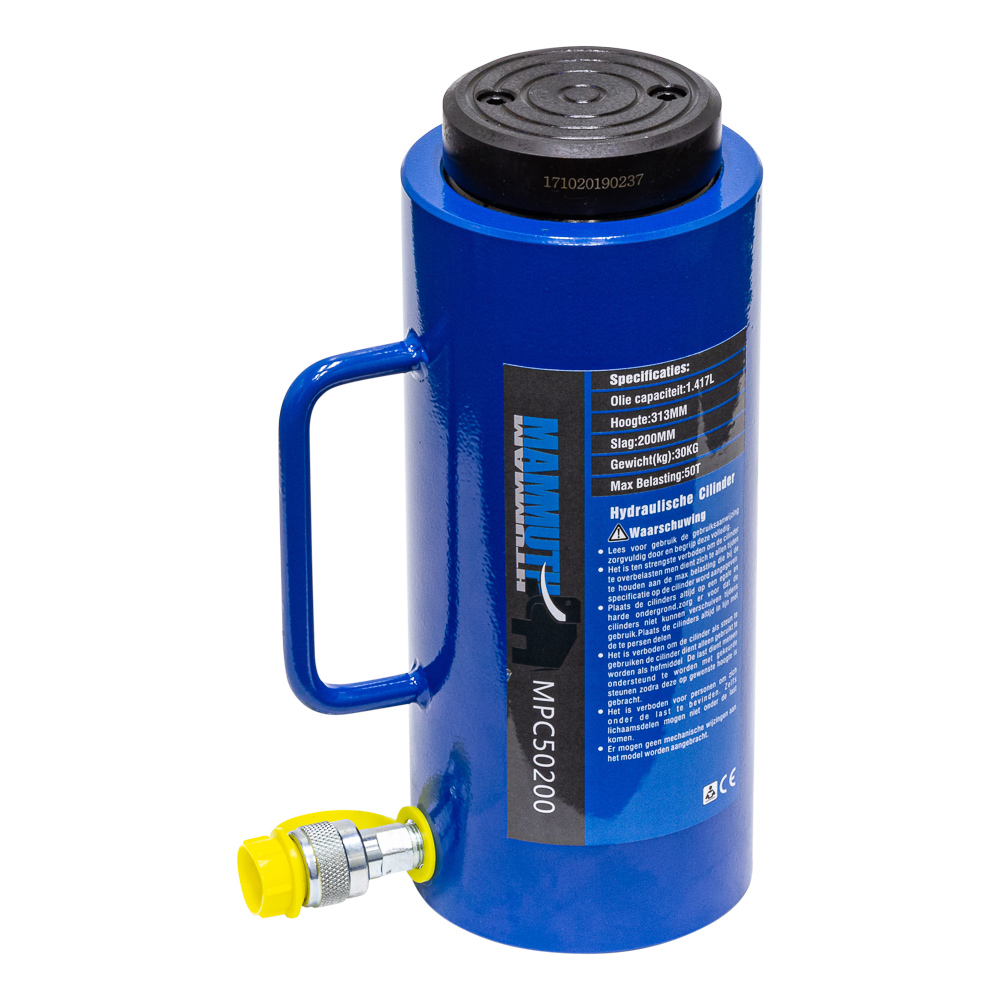

Hydraulikzylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
output = 50 ton
stroke = 200mm
effective area = 70,9cm^2
oil capacity = 1,417 L
height of product = 312mm
extended height = 513mm
outside diameter = 128mm
bore diameter = 95mm
plunger diameter = 85mm
thread for input oil port (ZG) = 3/8" - 24
saddle protrusion form plgr = 26mm
saddle is removable
max. pressure = 700bar
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 205 mm |
| Produkt Breite | 235 mm |
| Produkt Höhe | 320 mm |
| Produktgewicht | 25,5 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 385 mm |
| Breite des Pakets | 190 mm |
| Paket Höhe | 190 mm |
| Gewicht des Pakets | 26,50 Kg |
