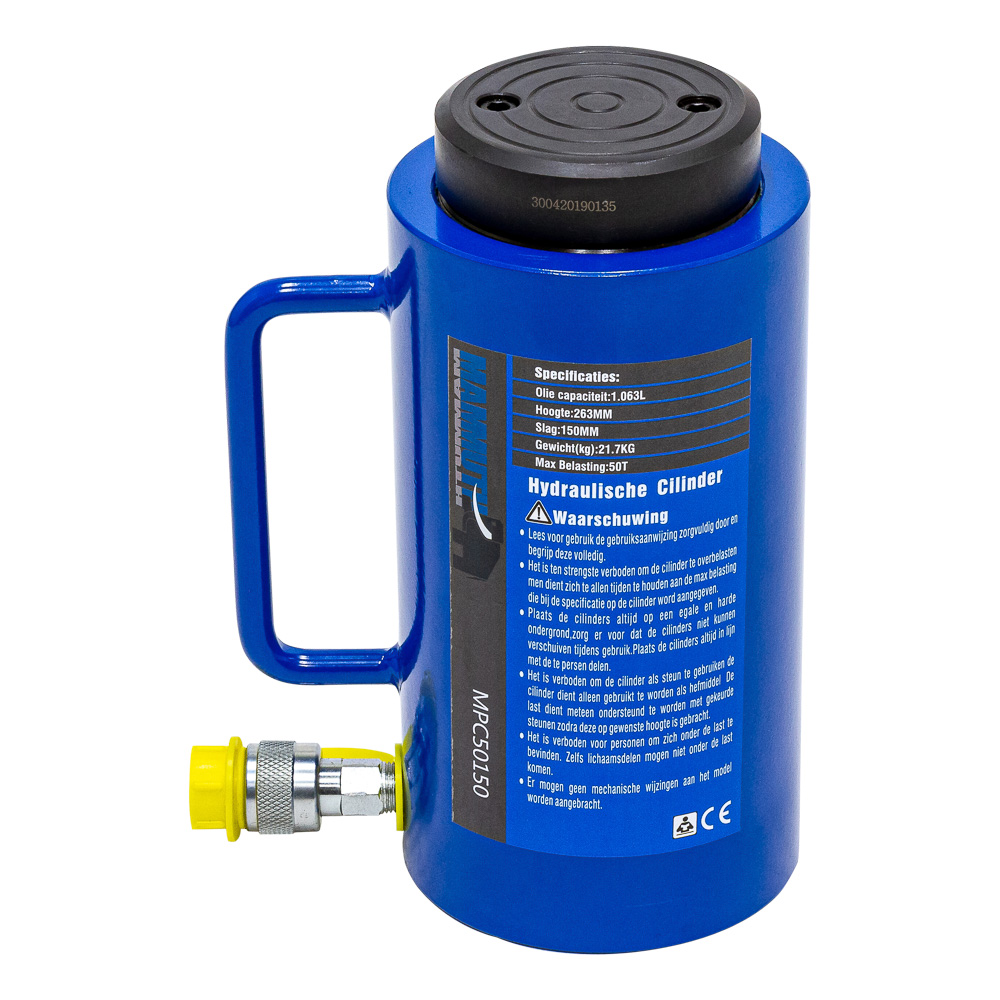

Hydraulikzylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
output = 50 ton
stroke = 150mm
effective area = 70,9cm^2
oil capacity = 1,063 L
height of product = 262mm
extended height = 413mm
outside diameter = 128mm
bore diameter = 95mm
plunger diameter = 85mm
thread for input oil port (ZG) = 3/8" - 24
saddle protrusion form plgr = 26mm
saddle is removable
max. pressure = 700bar
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 190 mm |
| Produkt Breite | 120 mm |
| Produkt Höhe | 265 mm |
| Produktgewicht | 21,6 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 385 mm |
| Breite des Pakets | 185 mm |
| Paket Höhe | 210 mm |
| Gewicht des Pakets | 23,00 Kg |
