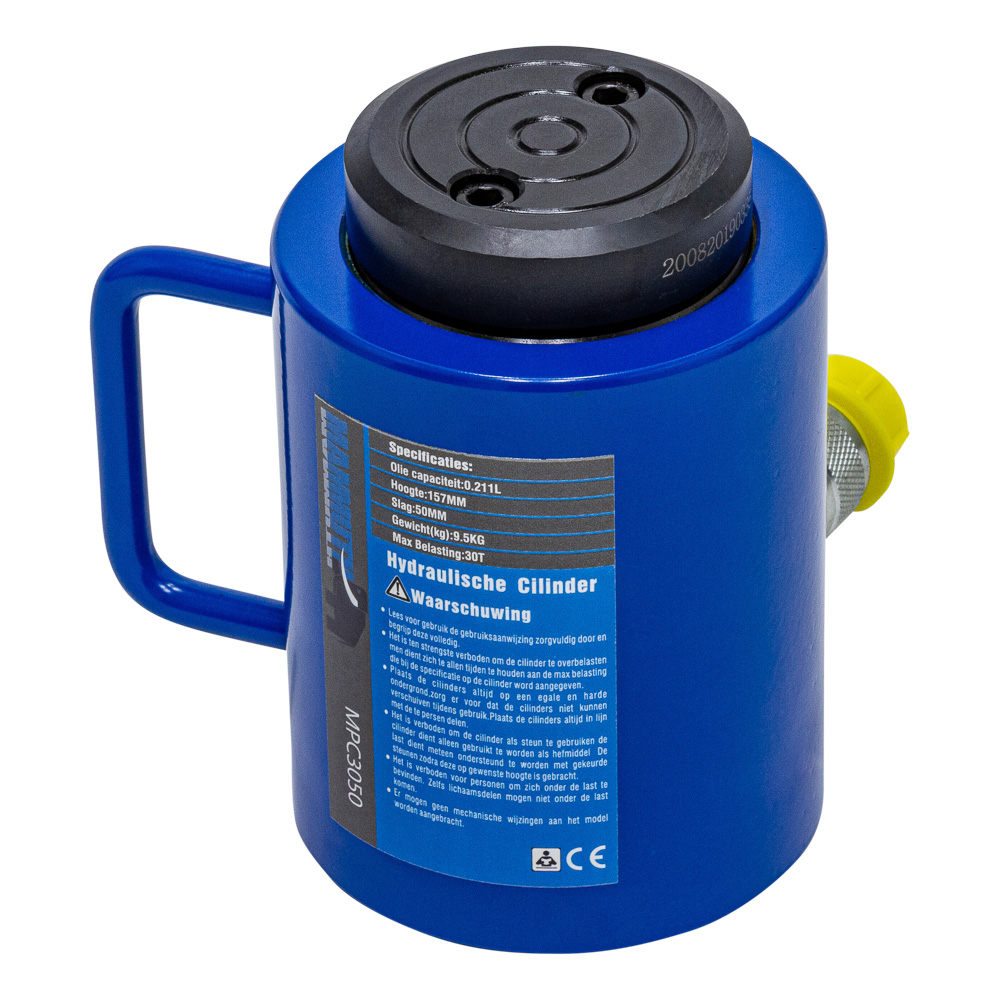

Hydraulikzylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
- output = 30 ton
- stroke = 50mm
- effective area = 44,2cm^2
- oil capacity = 0,221 L
- height of product = 157mm
- extended height = 207mm
- outside diameter = 107mm
- bore diameter = 75mm
- plunger diameter = 65mm
- thread for input oil port (ZG) = 3/8" - 23
- saddle protrusion form plgr = 22mm
- saddle is removable
- max. pressure = 700bar
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 170 mm |
| Produkt Breite | 100 mm |
| Produkt Höhe | 160 mm |
| Produktgewicht | 12,5 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 280 mm |
| Breite des Pakets | 240 mm |
| Paket Höhe | 215 mm |
| Gewicht des Pakets | 10,00 Kg |
