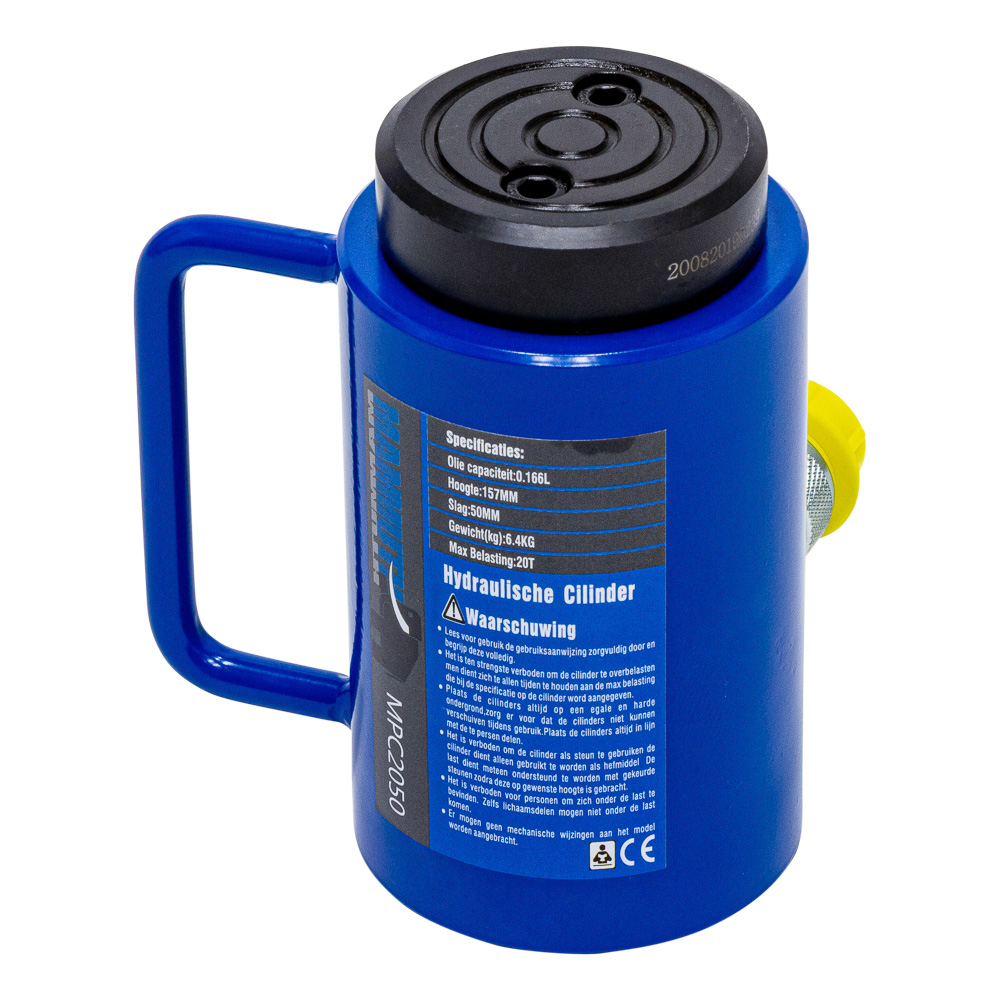

Hydraulikzylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
output = 20 ton
stroke = 50mm
effective area = 26,4cm^2
oil capacity = 0,140 L
height of product = 157mm
extended height = 207mm
outside diameter = 88mm
bore diameter = 65mm
plunger diameter = 58mm
thread for input oil port (ZG) = 3/8" - 19
saddle protrusion form plgr = 20mm
saddle is removable
max. pressure = 700bar
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 155 mm |
| Produkt Breite | 85 mm |
| Produkt Höhe | 210 mm |
| Produktgewicht | 6,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 275 mm |
| Breite des Pakets | 240 mm |
| Paket Höhe | 215 mm |
| Gewicht des Pakets | 7,00 Kg |
