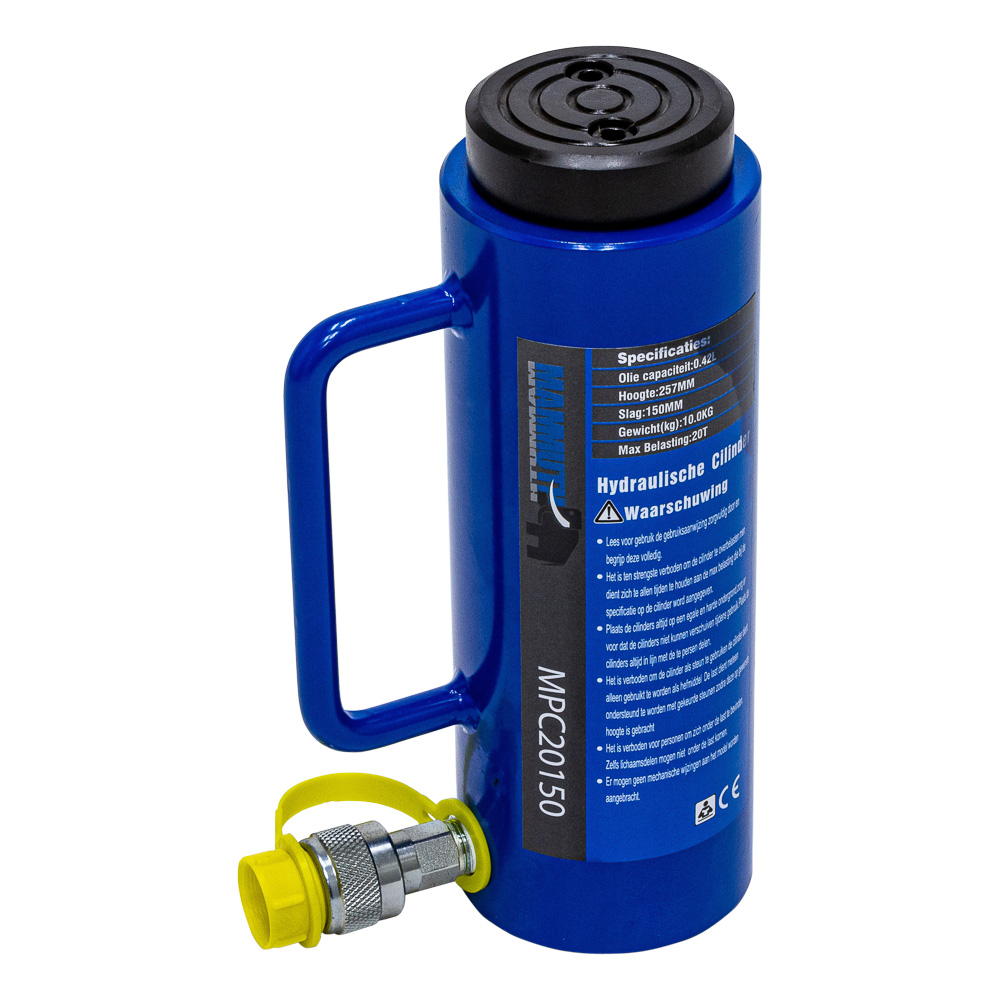

Hydraulikzylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
output = 20 ton
stroke = 150mm
effective area = 33,2cm^2
oil capacity = 0,498 L
height of product = 254mm
extended height = 407mm
outside diameter = 88mm
bore diameter = 65mm
plunger diameter = 55mm
thread for input oil port (ZG) = 3/8" - 23
saddle protrusion form plgr = 21mm
saddle is removable
max. pressure = 700bar
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 330 mm |
| Produkt Breite | 300 mm |
| Produkt Höhe | 407 mm |
| Produktgewicht | 10,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 390 mm |
| Breite des Pakets | 185 mm |
| Paket Höhe | 195 mm |
| Gewicht des Pakets | 11,00 Kg |
