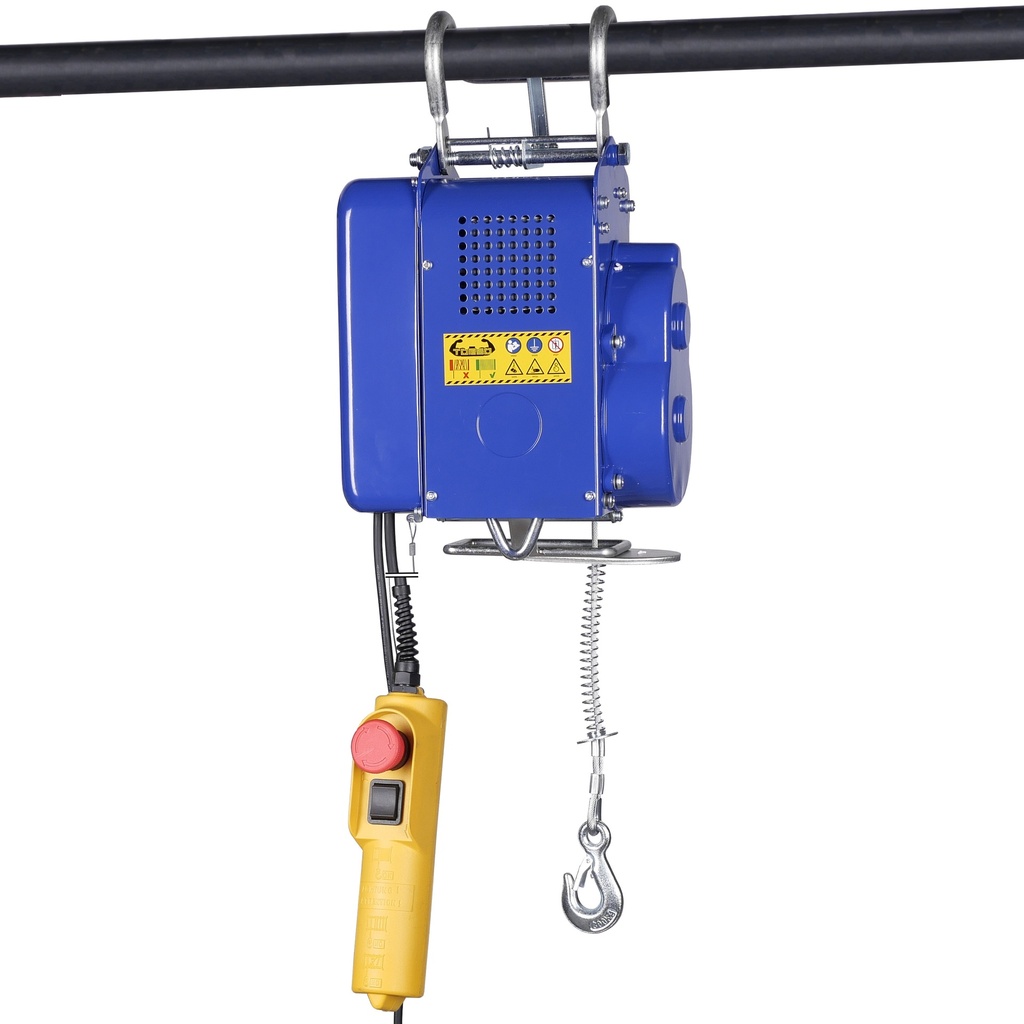

Torso electric winch is the ideal choice for lifting jobs on construction sites, in technical environments and in industrial applications. With a lifting capacity of 600 kg, user-friendly design and maximum safety features, this electric cable winch offers an efficient solution for any job.
Thanks to its compact size, the winch is easy to install and ready for immediate use.
Hoist specifications:
- Versatile use: suitable as an electric construction winch, cart winch or cable winch for various applications.
- Easy installation: light and compact, easy to mount on scaffolding or other anchor points.
- Maximum safety: complies with Machine Directive 2006/42/EC Equipped with emergency stop, integrated load pressure brake and overload protection.
- Ready to use immediately: supplied with mounting bracket,
- Suitable for various applications: ideal for construction projects, technical environments and light industrial work.
Specifications
| Hubkapazität | 300 / 600 kg |
| Spannung | 230V / 50 Hz |
| Hebegeschwindigkeit unter Last | 4 m/min. / 8 m/min. |
| Hubhöhe max. | 9 m / 18 m |
| Kabeldurchmesser | 4.5 mm |
| Eingangsleistung | 1050 W |
| Input current | 4.6 A |
| Seillänge | 12 m |
| Insulation class | B |
| Schutzklasse | IP54 |
| Kabelzugkraft | 1770 N/mm² |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 285 mm |
| Produkt Breite | 235 mm |
| Produkt Höhe | 150 mm |
| Produktgewicht | 21,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 485 mm |
| Breite des Pakets | 360 mm |
| Paket Höhe | 307 mm |
| Gewicht des Pakets | 22,00 Kg |
| Pakettyp: | |
| 15 Stück |
