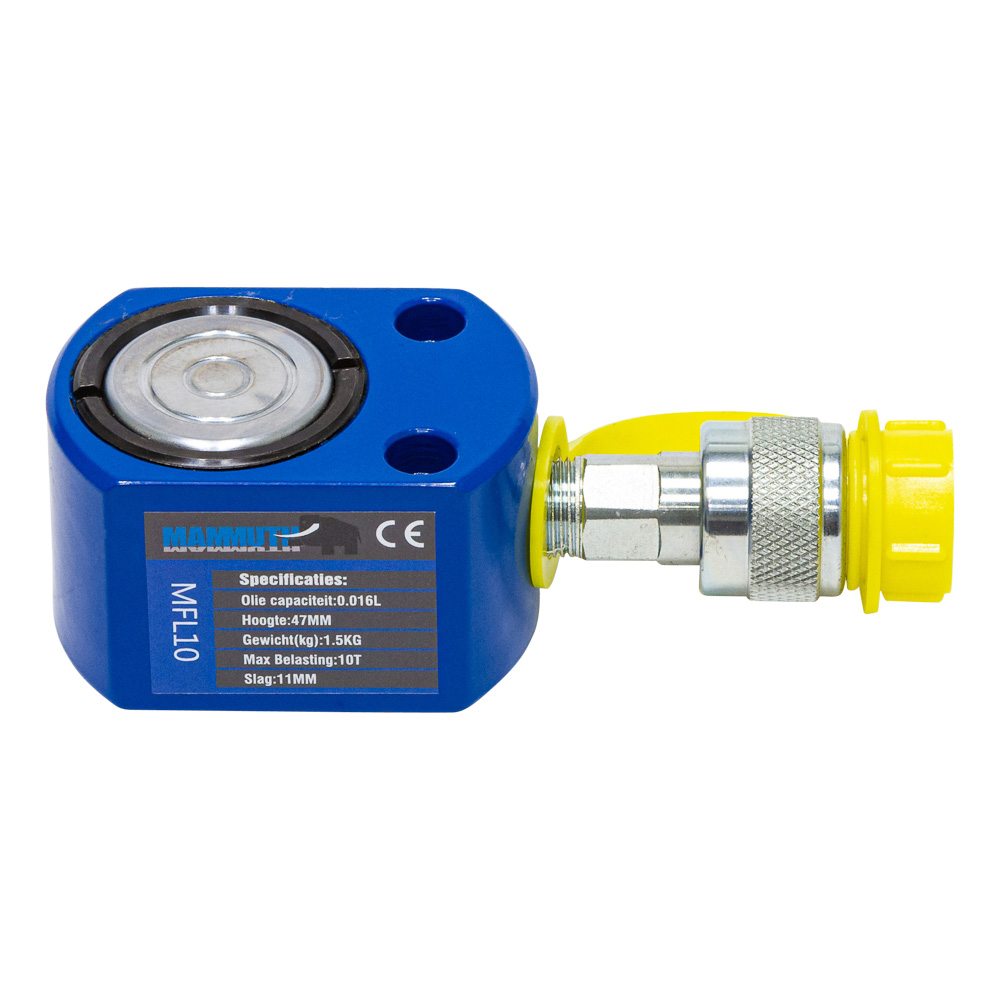

Hydraulikzylinder
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
output = 10 ton
stroke = 11mm
effective area = 11,3cm^2
oil capacity = 0,016 L
height of product = 47mm
extended height = 58mm
outside diameter = 81x56mm
bore diameter = 43mm
plunger diameter = 38mm
thread for oil input = 3/8''-19
saddle protusion form Plgr = 2mm
max. pressure = 700bar
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 145 mm |
| Produkt Breite | 55 mm |
| Produkt Höhe | 47 mm |
| Produktgewicht | 1,5 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 155 mm |
| Breite des Pakets | 65 mm |
| Paket Höhe | 55 mm |
| Gewicht des Pakets | 2,00 Kg |
