splitter / wood press/ log splitter / electric splitter / horizontal splitter / wood splitter electric

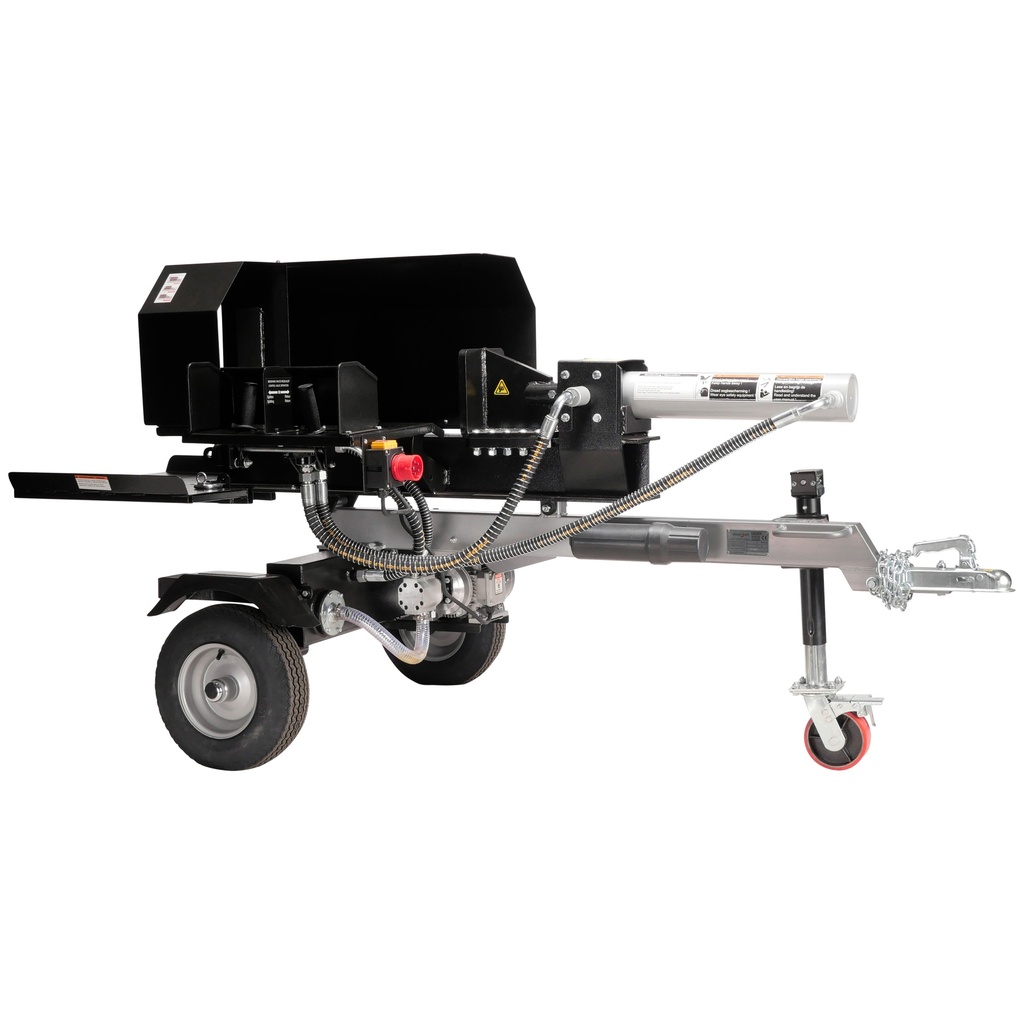

This wood splitter from Woodcraft has an electro-hydraulic drive, making it an economical way to split wood without using fuel.
With a pressing force of 22 tons and a large 43 cm long splitting blade, you can easily split logs up to 50 cm long.
The splitter is very mobile and, thanks to the nose wheel, easy to move and adjust in height.
Thanks to the foldable collection flap, the split wood is collected instead of scattered on the ground.
The hydraulic cylinder is mounted on a central mounting shaft that allows the cylinder to move during splitting, reducing the pressure on the cylinder rod.
This makes it less sensitive to wear and leaks. This product complies with the latest directives 2016/42/EG & Nen standard 609-1/2017.
Please note that this log splitter is for horizontal use only!
Technical specifications:
- Pressure force 22 tons
- Cycle time 11s
- Hydraulic reservoir 14.5L
- Required oil 10L
- Max. wood length 55cm
- Splitting knife 43cm
- Hydraulic cylinder 10cm x 51cm
- Max. pressure 25.7Mpa
- Gear pump 53 L/min, 2-stage
- Max. traction speed 60km
- Wheel size 41cm 4.8x8
- Electric motor 2.2kW, 400V, 2880RPM
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 2.100 mm |
| Produkt Breite | 1.160 mm |
| Produkt Höhe | 1.210 mm |
| Produktgewicht | 256,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 550 mm |
| Breite des Pakets | 2.010 mm |
| Paket Höhe | 825 mm |
| Gewicht des Pakets | 293,00 Kg |
