Schweiß Rollenböcke 1000kg

[LRS1000] Schweiß Rollenböcke 1000kg

Schweißen und schneiden / Schweißmechanisierung / Schweiß Rollenbocken Marke: Cowley Cowley

Produkt-Code: LRS1000

EAN: 8720028045174

Verfügbarkeit: Verfügbar

https://www.valkenpower.com/web/image/product.template/52884/image_1920?unique=1441559

€ 1.095,00 1095.0 EUR € 1.095,00

€ 1.095,00

Not Available For Sale

Diese Kombination existiert nicht.

Schnelle Lieferung aus großem Lagerbestand.
Sichere Bezahlung über verschiedene Zahlungsmöglichkeiten.
14-tägiges Rückgaberecht.

Rollenbockanlagen

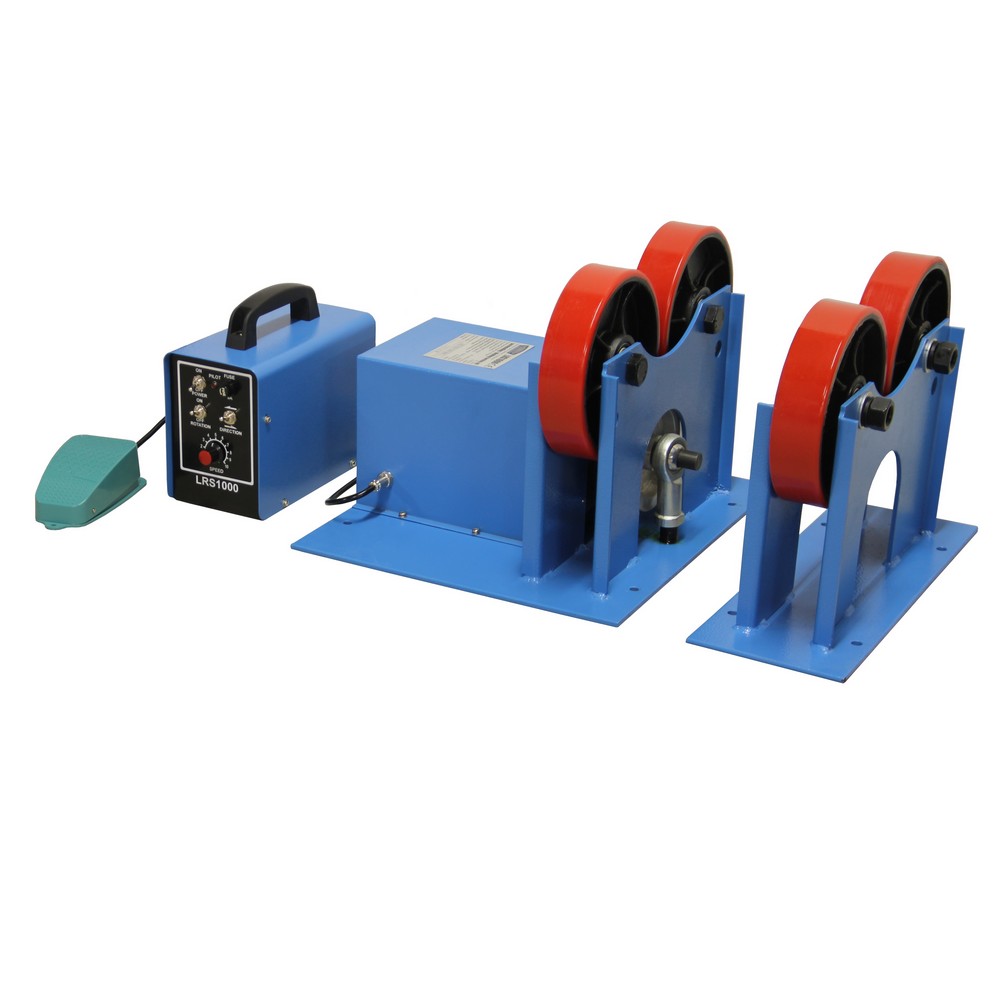

This Cowley welding turning roll is used for placing and rotating round workpieces, such as pipes, under a welding head. By setting the desired rotational speed you can weld extremely precisely. Therefore the machine contributes to the improvement of the safety, precision, effectiveness and speed of the welding work.
With the help of the control box it is easy to set the rotation on/off, rotation direction left/right and rotation speed. Finally, the machine is operated with the foot pedal.

Technical specifications:

  • power supply = 230V

  • frequency = 50/60 Hz

  • power = 230W

  • load capacity = 1000kg

  • rotation speed = 80 - 1600mm/min

  • diameter range = 20 - 800mm

  • diameter rollers = 200mm

  • width rollers = 50mm

  • measurements control box = 255 x 125 x 285mm

  • measurements machine = 550 x 450 x 315mm

Produkt Abmessungen:
Produkt Länge 550 mm
Produkt Breite 450 mm
Produkt Höhe 315 mm
Produktgewicht 53,0 Kg
Abmessungen der Verpackung:
Paket Länge 665 mm
Breite des Pakets 560 mm
Paket Höhe 475 mm
Gewicht des Pakets 60,00 Kg
