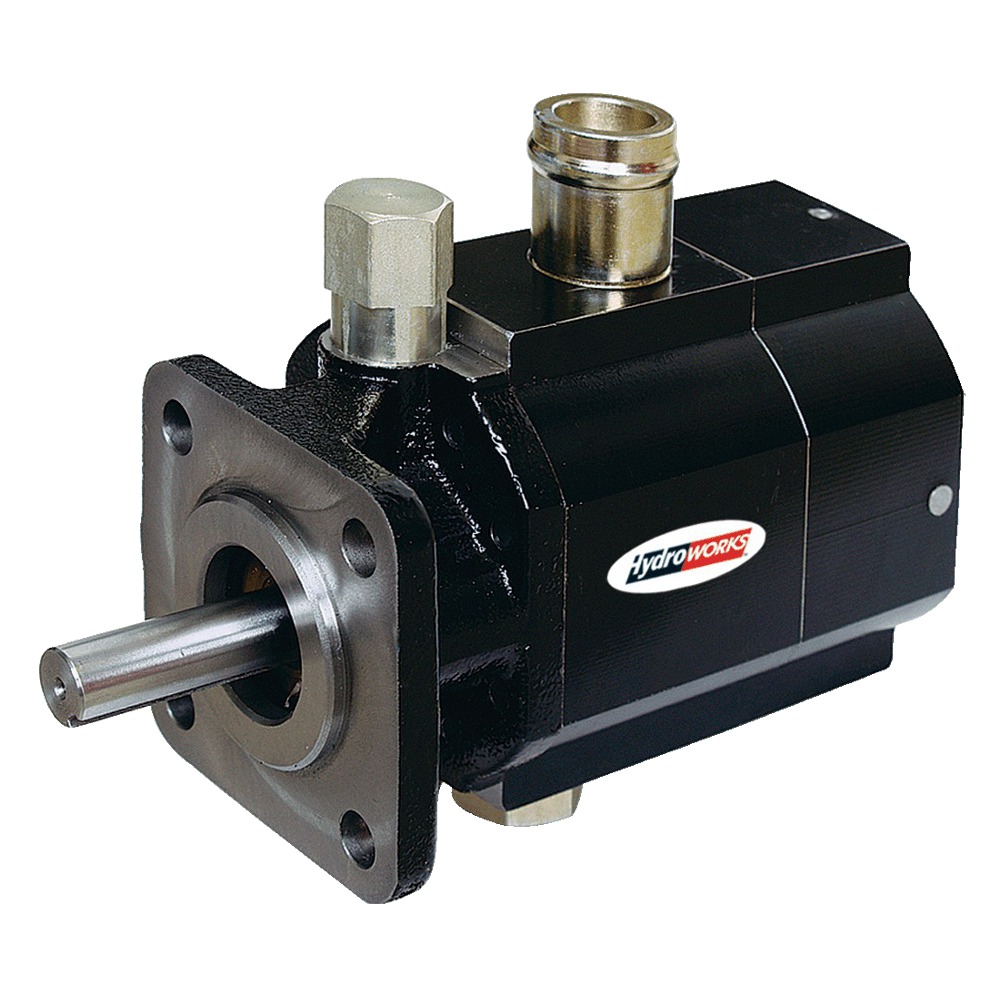

Zahnradpumpe / Hydrauliekpumpe
aluminum contstruction
large displacement at low pressure, small displacement at high pressure
max. pressure is 200bar
range is 500 - 3600RPM
excellent for log splitters, pressers and trash compactors
- gear displacement:
low pressure = 60LPM
high pressure = 15LPM
- required power = 11PK
- shaft = 12,5mm
- inlet = 1'' NPT
- outlet = 1/2'' NPT
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 0 mm |
| Produkt Breite | 0 mm |
| Produkt Höhe | 0 mm |
| Produktgewicht | 4,3 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 0 mm |
| Breite des Pakets | 0 mm |
| Paket Höhe | 0 mm |
| Gewicht des Pakets | 5,00 Kg |
