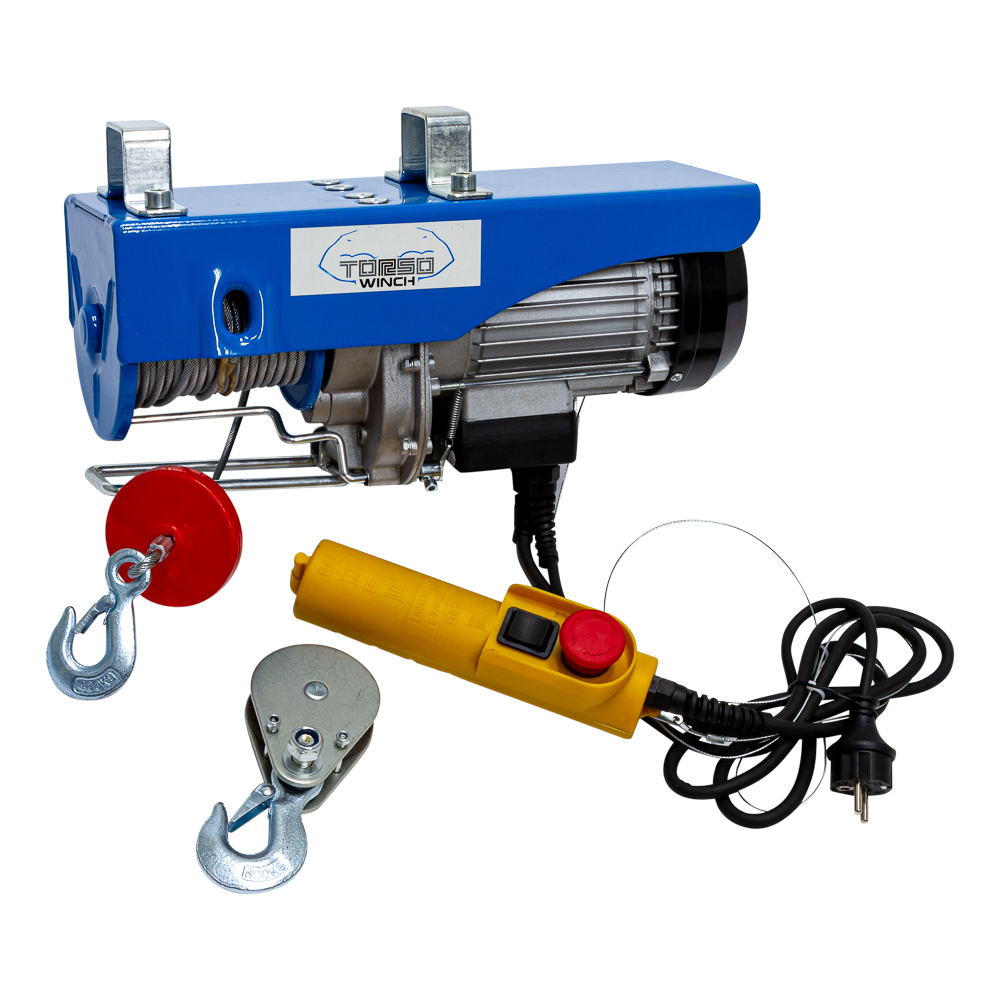

Electric hoist / hoisting winch / electric winch
This lightweight electric hoist is ideal for all kinds of lifting work in workshops, garages and warehouses. With the brackets the winch can easily be attached to a swivel arm for example.
load capacity = 400kg / 800kg
lifting height = 18m / 9m
lifting speed = 8mpm / 4mpm
cable length = 18m
cable diameter = 5,1mm
length control cable = 1,5m
cable break resistance = 2000kg
service = S3 20%-10min
voltage = 230V - 50Hz
power = 1350W
bolt to bolt length = 190mm
bolt to bolt width = 100mm
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 0 mm |
| Produkt Breite | 0 mm |
| Produkt Höhe | 0 mm |
| Produktgewicht | 20,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 500 mm |
| Breite des Pakets | 160 mm |
| Paket Höhe | 260 mm |
| Gewicht des Pakets | 20,50 Kg |
