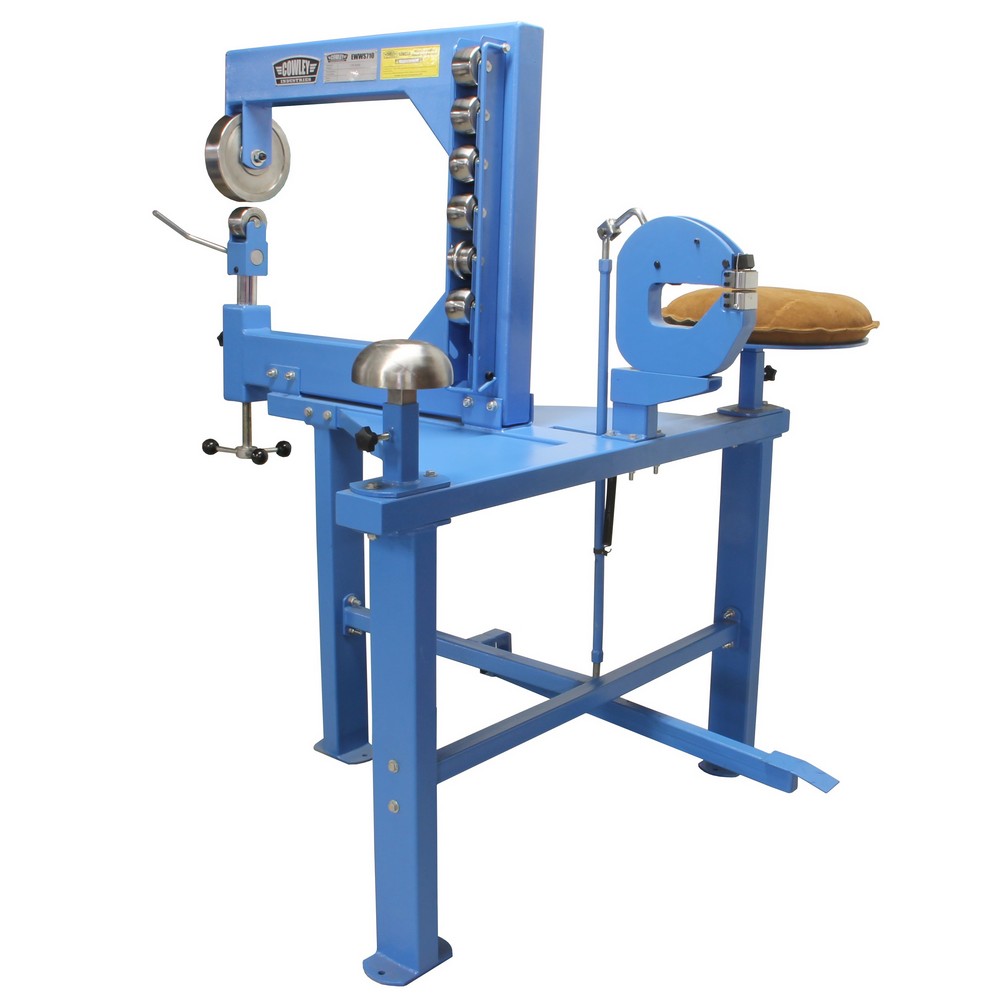

This multifunctional sheet metal work station has 4 different parts. First of all, the station is equipped with an english wheel with a throat depth of 710mm and 7 different shaping rolls.
Furthermore, the station has a professional stretch and shrink machine with foot pedal. The throat depth of this machine is 205mm.
Finally, the station is equipped with two parts to knock sheet metal into different shapes with a hammer. A round dolly and a leather bag, which is delivered empty. This bag can be filled with silver sand or dune sand for example.
This sheet metal work station is suitable for steel sheets up to 1,5mm thick and aluminum sheets up to 1,9mm thick and is used for working on metal sheets (of for example oldtimers, cars and tanks).
Specifications english wheel:
- throat depth = 710mm / 28"
- diameter upper wheel = 203,2mm / 8"
Shaping rolls:
- profile diameter 6,35mm / 1/4"
- radius 50,8mm / 2"
- radius 76,2mm / 3"
- radius 101,6mm / 4"
- radius 152,4mm / 6"
- radius 203,2mm / 8"
- radius 304,8mm / 12"
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 1.600 mm |
| Produkt Breite | 1.360 mm |
| Produkt Höhe | 1.570 mm |
| Produktgewicht | 179,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 1.260 mm |
| Breite des Pakets | 1.010 mm |
| Paket Höhe | 425 mm |
| Gewicht des Pakets | 206,00 Kg |
