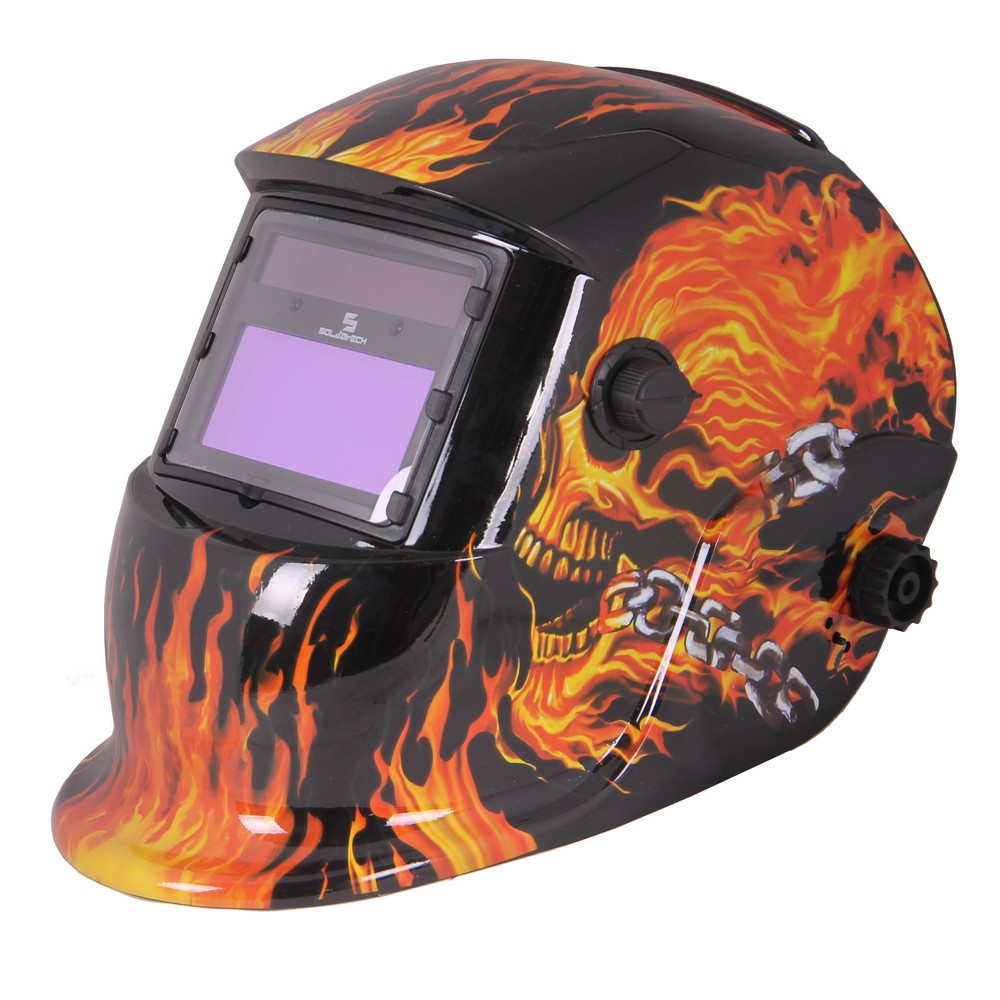

Automatik Schweisshelm
This professional welding helmet is suitable for all welding jobs. The welding helmet is provided with a grinding function, so that the helmet can also be used te grind without the window turning dark.
The welding helmet is also provided with a low volume battery alarm. This alarm indicates when the battery is low.
Further, the welding helmet is equipped with a test function. Using this safety feature allows you to test whether the viewing window actually turns dark.
This will prevent you from experiencing unexpected burden of bright light during welding, because the viewing window is not turning dark.
Suitable for:
- TIG welding
- MIG CO2 welding
- ARC welding
- grinding
- plasma cutting
Comes with Dutch instructions including EG-declaration and standard.
- 89/686/EEC
- 89/336/EEC
Including plastic interior and exterior windows.
Specifications
| Fire Skull | |
| Optical class | 1/1/1/3 |
| Viewing area | 98 x 48mm |
| Kassettenformat | 110 x 90 x 9mm |
| Head strap | with sweat strap |
| Arc sensor | 2 |
| Light state | DIN 4 |
| Dunkler Zustand | DIN 9 ~ 13 |
| Strom ein/aus | automatisch an/aus |
| Sensitivity control | low-high by infinitely dial knob |
| Schutz (UV/IR) | DIN 16 |
| Schaltzeit (hell bis dunkel) | 1/25000 sec. |
| TIG mit niedriger Amperezahl | 5amps |
| Drehknopf für die Farbsteuerung | outside, variable |
| Stromversorgung | 2x CR2032 lithium battery |
| Verzögerungszeit (dunkel zu hell) | 0.1 - 1.0s |
| Temperatur bei der Lagerung | -20°C ~ 70°C |
| Betriebstemperatur | -5°C ~ 55°C |
| MMA-Schweißanwendungen | E-Hand |
| TIG-Schweißanwendungen | GTAW-DC / GTAW-AC / GTAW-P DC / GTAW-P AC |
| MIG-Schweißanwendungen | GMAW (MIG/MAG) / GMAW-P |
| Schneid- und Schweißanwendungen | PAC / CAC-A |
| Weitere Schweißanwendungen | PAW |
| Schleifen | Ja |
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 335 mm |
| Produkt Breite | 220 mm |
| Produkt Höhe | 210 mm |
| Produktgewicht | 0,48 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 230 mm |
| Breite des Pakets | 230 mm |
| Paket Höhe | 340 mm |
| Gewicht des Pakets | 0,79 Kg |
| Pakettyp: | |
| Overdoos | 6 Stück |
