Motorwinde / Seilhebezug

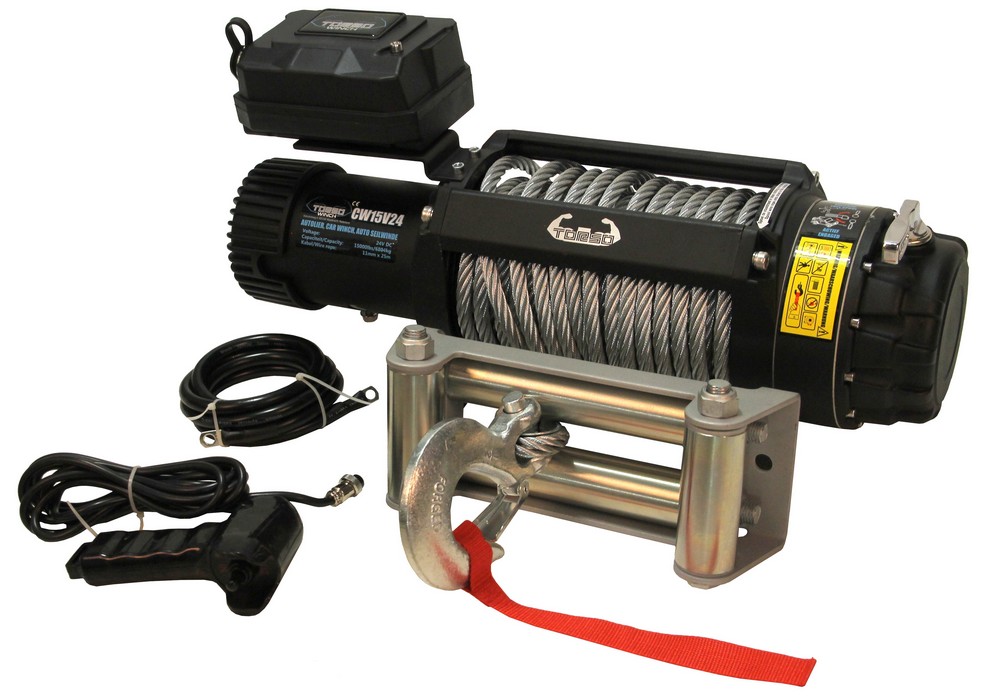

Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:
- 4way fair load roller, for excellent cable mobility.
- control switch, with 3mtrs cable length.
- clevis pinned/latched hook.
- 1.5mtr battery conection cable .
- hand operated clutch for free spooling.
- automatic brake.
Wireless remote optional.
Optional mounting plate, ensures correct mounting of the winch.
The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.
Technical specifications:
- 24V single line
- rated pull = 15000lbs (6804kg)
- gear reduction ratio = 262:1
- Serie-wound motor = 24V 6.8HP
- drum size = 76x224mm
- cable length = 25m
- cable diameter = 11mm
- line pull = 0kg, 907kg, 1814kg, 3629kg, 6804kg
- line speed = 6mpm, 3.1mpm, 2.6mpm, 2.4mpm, 1.2mpm
- amp draw = 70A, 150A, 200A, 250A, 420A
- layer of cable = 1, 2, 3, 4
- pull per layer = 6804kg, 5806kg, 4990kg, 4445kg
- cap per layer = 4.6m, 10.7m, 18.2m, 28m
- mounting dimensions heart to heart = 255 x 115mm
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 584 mm |
| Produkt Breite | 170 mm |
| Produkt Höhe | 214 mm |
| Produktgewicht | 45,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 630 mm |
| Breite des Pakets | 230 mm |
| Paket Höhe | 375 mm |
| Gewicht des Pakets | 50,00 Kg |
