Motorwinde / Seilhebezug

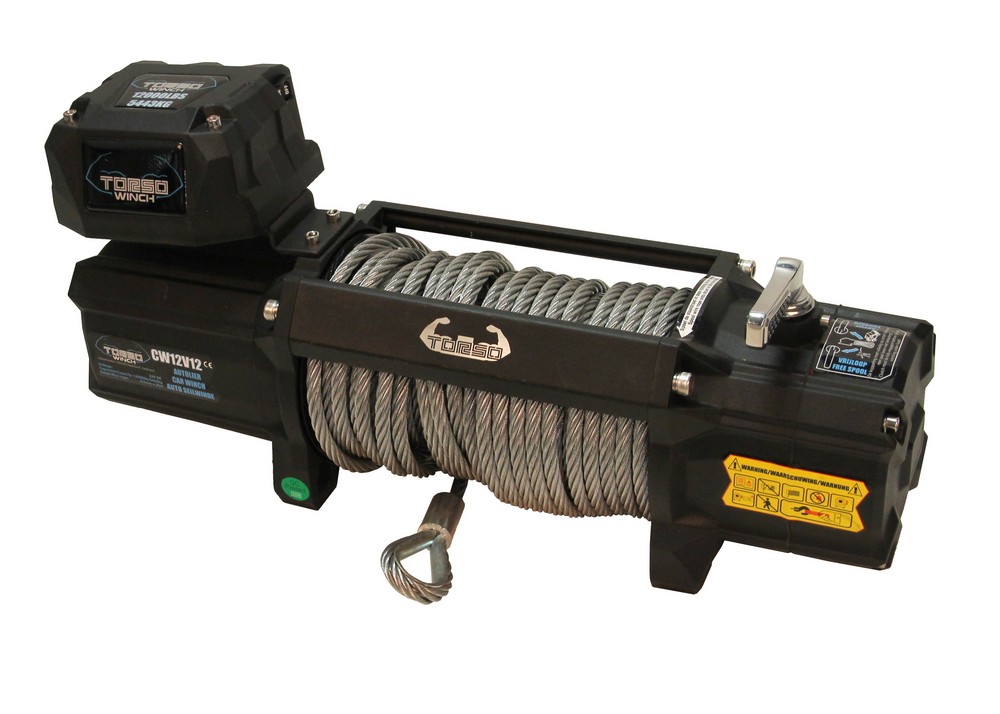

Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.
Torso winches are standard equiped with the following features:
- 4way fair load roller, for excellent cable mobility.
- control switch, with 3mtrs cable length.
- clevis pinned/latched hook.
- 1.5mtr battery conection cable .
- hand operated clutch for free spooling.
- automatic brake.
- 1.5t pulley block.
Wireless remote optional.
Optional mounting plate, ensures correct mounting of the winch.
The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.
Technical specification:
- rated line pull = 12000Lbs / 5443Kgs
- motor: series wound = 24V: input: 5.4Kw/7.2HP output: 2.7Kw/3.6HP
- gear reduction ratio = 230:1
- cable (dia. x L) = 10.2mm x 25.5mm
- drum size (dia. x L) = 63mm x 226mm
- mounting dimensions heart to heart = 255 x 115mm
Produkt Abmessungen: | |
---|---|
Produkt Länge | 550 mm |
Produkt Breite | 155 mm |
Produkt Höhe | 230 mm |
Produktgewicht | 45,0 Kg |
Abmessungen der Verpackung: | |
Paket Länge | 655 mm |
Breite des Pakets | 340 mm |
Paket Höhe | 335 mm |
Gewicht des Pakets | 45,90 Kg |
