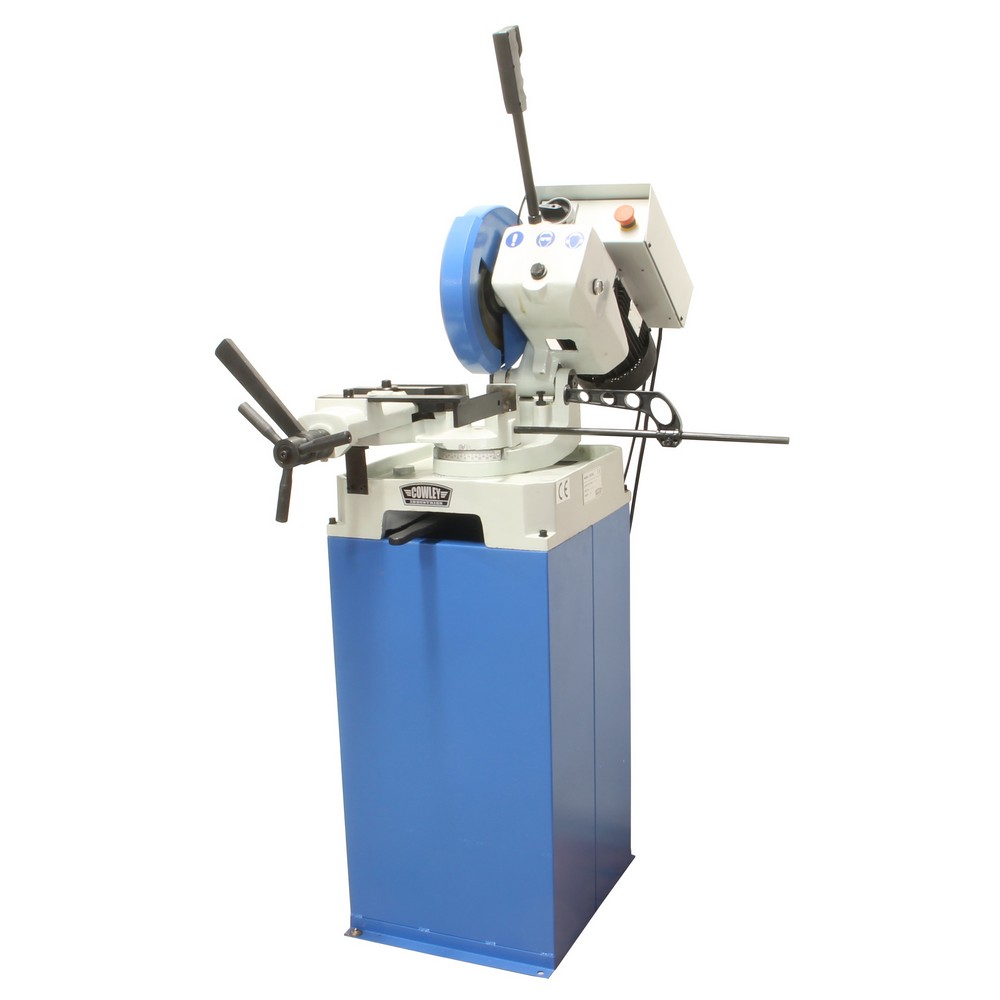

Metal circular saw / sawing machine
This Cowley circular saw is ideal for cutting and shortening round or rectangular metal materials. This robust model features the following useful features
Double clamp
Angle of the clamp can be adjusted
Rotatable vise design
Roll to support the material
Rotatable head 45 degrees
Material stop
The machines comes with a saw blade of 250mm, a base of 330 x 460 x 770mm and a cooling unit.
Specifications:
saw blade diameter = 250mm
axle diameter = 32mm
cutting capacity circular 90 degrees = 60mm
cutting capacity rectangular 90 degrees = 75 x 45mm
cutting capacity circular 45 degrees = 55mm
cutting capacity rectangular 45 degrees = 45 x 45mm
blade speed = 42rpm
max. opening clamp = 100mm
motor power = 1,1kW
voltage = 400V
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 430 mm |
| Produkt Breite | 900 mm |
| Produkt Höhe | 1.600 mm |
| Produktgewicht | 149,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 860 mm |
| Breite des Pakets | 570 mm |
| Paket Höhe | 760 mm |
| Gewicht des Pakets | 173,00 Kg |
| Pakettyp: | |
| 1 Stück |
