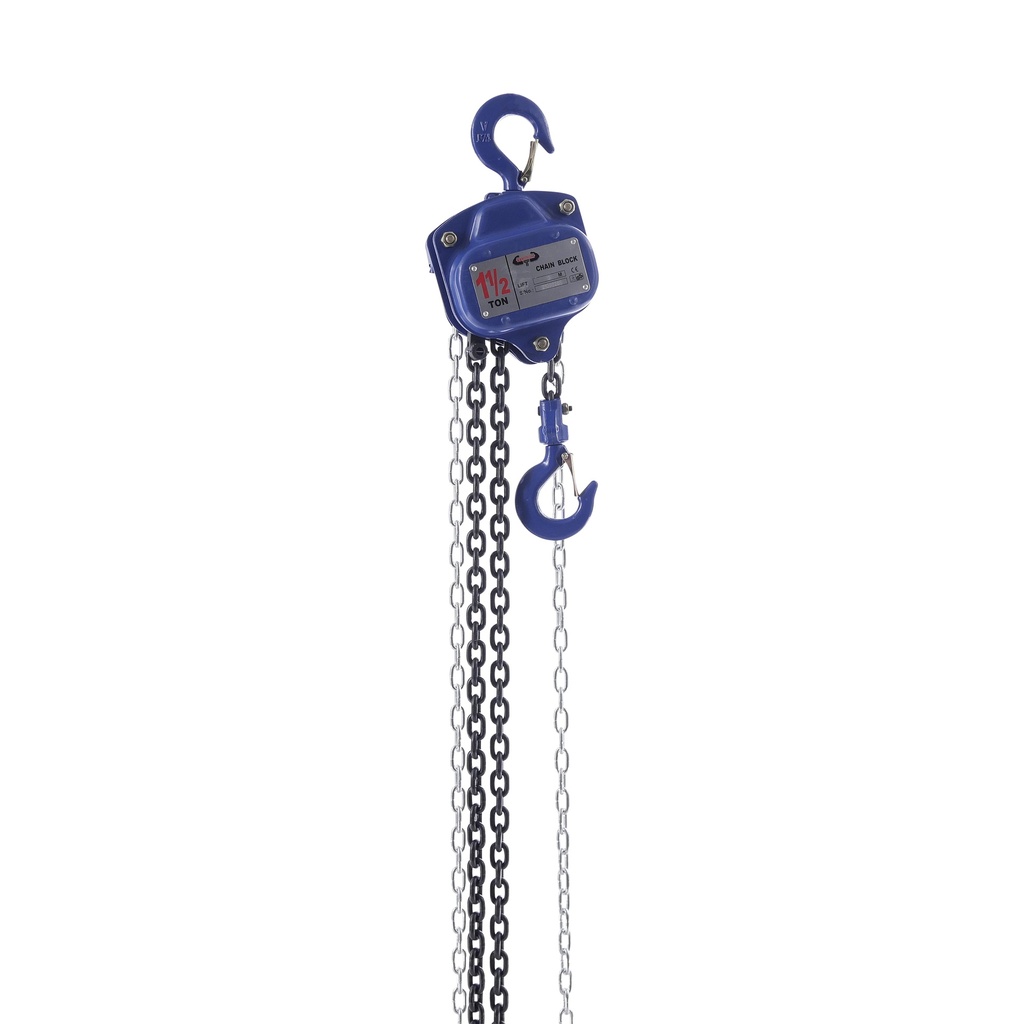

Chain hoist
These robust Torso chain hoists are ideal for lifting operations. Using the light chain its easy to lift vertically. The chain hoists are supplied with a heavy load chain and both hooks (below and above) are provided with a safety valve.
Technical specifications:
capacity = 1,5 ton
lifting height = 3m
max. distance between hooks = 3,35m
load chain = 7,1 x 34,5mm grade 80
load chain length = 3m
operating chain = 5 x 33mm
operating chain length = 2 x 2,75m
Produkt Abmessungen: | |
---|---|
Produkt Länge | 187 mm |
Produkt Breite | 161 mm |
Produkt Höhe | 420 mm |
Produktgewicht | 15,0 Kg |
Abmessungen der Verpackung: | |
Paket Länge | 270 mm |
Breite des Pakets | 215 mm |
Paket Höhe | 225 mm |
Gewicht des Pakets | 16,28 Kg |
Pakettyp: | |
60 Stück |
