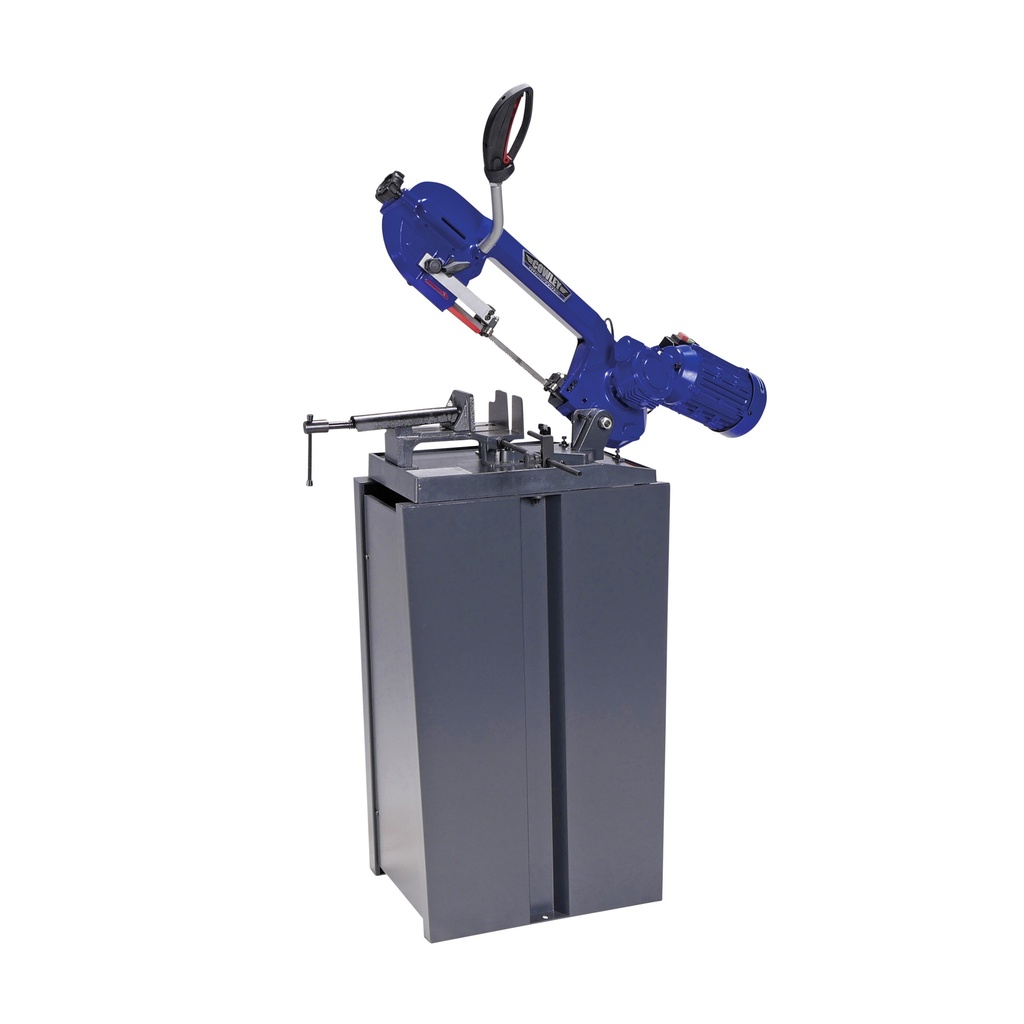

Metallbandsäge / Bandsägemaschine

This compact and light weight band saw is delivered incl support cabinet, and can easily be dismounted for portable use. Despite its small size, cutting bandsaw is quite capable of handling the tasks to perform.

Thanks to the adjustable quintuple bearing saw blade guidance it has a high cutting precision.

The low speed of the motor ensures a longer life. The band saw is ideal for cutting steel pipes and profiles and it is suitable for cutting steel, aluminium, stainless steel, teflon, plastic and many more materials.

Convenient to use in construction companies and shipyards, industrial use and on service vehicles.

The band saw has an adjustable cutting angle from 0° - 60° and is equipped with an adjustable material stop for fast and correct cutting.

Features:

• Compact & light
• Manual pull down feed
• Adjustable 5 bearing sawblade guidance
• Manual clamping vice
• Manual band tension
• Motor overload safety
• Bimetal saw band
• Cast iron machine clamp
• Control in the handle
• Maintenance-free bearings
• Adjustable material stop
• Adjustable cutting angle 0° - 60°

Technical specifications:

• Voltage = 230V/ 50Hz
• Power = 0.55kW
• Band saw speed = 60 m/min
• Blade Speeds = 1
• saw blade length = 1440mm
• saw blade width = 13mm
• saw blade thickness = 0.65mm

Cutting capacity:

• 0° round 127 mm
• 0° rectangular 125 × 130 mm
• 45° round 90 mm
• 45° square 90 mm
• 60° round 45 mm
• 60° square 45 mm

Dimensions / weight:

• Сabinet 470 x 370 x 800mm / 18kg
• Bandsawing machine 880 x 285 x 705mm / 27Kg
