Reifenmontiermaschine LKW Automatisch
Truck dismantling device professional / professional truck tire dismantling machine / truck tire dismantling machine / agricultural tire dismounting machine / dismantling machine earth-moving machinery

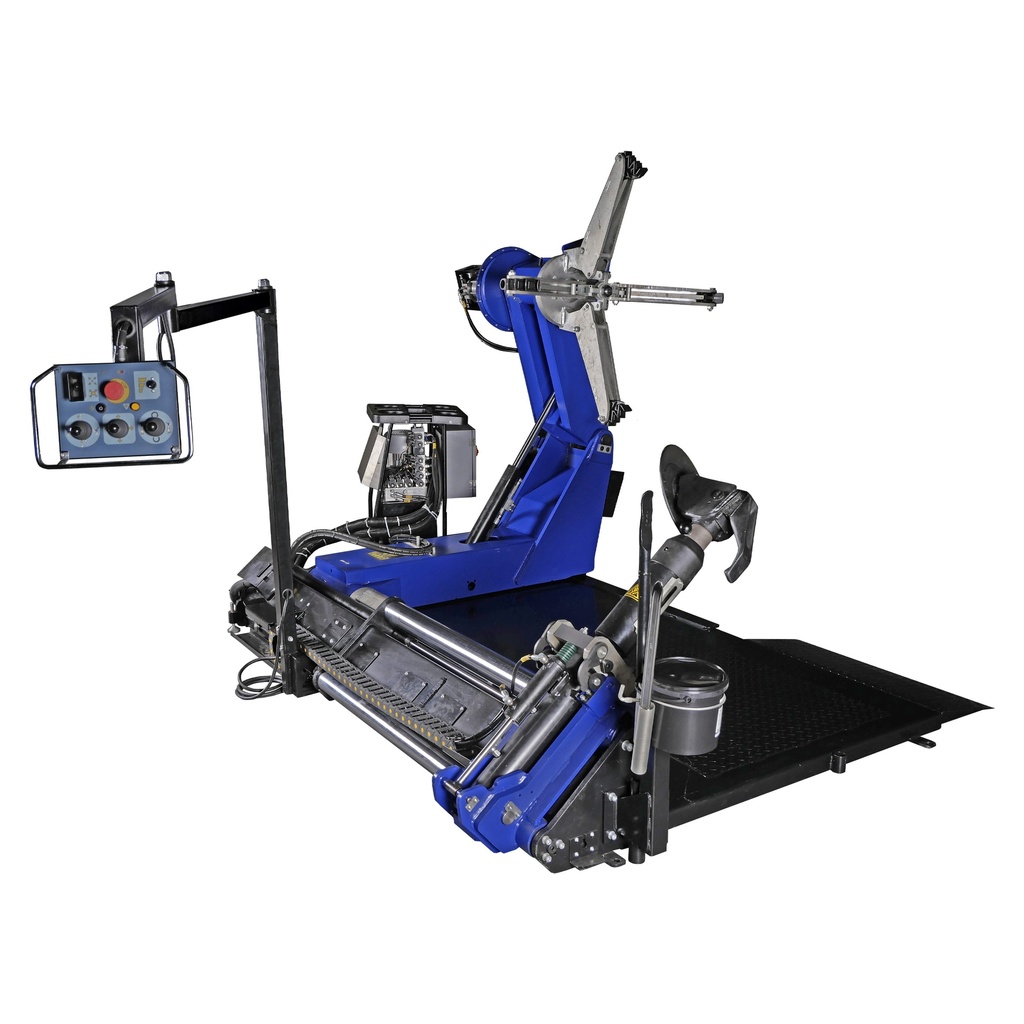

Universal truck tire dismantling device from Fabbri for heavy wheels up to 60” diameter 3000mm and width 1800mm.
Equipped with 3 different speed functions, a positionable control box and automatic space-saving arm.
This dismantling device is extremely suitable for heavy work and professional use!
Heavy duty tyre changer suggested for professional truck tyre service and high volume shops, bus and agriculture tyres. Suitable for both tube and tubeless tyres.
Features:
- Three chuck rotation speed
- Two trolleys with independent movement at two speeds
- Automatic tool rotation
- Automatic arm positioning
Technical specifications:
- Clamping capacity = 14" - 60''
- Maximum tire weight = 3000kg
- Max. tire diameter = 3000 mm or (118”)
- Max. tire width = 1800mm (71'')
- Hydraulic power unit motor = 4.8 kW / 5.6 kW 2-speed / 400V
- 3-speed gear motor = Hydraulic 5.0kW, 4 - 6 - 10 rpm
- Max. torque = 5570Nm
- Max. operation pressure = 180bar
- Bead breaking force = 3800kg
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Produkt Abmessungen: | |
|---|---|
| Produkt Länge | 0 mm |
| Produkt Breite | 0 mm |
| Produkt Höhe | 0 mm |
| Produktgewicht | 2.460,0 Kg |
| Abmessungen der Verpackung: | |
| Paket Länge | 3.000 mm |
| Breite des Pakets | 2.300 mm |
| Paket Höhe | 1.150 mm |
| Gewicht des Pakets | 2.600,00 Kg |
