Tire balancer / wheel balancer

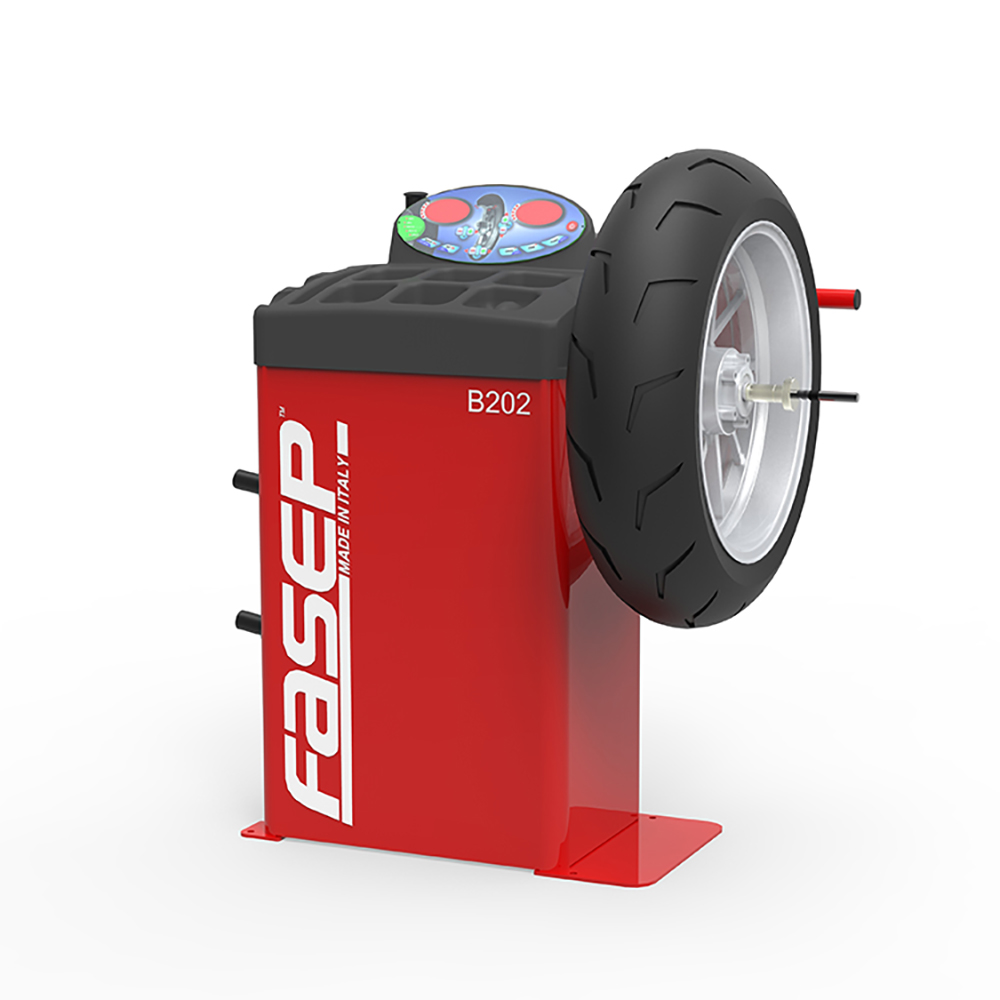

The Fasep "Moto" balancing machine is ideal for accurate, simple and fast balancing of motor wheels. It is no longer necessary to convert standard balancing machines with adapters and such, which saves a lot of time.
The machine has the following features:
3D-console with control panel for easy access to all functions.
Motor shaft of 14mm with multiple adapters to tension most motor wheels.
Storage space for weights, cones and tools.
Flange holders on the side of the machine
ISO 9001 standard
Technical specifications:
voltage = 230V / 50Hz
motor power = 5W
speed = 75 - 125rpm
rim diameter = 8" (200mm) - 26" (650mm)
max. wheel diameter = 34" (850mm)
max. rim width = 16" (415mm)
max. capacity = 70kg
cycle duration = 4 - 15 sec.
measurement accuracy = 1 gram
Each B202 comes standard with: a motor shaft 14mm, cone set, rim width meter, open-ended spanner and 4 ground anchors.
Produkt Abmessungen: | |
---|---|
Produkt Länge | 900 mm |
Produkt Breite | 460 mm |
Produkt Höhe | 950 mm |
Produktgewicht | 45,0 Kg |
Abmessungen der Verpackung: | |
Paket Länge | 910 mm |
Breite des Pakets | 490 mm |
Paket Höhe | 1.120 mm |
Gewicht des Pakets | 49,00 Kg |
Pakettyp: | |
1 Stück |
