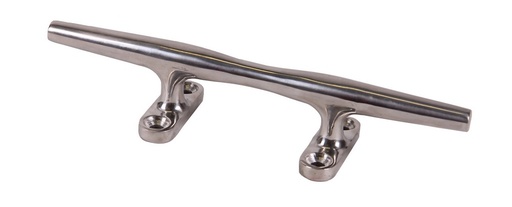

Cleat
- 12" / 300mm
- RVS

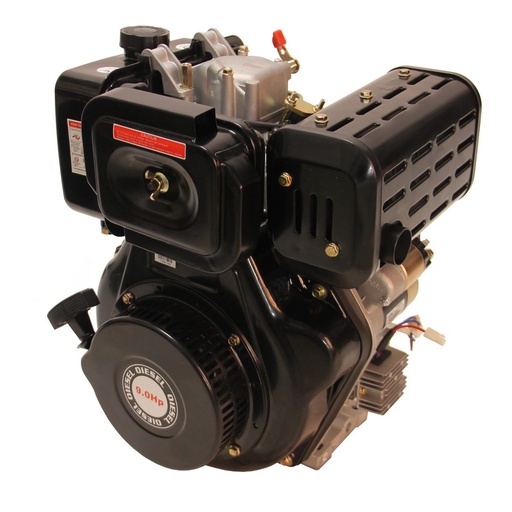

Diesel Motor E-start This diesel engine is used as a replacement for engines from wsater pumps, industrial and agricultural machinery. The engine starts quickly and is provided with an air filter. Specifications: - type = 4-stroke / 1-cylinder vertical - combustion system = direct injection - bore x stroke = 86 x 70mm - displacement = 406cm³ - engine speed = 3600rpm - 1h output = 7,3kW (10pk) - 12h output = 6,5kW (9pk) - fuel tank capacity = 5,5L - lub. oil capacity = 1,65L - fuel consumption = 282g/kWh - axle size = 25,4mm - air cooled - ignition = TCI - PTO rotation = left / anticlockwise

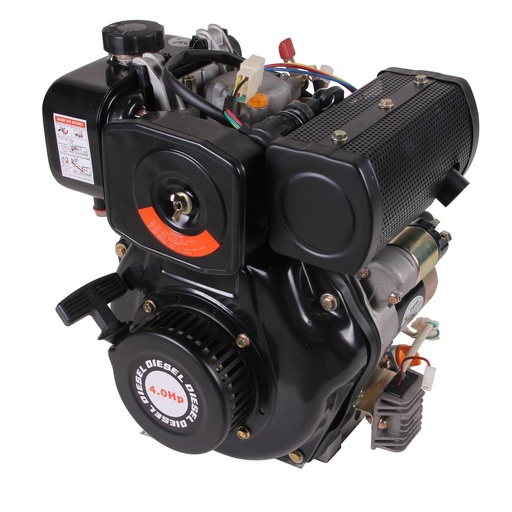

Diesel Motor E-start This diesel engine is used as a replacement for engines from wsater pumps, industrial and agricultural machinery. The engine starts quickly and is provided with an air filter. Specifications: - type = 4-stroke / 1-cylinder vertical - combustion system = direct injection - bore x stroke = 70 x 55mm - displacement = 211cm³ - engine speed = 3600rpm - 1h output = 3,1kW (4,2pk) - 12h output = 2,8kW (3,8pk) - fuel tank capacity = 2,5L - lub. oil capacity = 0,75L - fuel consumption = 288g/kWh - air cooled - ignition = TCI - PTO rotation = left / anticlockwise

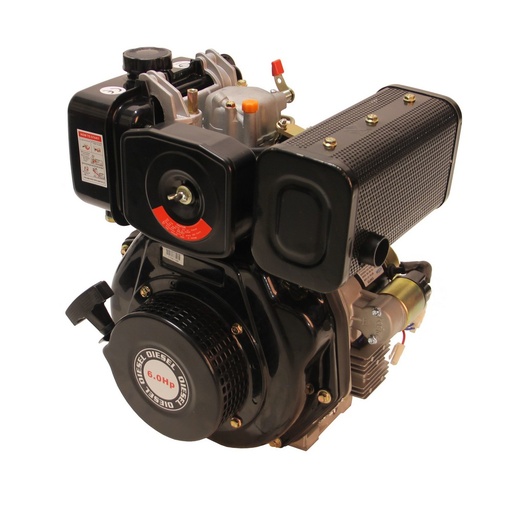

Diesel Motor E-start This diesel engine is used as a replacement for engines from wsater pumps, industrial and agricultural machinery. The engine starts quickly and is provided with an air filter. Specifications: - type = 4-stroke / 1-cylinder vertical - combustion system = direct injection - bore x stroke = 78 x 62mm - displacement = 296cm³ - engine speed = 3600rpm - 1h output = 5,1kW (7pk) - 12h output = 4,4kW (6pk) - fuel tank capacity = 3,5L - lub. oil capacity = 1,1L - fuel consumption = 285g/kWh - air cooled - ignition = TCI - PTO rotation = left / anticlockwise - axle size = 25mm

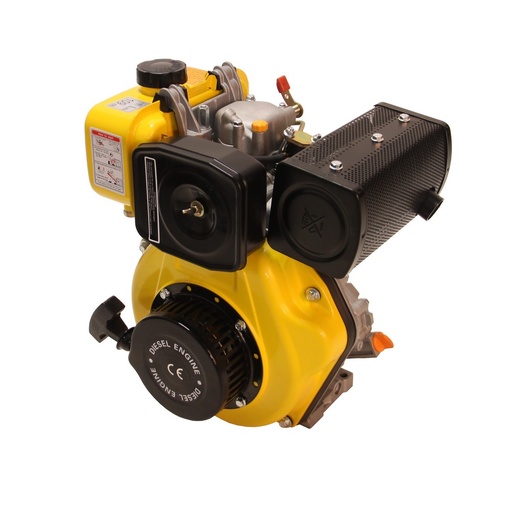

Diesel Motor Hand start This diesel engine is used as a replacement for engines from wsater pumps, industrial and agricultural machinery. The engine starts quickly and is provided with an air filter. Specifications: - type = 4-stroke / 1-cylinder vertical - combustion system = direct injection - bore x stroke = 70 x 55mm - displacement = 211cm³ - engine speed = 3000rpm - 1h output = 2,8kW (3,8pk) - 12h output = 2,5kW (3,4pk) - fuel tank capacity = 2,5L - lub. oil capacity = 0,75L - fuel consumption = 280g/kWh - air cooled - ignition = TCI - PTO rotation = left / anticlockwise

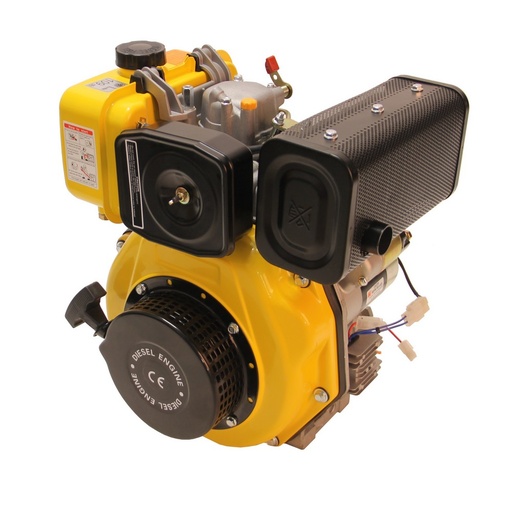

Diesel Motor Hand start This diesel engine is used as a replacement for engines from wsater pumps, industrial and agricultural machinery. The engine starts quickly and is provided with an air filter. Specifications: - type = 4-stroke / 1-cylinder vertical - combustion system = direct injection - bore x stroke = 78 x 62mm - displacement = 296cm³ - engine speed = 3000rpm - 1h output = 4,2kW (5,7pk) - 12h output = 3,8kW (5,2pk) - fuel tank capacity = 3,5L - lub. oil capacity = 1,1L - fuel consumption = 276g/kWh - air cooled - ignition = TCI - PTO rotation = left / anticlockwise - axle size = 25mm
Dieselpumpe 12V
- voltage = 12V
- pressure = 4 - 5psi
- capacity = 113,5 l/h

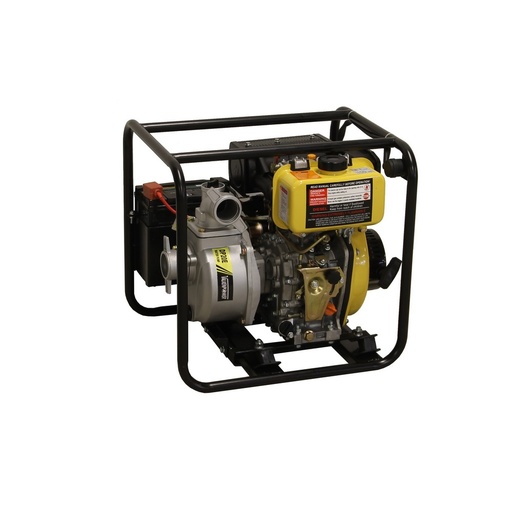

Diesel Wasserpumpe Elektrostart waterpump: - connection = 50mm / 2'' - cont. head = 26m - self-priming time = 70s/4m - max. suction head = 8m - cont. capacity = 36m3/hr / 600L/min - dB (10m) = 72 - LWa = 100dB engine: - engine model = 170F - engine speed = 3600rpm - engine type = single-cylinder 4 stroke air cooled diesel engine - displacement = 211cc - bore stroke = 70 x 55mm - electric start - fuel tank capacity = 2,5L * including hose connections

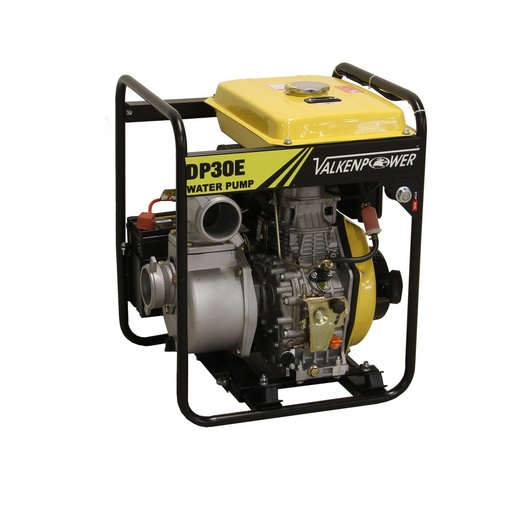

Diesel Wasserpumpe Elektrostart waterpump: - connection = 80mm / 3'' - cont. head = 28m - self-priming time = 120s/4m - max. suction head = 9m - cont. capacity = 50m3/hr / 833L/min - dB (10m) = 81 - LWa = 109dB engine: - engine model = 178F - engine speed = 3600rpm - engine type = single-cylinder 4 stroke air cooled diesel engine - displacement = 296cc - bore stroke = 78 x 62mm - electric start - fuel tank capacity = 3,5L * including hose connections

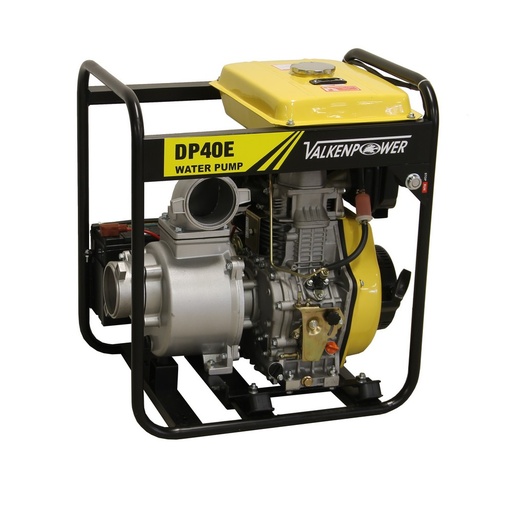

Diesel Wasserpumpe Elektrostart waterpump: - connection = 100mm / 4'' - cont. head = 31m - self-priming time = 180s/4m - max. suction head = 8m - cont. capacity = 96m3/hr / 1600L/min - dB (10m) = 90 - LWa = 118dB engine: - engine model = 186F - engine speed = 3600rpm - engine type = single-cylinder 4 stroke air cooled diesel engine - displacement = 296cc - bore stroke = 86 x 70mm - electric start - fuel tank capacity = 5,5L * including hose connections

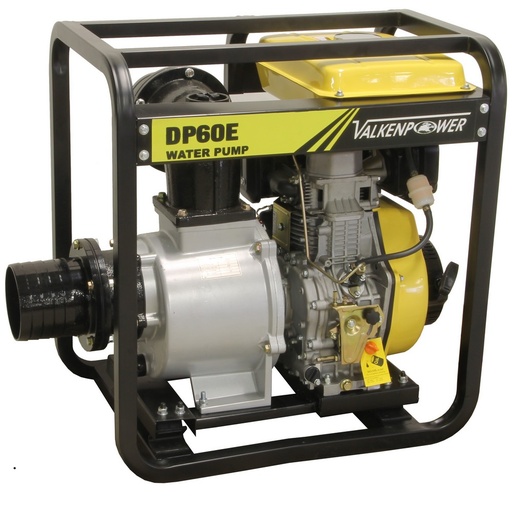

Diesel Wasserpumpe Elektrostart waterpump: - connection = 150mm / 6'' - cont. head = 15m - self-priming time = 200s/4m - max. suction head = 6m - cont. capacity = 180m3/hr / 3000L/min - dB (10m) = 86 - LWa = 114dB engine: - engine model = 192FE - engine speed = 3600rpm - engine type = single-cylinder 4 stroke air cooled diesel engine - displacement = 498cc - bore stroke = 92 x 75mm - electric start - fuel tank capacity = 12,5L

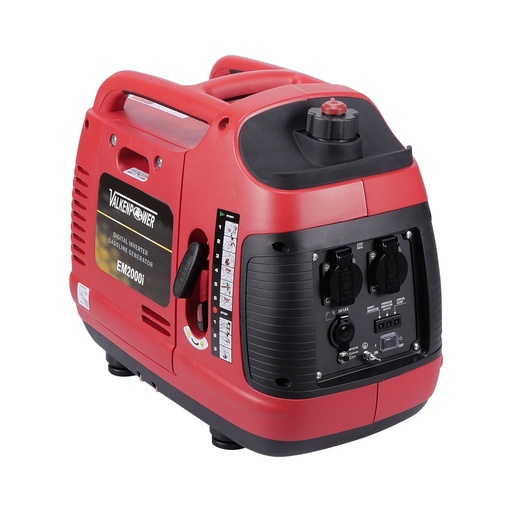

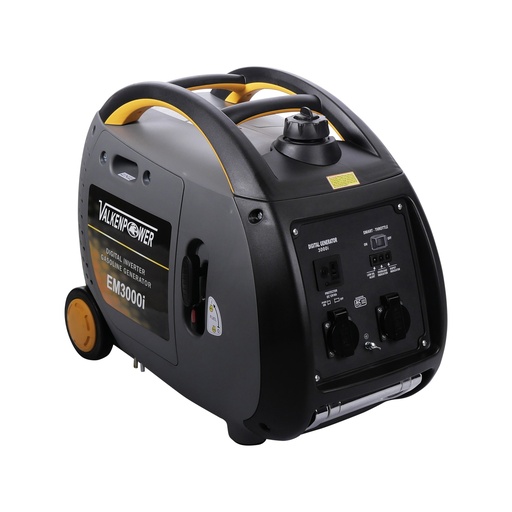

Digital Inverter Benzin Generator
This silent digital inverter has a constant voltage like an common household socket. Suitable for all sensitive electric devices because of inverter technology. So devices like fridges, TVs, computers, freezers etc. can be operated.
A digital inverter generator is up to 30% more compact than a common emergency generator at the same power level.
As the RPM adapts to the power output, the consumption is very low.
Digital Inverter Benzin GeneratorThis silent digital inverter has a constant voltage like an common household socket. Suitable for all sensitive electric devices because of inverter technology. So devices like fridges, TVs, computers, freezers etc. can be operated.A digital inverter generator is up to 30% more compact than a common emergency generator at the same power level.As the RPM adapts to the power output, the consumption is very low.

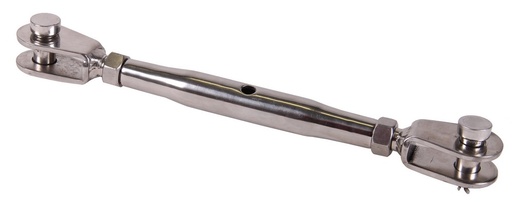

Drahtspanner - 6mm - RVS - with claw
