Druckschlauch
for water and oil
- pressure = 276bar
- length = 8m
- 3/8''

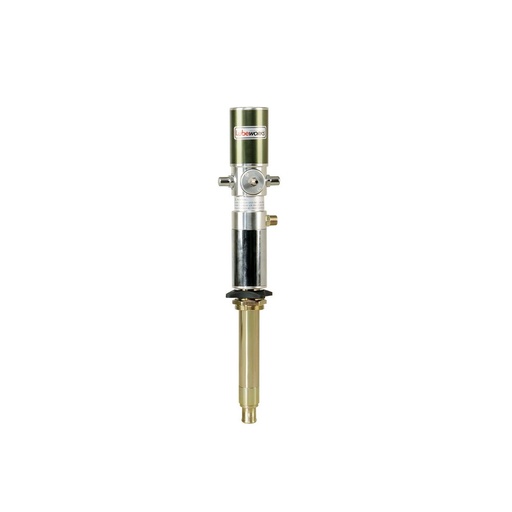

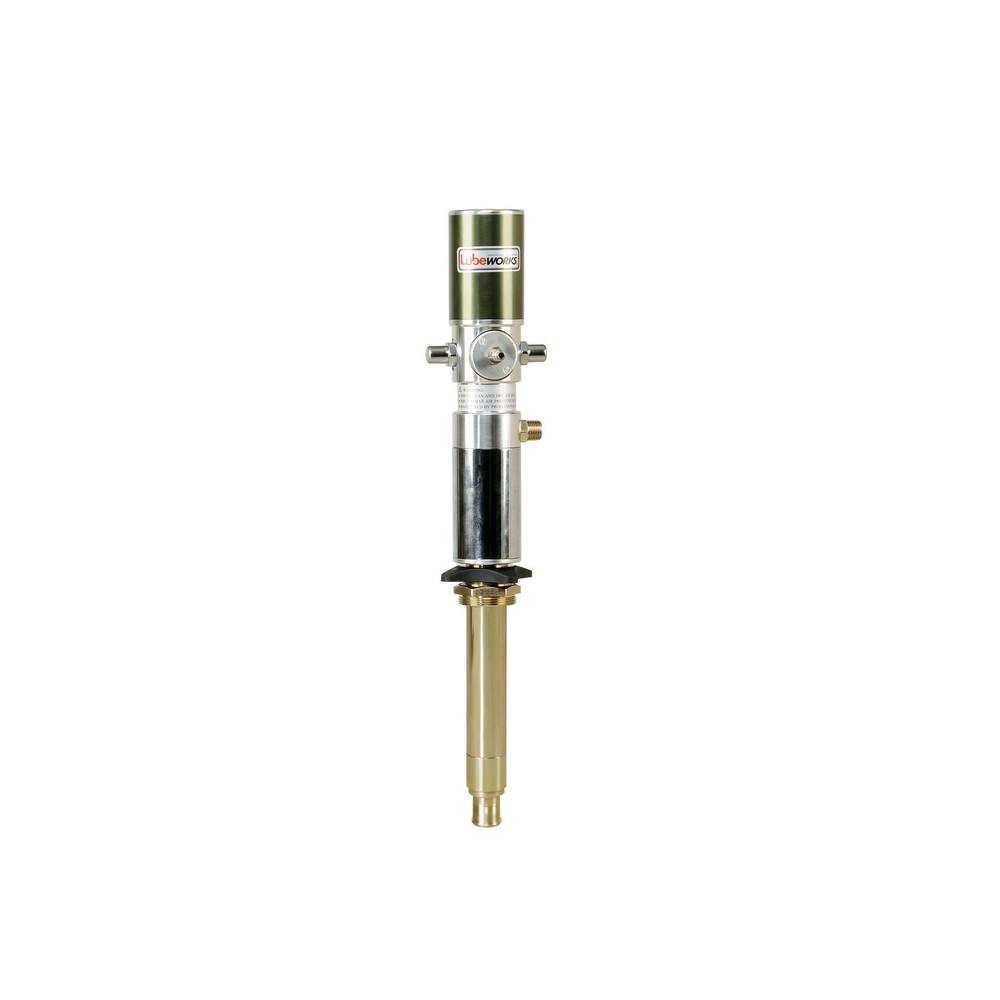

Air operated oil pump The pump can handle fluids like motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid. Suitable for oil to 120 SAE and supplied with a 2'' bung adaptor. - drum application = 50 - 60kgs - pressure ratio = 1:1 - air inlet pressure = 5 - 8 bar - max fluid pressure = 8 bar - air motor effective diameter = 63mm - air consumption = 8 bar 100 L/min - max. free flow rate = 18 L/min - air inlet connection = 1/4'' quick plug 1/4'' NPT female - oil outlet connection = 1/2''

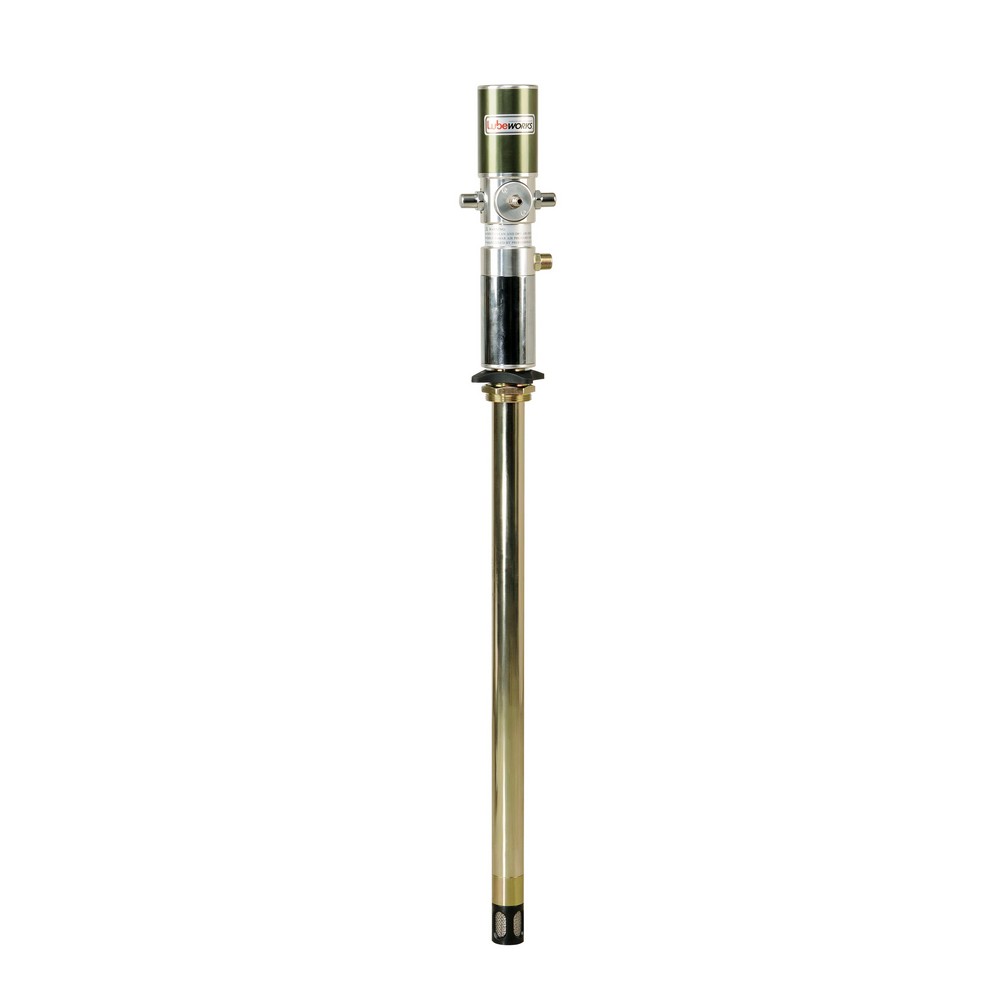

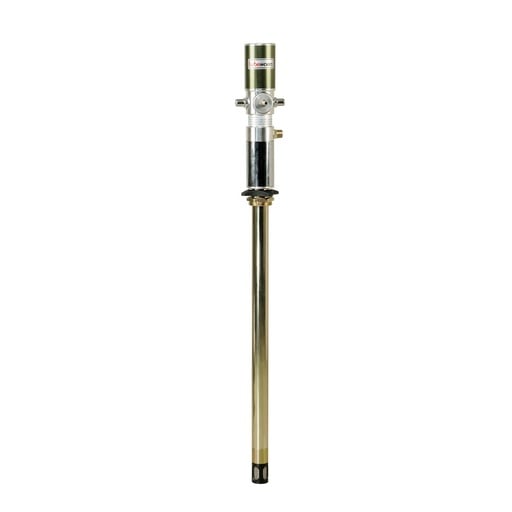

Air operated oil pump The pump can handle fluids like motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid. Suitable for oil to 120 SAE and supplied with a 2'' bung adaptor. - drum application = 50 - 60kgs - pressure ratio = 1:1 - air inlet pressure = 5 - 8 bar - max fluid pressure = 8 bar - air motor effective diameter = 63mm - air consumption = 8 bar 100 L/min - max. free flow rate = 18 L/min - suction tube diameter = 42mm - suction tube length = 730mm - air inlet connection = 1/4'' quick plug 1/4'' NPT female - oil outlet connection = 1/2''

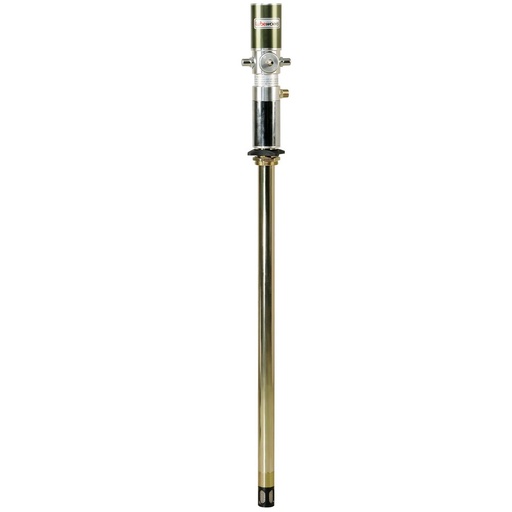

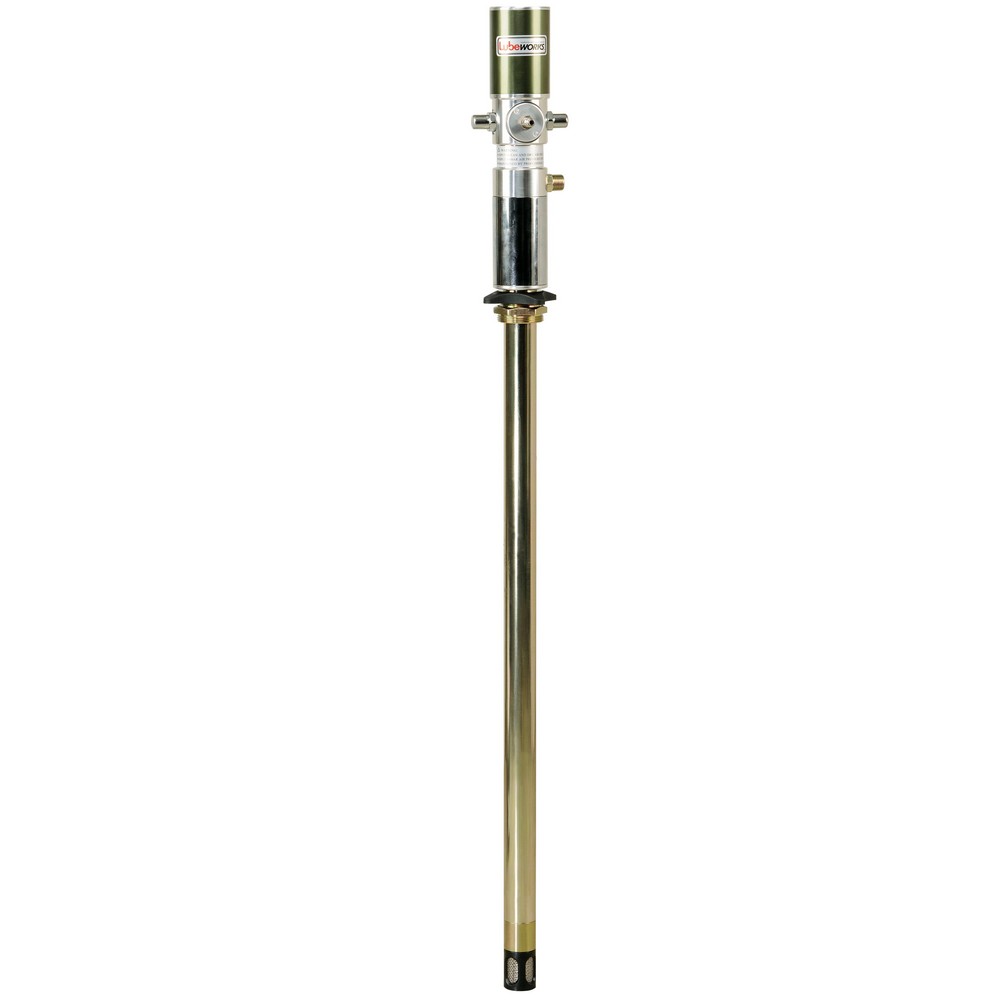

Air operated oil pump The pump can handle fluids like motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid. Suitable for oil to 120 SAE and supplied with a 2'' bung adaptor. - drum application = 180 - 220kgs - pressure ratio = 1:1 - air inlet pressure = 5 - 8 bar - max fluid pressure = 8 bar - air motor effective diameter = 63mm - air consumption = 8 bar 100 L/min - max. free flow rate = 18 L/min - suction tube diameter = 42mm - suction tube length = 940mm - air inlet connection = 1/4'' quick plug 1/4'' NPT female - oil outlet connection = 1/2''

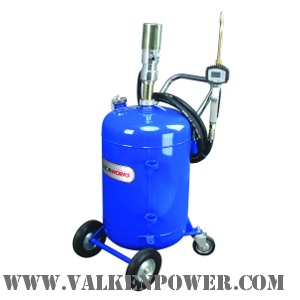

Pneumatische Ölpumpe specifications: - tank capacity = 65L - length delivery hose = 1/2'' x 4m - compression ration = 1:3 - max. working pressure = 8bar - capacity = 12L/min
