Machine tap fully ground bottoming holes M22 HSS DIN376C

[SS233220] Machine tap fully ground bottoming holes M22 HSS DIN376C

Wood and Metal working / Metal working machinery / Threadcutting / Machine taps / Fully ground bottoming holes Brand: Labor Labor

Product Code: SS233220

EAN: 8720028098170

Availability: Available

https://www.valkenpower.com/web/image/product.template/61963/image_1920?unique=bf105a5

€ 20.00 20.0 EUR € 20.00

€ 20.00

Not Available For Sale

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

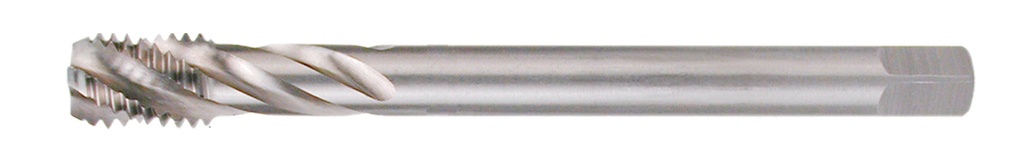

Machine tap

HSS fully ground machine taps for bottoming holes are made from alloyed high speed steel. Full grinding during the production process results in a very sharp tap with high precision. In combination with cutting oil this will result in a very long tool life. Very suitable for tapping bottoming threads in unalloyed steels such as sheet steel, construction steel and cast iron.

Technical specificaties:

  • size = M22

  • DIN 376

  • connection = square

  • material = HSS - G

  • intersection angle = flat

  • right hand

  • fully ground

Product Dimensions:
Product Length 140 mm
Product Width 22 mm
Product Height 22 mm
Product Weight 0.25 Kg
Package Dimensions:
Package Length 145 mm
Package Width 30 mm
Package Height 30 mm
Package Weight 0.26 Kg

  • Fully ground, for bottoming holes

  • Suitable for unalloyed steel

  • High precision

  • Long lifetime
