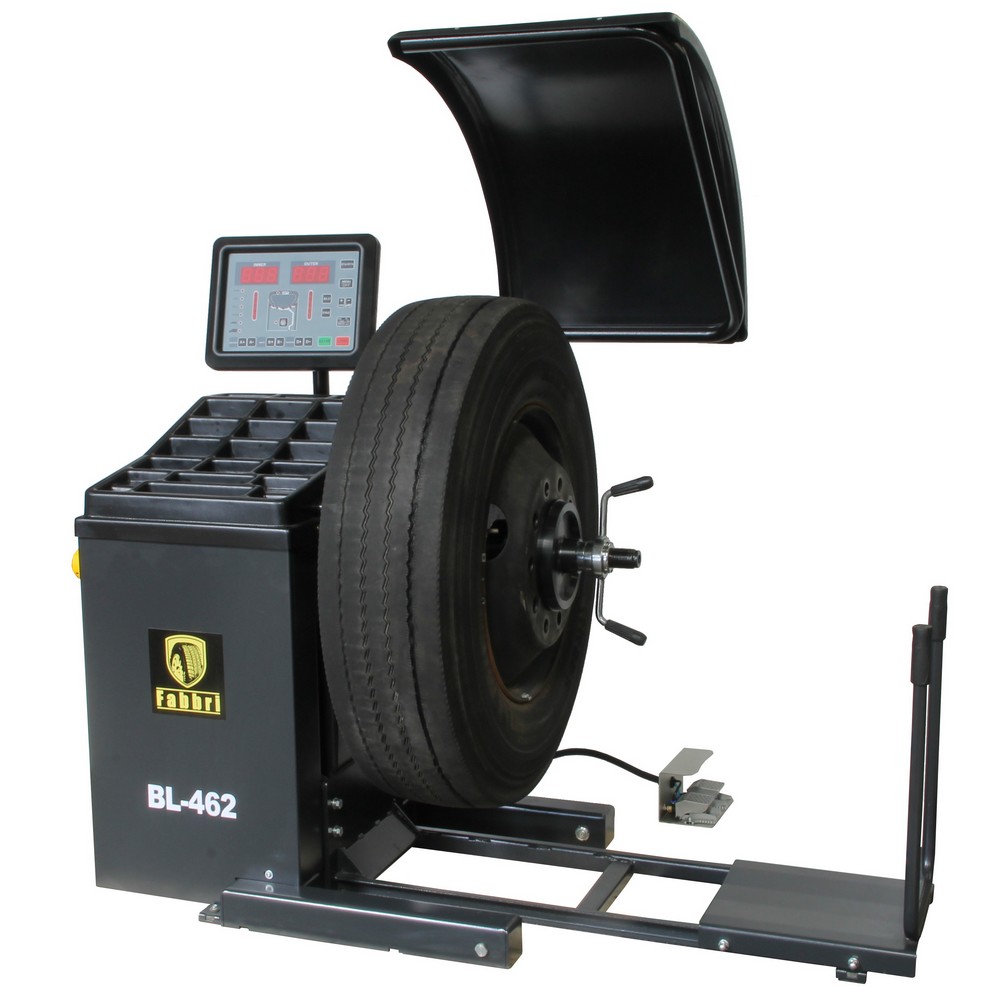

Truck tyre balancer
This Fabbri professional wheel balancer is provided with a pneumatic lift for easy mounting of heavy wheels.
Features:
for balancing both truck and car wheels
automatic braking after spin
automatic start/stop when the hood is lowered/raised
STOP pushbutton to stop the machine immediately
static and dynamic balancing modes
four ALU balancing modes
rapid optimization (OPT)
self diagnosis and calibration
exceptional stability in reading the unbalance between planes
display in grams or ounces, mm or inch
Technical specifications:
- power supply = 110V / 220V / 230V 1Ph
- motor power = 250W
- shaft diameter = 40mm
- max. wheel weight = 200kg
- wheel diameter = 1200mm
- rim diameter = 255 - 810mm / 10" - 32"
- wheel width = 39 - 510mm / 1,5" - 20"
- balancing precision = 1g for car mode and 10g for truck mdoe
- cycle time = 7s for car mode and 15s for truck mode
- balancing speed = 150rpm for car mode and 90rpm for truck mode
- noise level = < 70dbA
- air supply = 8 - 10bar
| Product Dimensions: | |
|---|---|
| Product Length | 1,760 mm |
| Product Width | 1,030 mm |
| Product Height | 2,180 mm |
| Product Weight | 260.0 Kg |
| Package Dimensions: | |
| Package Length | 1,300 mm |
| Package Width | 1,150 mm |
| Package Height | 1,140 mm |
| Package Weight | 280.00 Kg |
