Wheel dolly 1.5 ton with 5 wheels

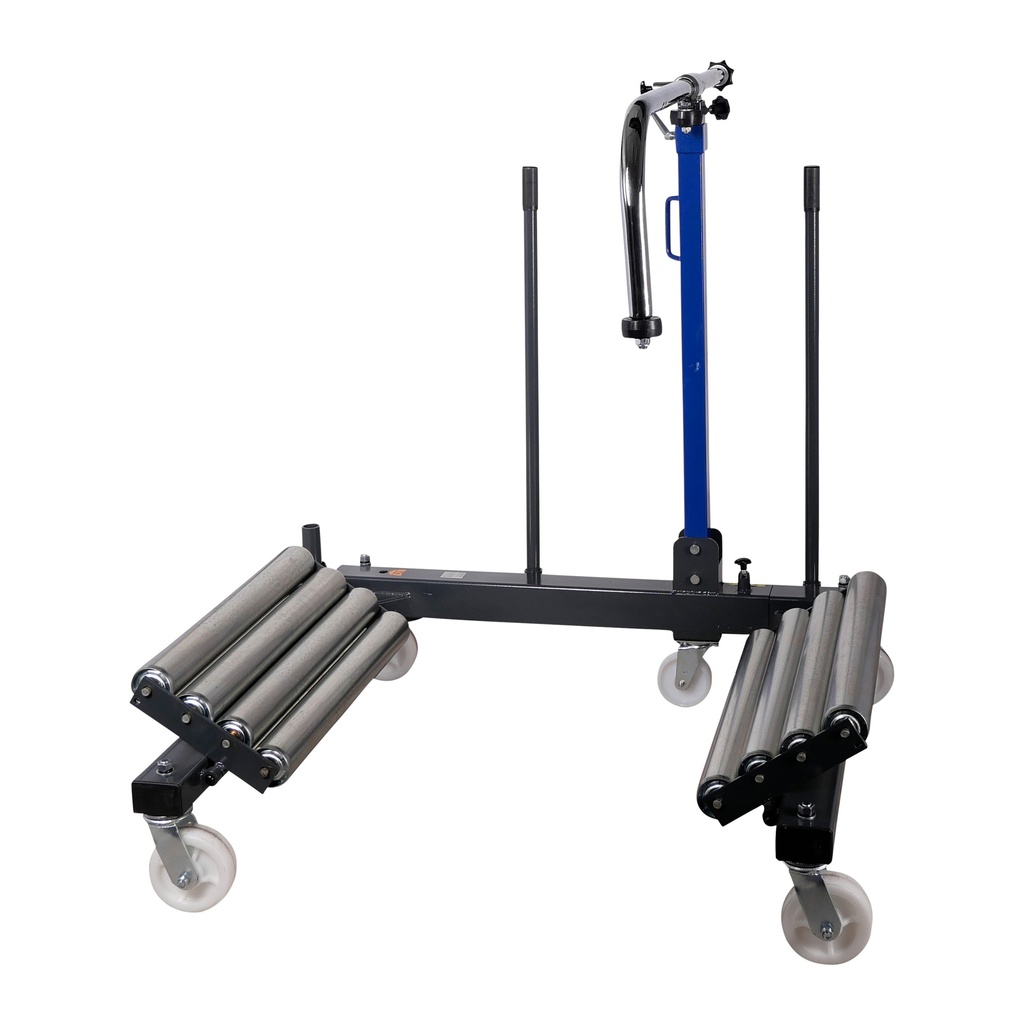

[WD15HW] Wheel dolly 1.5 ton with 5 wheels

Shop equipment / Tyre service / Tyre changer Brand: Mammuth Mammuth

Product Code: WD15HW

EAN: 8720028116140

Availability: Available

https://www.valkenpower.com/web/image/product.template/75835/image_1920?unique=e4d001f

€ 700.00 700.0 EUR € 700.00

€ 700.00

Not Available For Sale

  • Lifting capacity
  • Lifting range
  • Wheel diameter range
  • Wheel width max.
  • Material

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

Wheel dolly 1.5 ton from Mammuth is a powerful and versatile tool designed for safely lifting and maneuvering heavy-duty wheels.
With a load capacity of 1500 kg, it can easily handle large wheels, making it perfect for professional garages and workshops.

  • Equipped with a quick-lock system for secure and adjustable wheel positioning.
  • Capable of managing wheels up to 2200 mm in diameter.
  • Equipped with extra large rollers which can handle a wheel width max of 1100mm
  • The safety bar has an additional roller to guide the wheel  and position the wheel smoothly.
  • The button frame is made out of 1 strong welded construction.
  • Equipped with 5 swivel wheels, including two with brakes for stability during movement.
  • Includes eight ball-bearing steel rollers with springs for accurate wheel positioning.
Product Dimensions:
Product Length 1,270 mm
Product Width 1,100 mm
Product Height 1,340 mm
Product Weight 133.0 Kg
Package Dimensions:
Package Length 1,310 mm
Package Width 1,130 mm
Package Height 340 mm
Package Weight 161.00 Kg

  • High load capacity 1500 kg
  • Height-adjustable safety bar incl quick lock system
  • Handles wheels up to 2200 mm in diameter
  • 5 swivel wheels, two with brakes
  • Eight ball-bearing steel rollers incl spring for correct positioning

Specifications

Lifting capacity 1500 kg
Lifting range 0 - 750 mm
Wheel diameter range 1000 - 2200 mm
Wheel width max. 1100 mm
Material Steel
