Jacking beam 4000kg

[VL40XAP] Jacking beam 4000kg

Lifts / Jacking Beams Brand: Falco Sollevatori Falco Sollevatori

Product Code: VL40XAP

EAN: 8720028106646

Availability: Available

https://www.valkenpower.com/web/image/product.template/63678/image_1920?unique=9baf57f

€ 1,350.00 1350.0 EUR € 1,350.00

€ 1,350.00

Not Available For Sale

  • Lifting capacity
  • Lifting height min.
  • Telescopic arms
  • Stroke
  • Platform dimensions
  • Lifting height max. incl. pads
  • Air pressure
  • Width incl. mounting brackets
  • Adapter height

This combination does not exist.

Fast delivery from large stock.
Safe payment via various payment options.
14-day return policy.

Jacking beam 4000kg

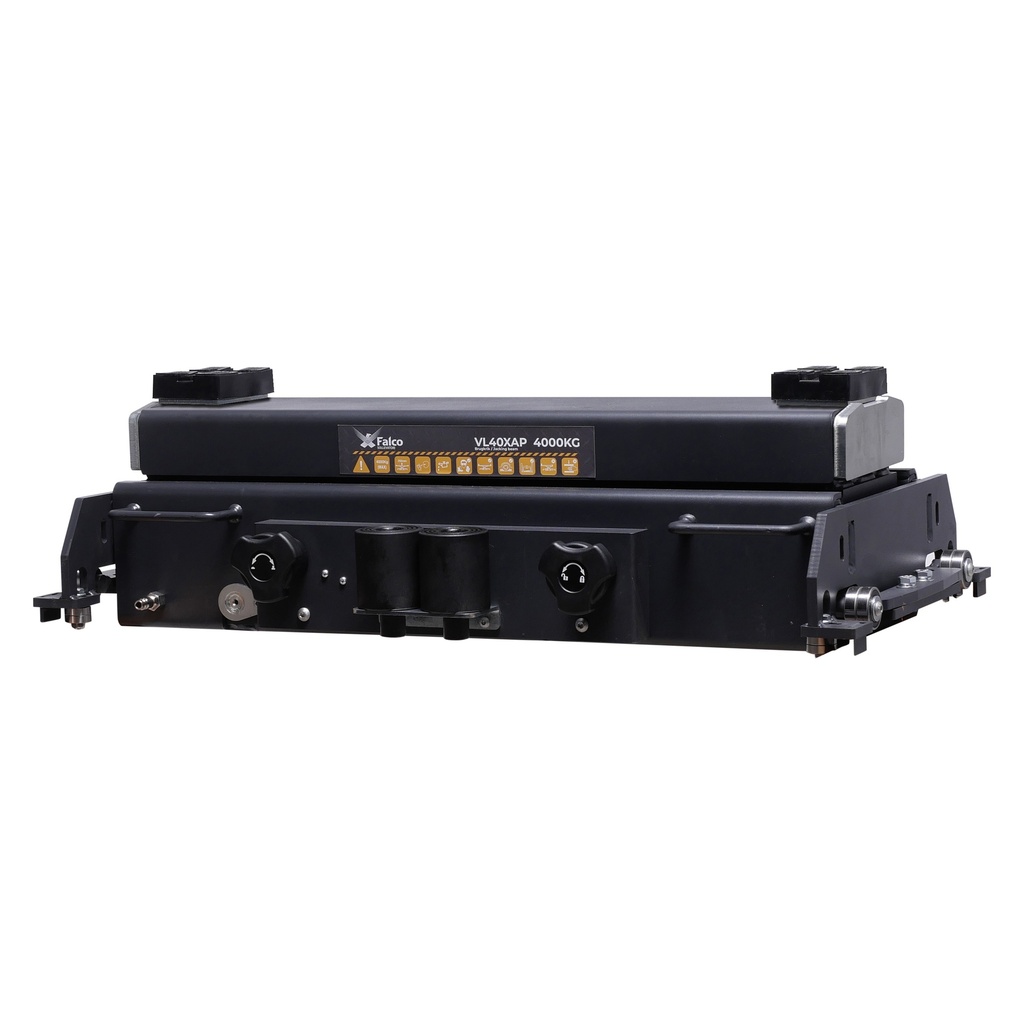

This air operated hydraulic jacking beam from Falco Sollevatori is an great addition for any four column & scissor lift installed in automotive workshops used for conducting maintenance. The jack can be easily installed and positioned thanks to the special ballbearing steel rollers, which have a universal adjustable position. The Falco jacking beam has an integrated two-stage pump, this system provides an automatic fast lifting stroke without weight and a slow controllable stroke when the jacking beam is lifting the vehicle.
It comes with square saddles and cup-shaped height adapters to increase the lifting height, it’s equipped with rubber lifting pads for protection of the car body.
With the two-speed lowering system, a loaded car can be safely lowered with minimal decrease in speed.Once the load is of the jacking beam the lowering speed will automatically increase to work efficiently and more safe.

Product Dimensions:
Product Length 443 mm
Product Width 875 mm
Product Height 230 mm
Product Weight 176.0 Kg
Package Dimensions:
Package Length 520 mm
Package Width 946 mm
Package Height 365 mm
Package Weight 191.00 Kg

  • Integrated control
  • Dual action pump
  • 4000kg lifting capacity
  • 2 speed lowering
  • Heavy duty adapter plate

Specifications

Lifting capacity 4000 kg
Lifting height min. 261 mm
Telescopic arms 780 - 1515 mm
Stroke 250 mm
Platform dimensions 755x196 mm
Lifting height max. incl. pads 511 mm
Air pressure 7.5 - 12 bar
Width incl. mounting brackets 870 - 1290 mm
Adapter height 75 mm
