TIG AC/DC welding inverter 315A / IGBT TIG AC/DC inverter / welding machine

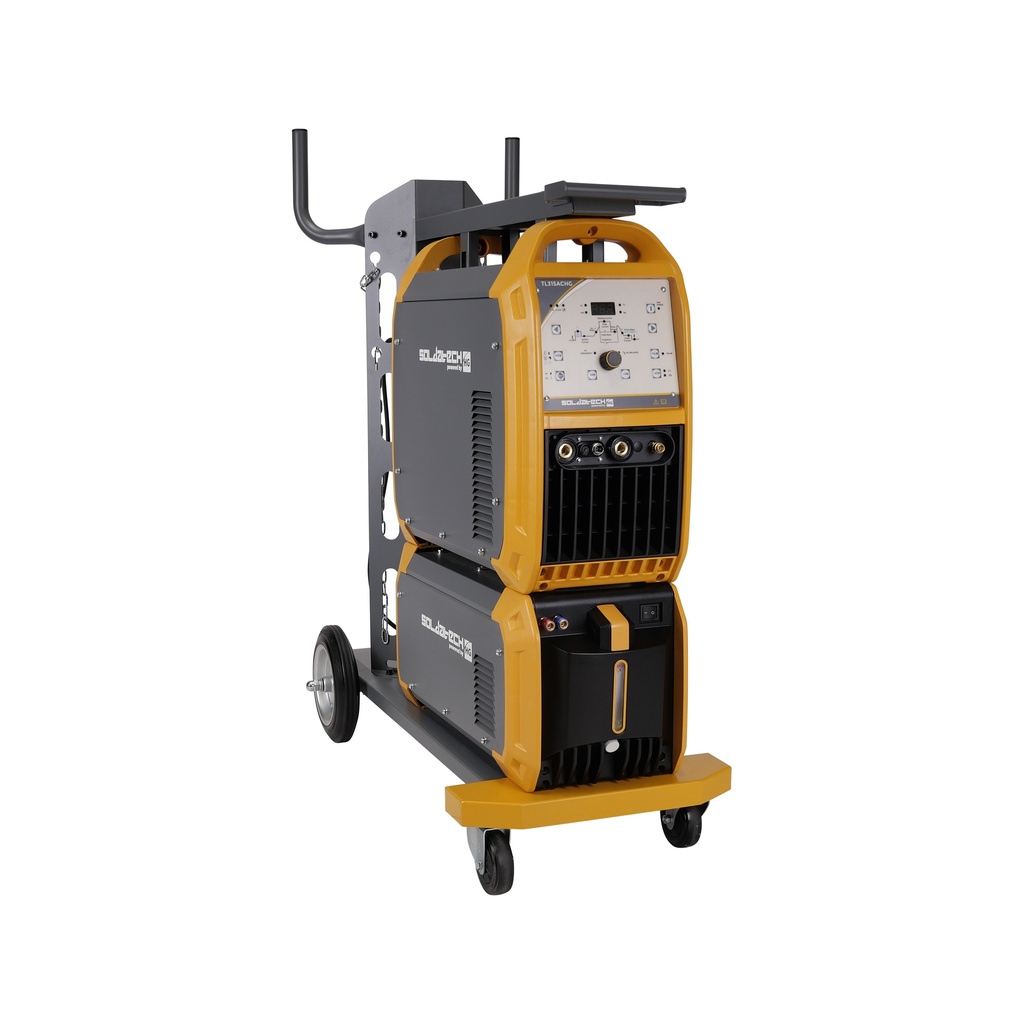

This Soldatech powered by HG TIG welding machine is standard equipped with a solid trolley that easily carries a 50L gas bottle and processes a huge range of materials with different welding processes including AC/DC Pulse, TIG and MMA welding. With the setting and selection buttons, all parameters of the TL315ACHG can easily be set in the correct way, so that every welding job is completed with high quality results.
The modern IGBT inverter technology ensures that the TL315ACHG delivers sustainable performance with more power and a high duty cycle. In addition, the TL315ACHG is equipped as standard with a powerful water cooler which prevents overheating in combination with a built-in fan and ensures that high-quality welding performance is guaranteed over a long period of time.
The digital continuously adjustable display shows very clearly the welding processes and possibilities. Thanks to the HF ignition, the device starts up smoothly at all times.
The supplied TLT18M4 torch is equipped with water cooling for a long service life when welding with high amperage.
Due to the hot-start / anti-stick function, the welding current is quickly increased, so that the electrode does not stick to the workpiece during ARC welding.
Ideal for welding aluminum, stainless steel, carbon steel, low alloy steel, copper and special aluminum alloys.
Every TL315ACHG comes standard including:
Water-cooled Soldatech TLT18M4 TIG torch with 4m cable
Welding ground clamp with 3m 25mm² cable
European dinse couplers 13mm
Gas line including quick coupling of 4m (8mm inner diameter)
5-pin 32A plug with 2m 4x2.5mm² cable
Wear parts = 3x collet (1.6 / 2.0 / 2.4mm), 1x collet chuck 3.2mm, 3x gas nozzle (6, 7, 8mm), 1x insulation ring, 1x sealing cap short and 1 sealing cap long
Technical specifications:
voltage = 400V - 3 pfase
frequency = 50 / 60Hz
circuit breaker = 25A B-char
input power = 13.8kVA
no load voltage = 70V
duty cycle (at 20°C ambient temperature) = 60% - 315A
duty cycle (at 40°C ambient temperature) = 35% - 315A
welding current range DC TIG = 10A - 315A
welding current range AC TIG = 20A - 315A
welding current range MMA = 20A - 250A
cooling unit content = 6L
protection class = IP21S
dimensions = 1110mm x 520mm x 1265mm
weight = 94kg
Product Dimensions: | |
---|---|
Product Length | 1,110 mm |
Product Width | 520 mm |
Product Height | 1,265 mm |
Product Weight | 94.0 Kg |
Package Dimensions: | |
Package Length | 1,190 mm |
Package Width | 520 mm |
Package Height | 1,445 mm |
Package Weight | 123.00 Kg |
