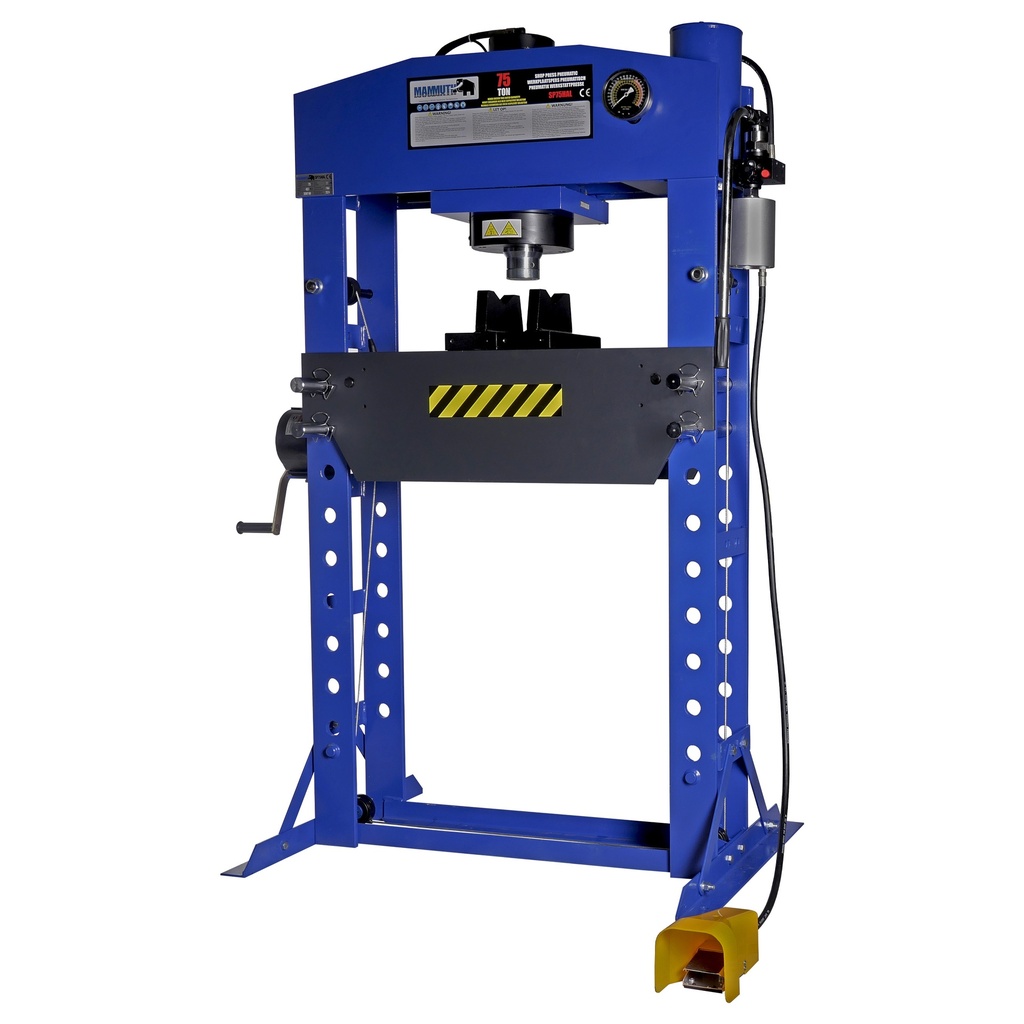

This Mammuth workshop press is a powerful and versatile press. Thanks to the fully welded frame with integrated pressure gauge and smooth operation, this press offers both power and precision.
-
Hand winch work table: Easily adjustable to 8 heights using the winch.
-
Side-adjustable cylinder: For precise positioning.
-
Interchangeable pressing adapter: Easy to remove for using other attachments.
-
Pneumatic foot pedal: Effortless operation, keeping your hands free.
-
Includes press blocks: Delivered with 2 press blocks.
Specifications
| Capacity | 75 ton |
| Workbed width | 800 mm |
| Workbed depth | 251 mm |
| Minimum working height | 170 mm |
| Maximum working height | 884 mm |
| Cylinder stroke | 250 mm |
| Cylinder diameter | ø78 mm |
| Working air pressure | 7.5 - 8.5 bar |
| Air connection | 1/4 NPT |
| Oil capacity | 1.8 L |
| Oil type | OKCH68 |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 1,140 mm |
| Product Width | 800 mm |
| Product Height | 1,896 mm |
| Product Weight | 451.0 Kg |
| Package Dimensions: | |
| Package Length | 2,110 mm |
| Package Width | 1,098 mm |
| Package Height | 320 mm |
| Package Weight | 498.00 Kg |
