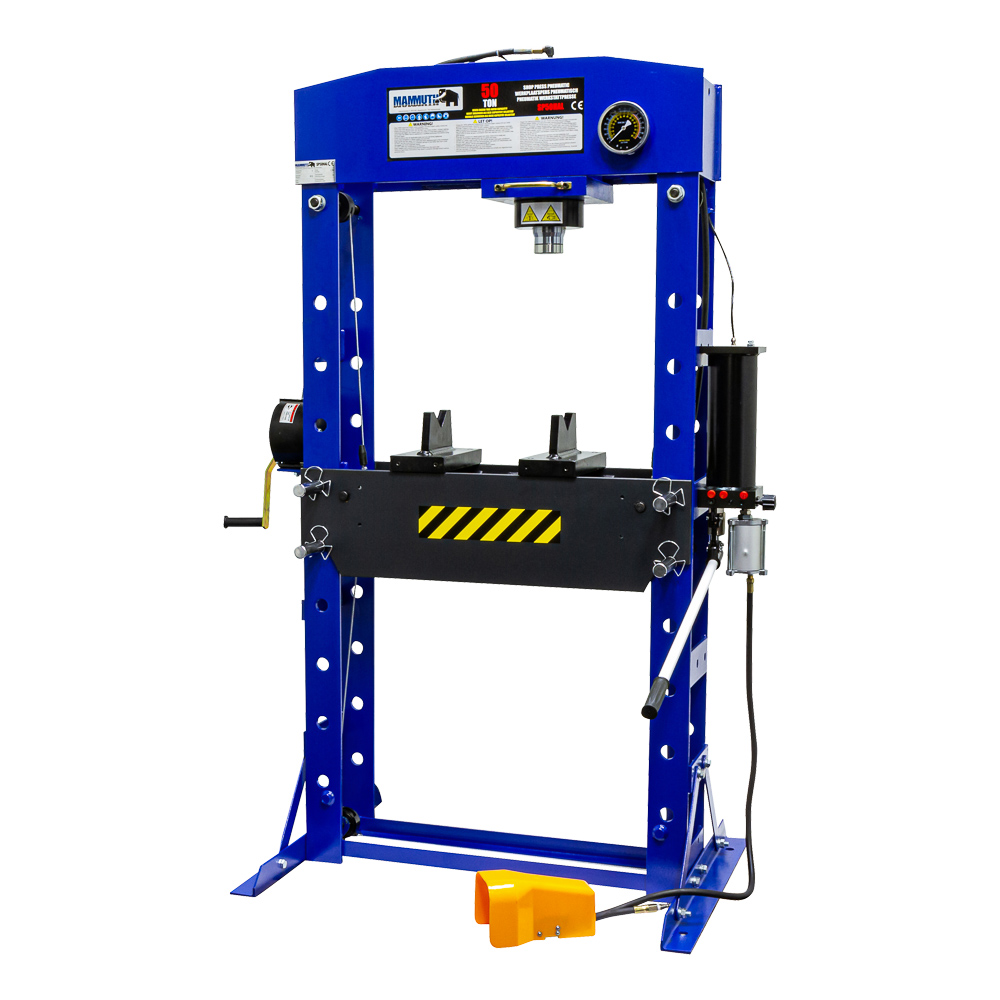

This Mammuth workshop press is a powerful and versatile press. Ideal for installing and removing bearings, straightening metal parts, and pressing shafts and bolts. Thanks to the fully welded frame with integrated pressure gauge and smooth operation, this press offers both power and precision.
- Winch-operated work table: Easily adjustable to 8 heights using the winch.
- Side-adjustable cylinder: For precise positioning.
- Interchangeable pressing adapter: Easy to remove for using other attachments.
- Pneumatic foot pedal: Effortless operation, keeping your hands free.
- Includes press blocks: Supplied with 2 press blocks.
Specifications
| Capacity | 50 ton |
| Workbed width | 730 mm |
| Workbed depth | 235 mm |
| Minimum working height | 67 mm |
| Maximum working height | 1047 mm |
| Cylinder stroke | 200 mm |
| Cylinder diameter | ø68 mm |
| Working air pressure | 7.5 - 8.5 bar |
| Air connection | 1/4 NPT |
| Oil capacity | 1.2 L |
| Oil type | OKCH68 |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 1,030 mm |
| Product Width | 800 mm |
| Product Height | 1,850 mm |
| Product Weight | 302.5 Kg |
| Package Dimensions: | |
| Package Length | 2,110 mm |
| Package Width | 975 mm |
| Package Height | 315 mm |
| Package Weight | 345.00 Kg |
