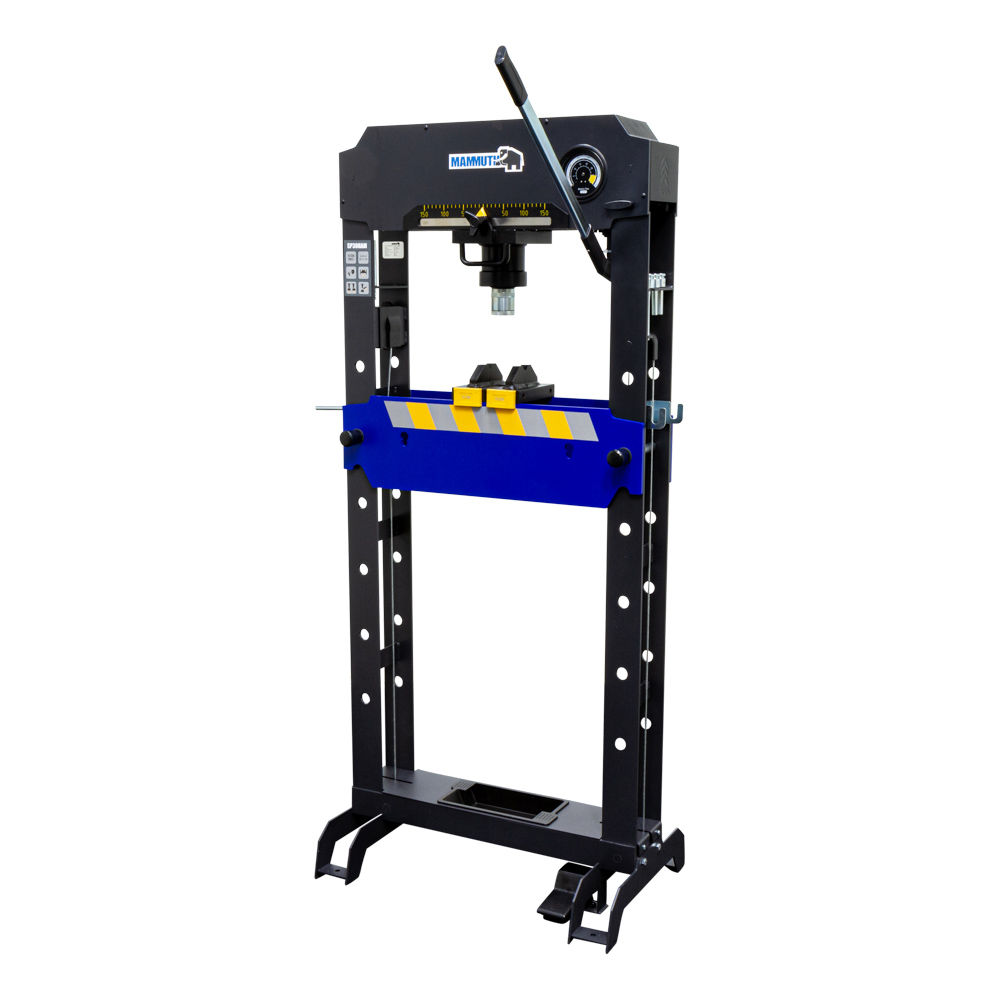

This Mammuth bearing press is ideal for installing bearings, pressing shafts and bolts, and other precise pressing tasks. Thanks to the fully welded frame with an integrated pressure gauge and smooth operation, this press is a reliable choice for any workshop. The press is supplied with 2 press blocks.
- Two-stage pump: First fast, then precise pressing.
- Hand winch workbed: Easily adjustable with the winch at 6 different heights.
- Adjustable cylinder with scale: Side adjustable and extendable via the screw spindle for precise positioning.
- Quick-change press adapter with 8 pressing pins: Easily clicks on and off.
-
Pneumatic foot pedal: Effortless operation and keeps your hands free.
Specifications
| Capacity | 30 ton |
| Workbed width | 600 mm |
| Workbed depth | 187 mm |
| Minimum working height | 25 mm |
| Maximum working height | 850 mm |
| Length of screw spindle | 75 mm |
| Cylinder stroke | 220 mm |
| Cylinder diameter | ø55 mm |
| Working air pressure | 8 - 12 bar |
| Air connection | 1/4" NPT external thread |
| Oil capacity | 1.2 L |
| Oil type | OKCH68 |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 770 mm |
| Product Width | 505 mm |
| Product Height | 1,800 mm |
| Product Weight | 180.0 Kg |
| Package Dimensions: | |
| Package Length | 840 mm |
| Package Width | 1,750 mm |
| Package Height | 350 mm |
| Package Weight | 194.00 Kg |
| Package Type: | |
| Pallet | 1 Pcs |
