Garagepress / bearing press / frame press

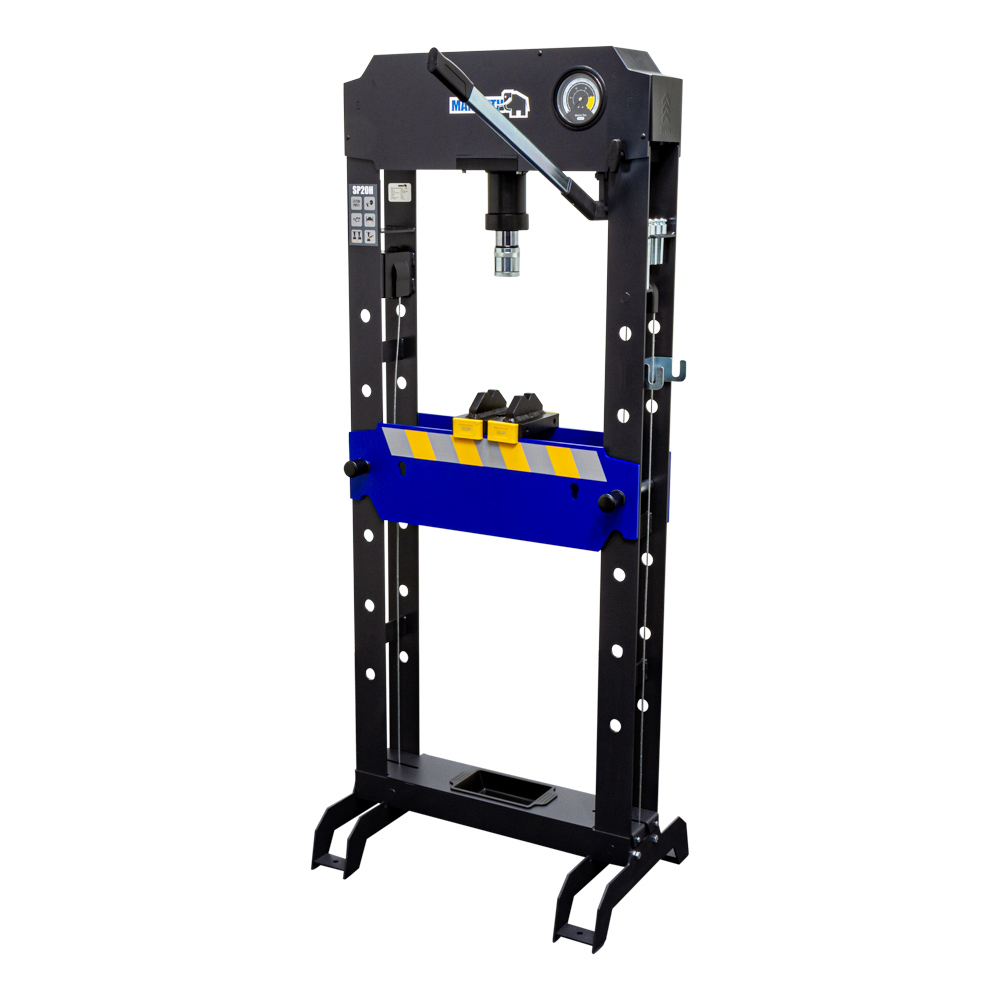

This Mammuth hydraulic press is suitable for mounting bearings, pressing in shafts and bolts, bending pipes and other pressing work that requires power. The press is of high quality and very stable thanks to the fully welded heavy frame. The working bed is easily manually in height adjustable using the hand winch. The press can be operated with the handle and pump, which has two speeds. The hydraulic cylinder is equipped with a height adjustable, 7,5cm long spindle. The pressure is read via the integrated pressure gauge.
Comes standard with a hydraulic hand pump, 2 heavy press blocks, 8 press pins, a parts tray and hydraulic oil CH22.
Specifications:
capacity = 20 ton
cylinder stroke = 220mm
bed width = 540mm
bed depth = 165mm
working range = 850mm
screw thread length = 75mm
| Product Dimensions: | |
|---|---|
| Product Length | 0 mm |
| Product Width | 0 mm |
| Product Height | 0 mm |
| Product Weight | 122.0 Kg |
| Package Dimensions: | |
| Package Length | 1,750 mm |
| Package Width | 780 mm |
| Package Height | 230 mm |
| Package Weight | 147.00 Kg |
| Package Type: | |
| 1 Pcs |
