Garagepress / bearing press / frame press / table press

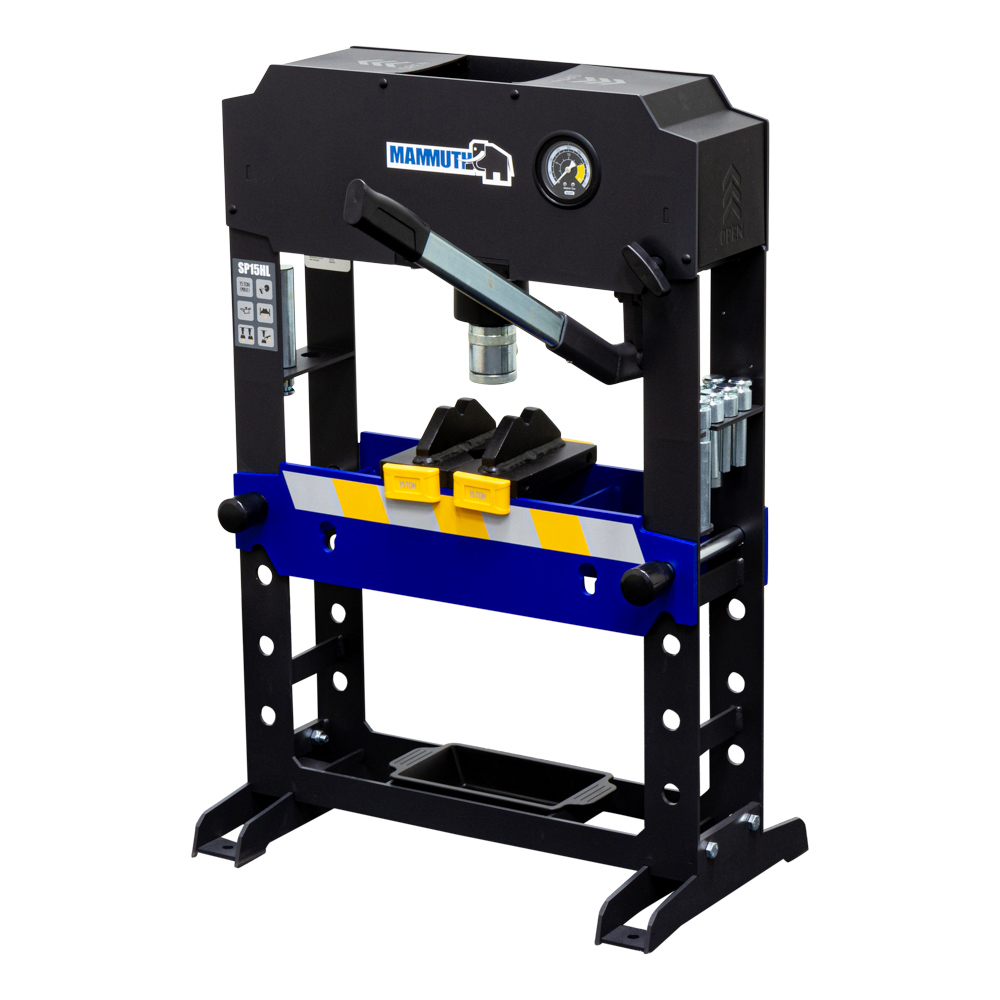

This Mammuth hydraulic press is suitable for mounting bearings, pressing in shafts and bolts, bending pipes and other pressing work that requires power. The press is of high quality and very stable thanks to the fully welded heavy frame. The working bed is easily manually in height adjustable. The press can be operated with the handle and pump, which has two speeds. The hydraulic cylinder is equipped with a height adjustable, 7,5cm long spindle. The pressure is read via the integrated pressure gauge.
Comes standard with a hydraulic hand pump, 2 heavy press blocks, 8 press pins, a parts tray and hydraulic oil CH22.
Specifications:
capacity = 15 ton
cylinder stroke = 170mm
diameter cylinder = 50mm
bed width = 440mm
bed depth = 165mm
working range = 340mm
screw thread length = 75mm
| Product Dimensions: | |
|---|---|
| Product Length | 565 mm |
| Product Width | 355 mm |
| Product Height | 855 mm |
| Product Weight | 57.0 Kg |
| Package Dimensions: | |
| Package Length | 600 mm |
| Package Width | 840 mm |
| Package Height | 230 mm |
| Package Weight | 61.00 Kg |
| Package Type: | |
| 1 Pcs |
