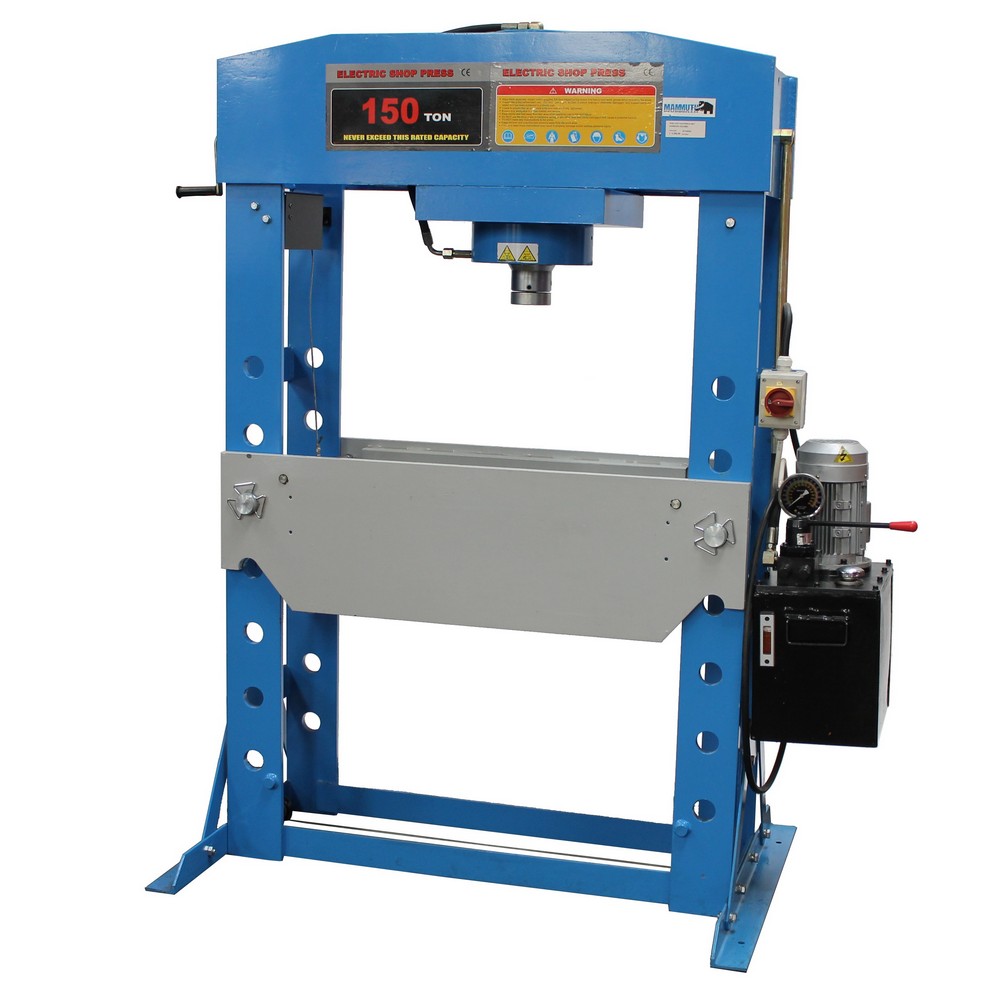

This Mammuth workshop press is a powerful and versatile machine. Thanks to the fully welded frame and electric hand or foot control, this press offers speed, power, and precision. This makes it a reliable choice for any workshop.
- Electric control: Effortless and fast operation.
- Hand winch: Easily adjust the work table to 7 different heights and the cylinder is adjustable sideways.
- Interchangeable pressing cap: Easily removable for using other attachments.
- Safety screen: For extra protection during use.
- Foot pedal: Keeps your hands free.
Note: the press is supplied without CH22 hydraulic oil (29 litres) and pressing blocks.
Specifications
| Capacity | 150 ton |
| Workbed width | 1000 mm |
| Workbed depth | 414 mm |
| Minimum working height | 64 mm |
| Maximum working height | 889 mm |
| Cylinder stroke | 350 mm |
| Cylinder diameter | ø98 mm |
| Voltage | 400V |
| Power | 1.5 kw |
| RPM | 1400 rpm |
| Extent speed | 2.3 mm/sec |
| Retract speed | 3.8 mm/sec |
| Oil capacity | 29 L |
| Oil type | OCH22 |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 1,453 mm |
| Product Width | 1,195 mm |
| Product Height | 2,100 mm |
| Product Weight | 1,200.0 Kg |
| Package Dimensions: | |
| Package Length | 2,550 mm |
| Package Width | 1,370 mm |
| Package Height | 850 mm |
| Package Weight | 1,287.00 Kg |
