Press / Garage press / bearing press / workshop press

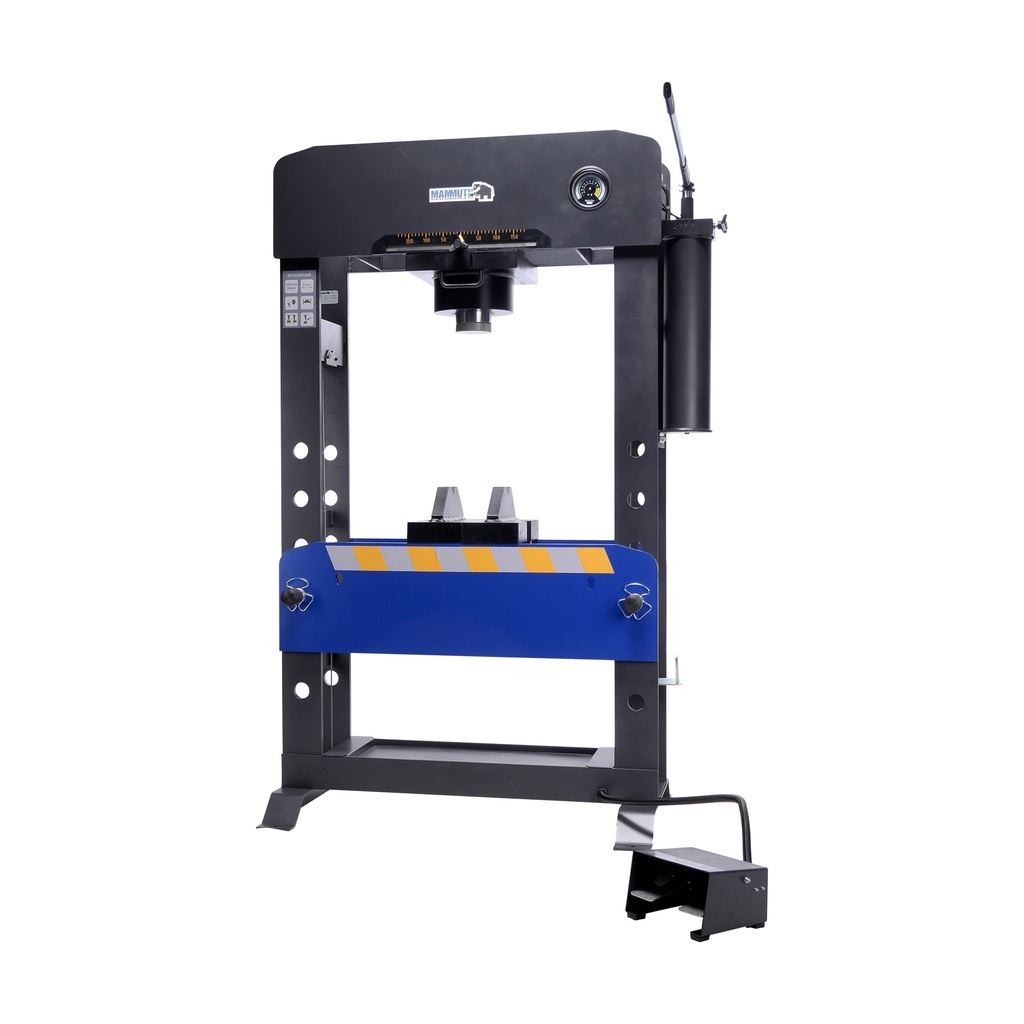

This Mammuth press is extremely suitable for mounting bearings, pressing in shafts and bolts, bending pipes and other press work where great force is required. The press has a fully welded solid frame. The pressure in kilograms can be clearly read on the integrated pressure gauge. The hydraulic cylinder can be moved in width (with bearings). The cylinder is also equipped with an interchangeable recording press head and integrated hydraulic two-stage pump. This built-in two-stage system provides a large stroke at low back pressure and a small controllable stroke at higher back pressure, so pressing work can be performed accurately. The work bed is easy to adjust in height using the winch. Thanks to the pneumatic pump system, the press can be operated with compressed air via the foot pedal or by hand.
The press comes standard with two multifunctional press blocks and a parts tray.
Technical specifications
capacity = 100 tons
working air pressure = 8-12 bar
bed width = 850mm
bed depth = 280mm
minimum distance bed/cylinder = 185mm
cylinder stroke = 300mm
Product Dimensions: | |
---|---|
Product Length | 1,255 mm |
Product Width | 750 mm |
Product Height | 1,938 mm |
Product Weight | 650.0 Kg |
Package Dimensions: | |
Package Length | 1,950 mm |
Package Width | 1,300 mm |
Package Height | 400 mm |
Package Weight | 700.00 Kg |
