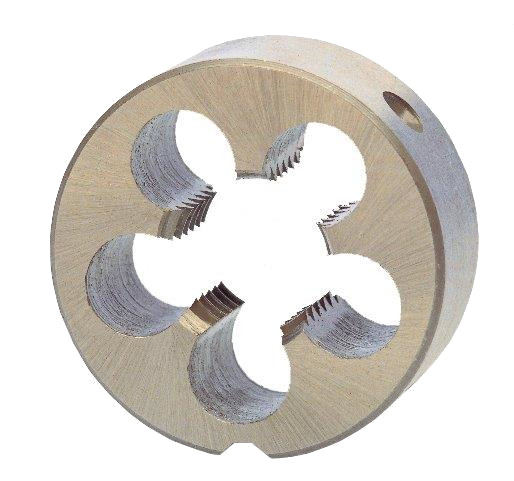

Round dies
HSS fully ground round dies are made from alloyed high speed steel. Full grinding during the production process results in a very sharp die with high precision. In combination with cutting oil this will result in a very long tool life. Very suitable for tapping external threads in unalloyed steels such as sheet steel, construction steel and cast iron.
Technical specificaties:
size = M6
pitch = 1,00mm
diameter = 20mm
thickness = 7mm
DIN EN 22568
material = HSS - G
right hand
fully ground
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 20 mm |
| Product Width | 20 mm |
| Product Height | 7 mm |
| Product Weight | 0.02 Kg |
| Package Dimensions: | |
| Package Length | 90 mm |
| Package Width | 45 mm |
| Package Height | 18 mm |
| Package Weight | 0.03 Kg |
