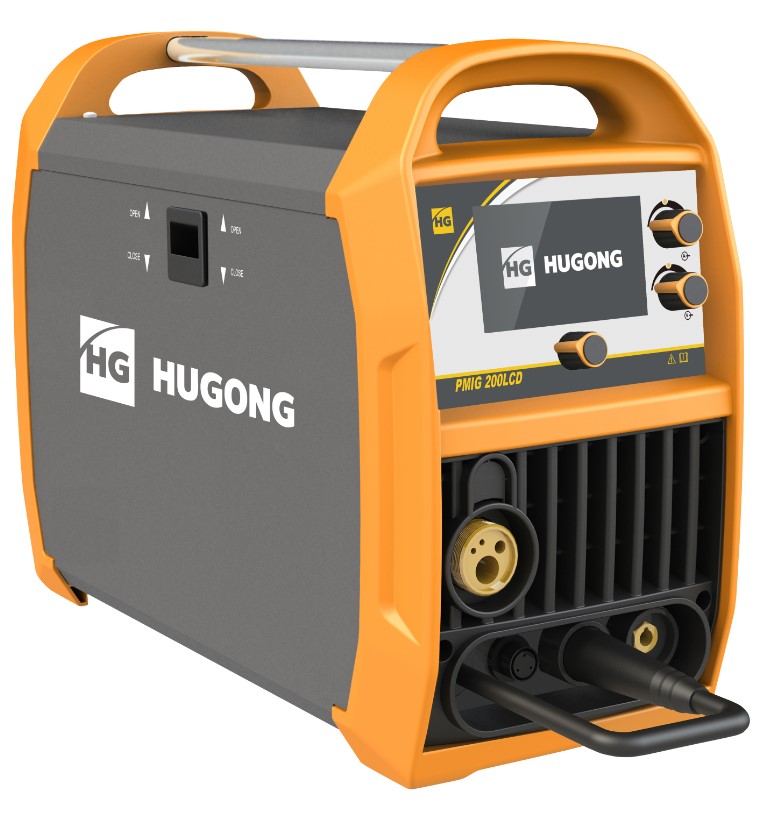

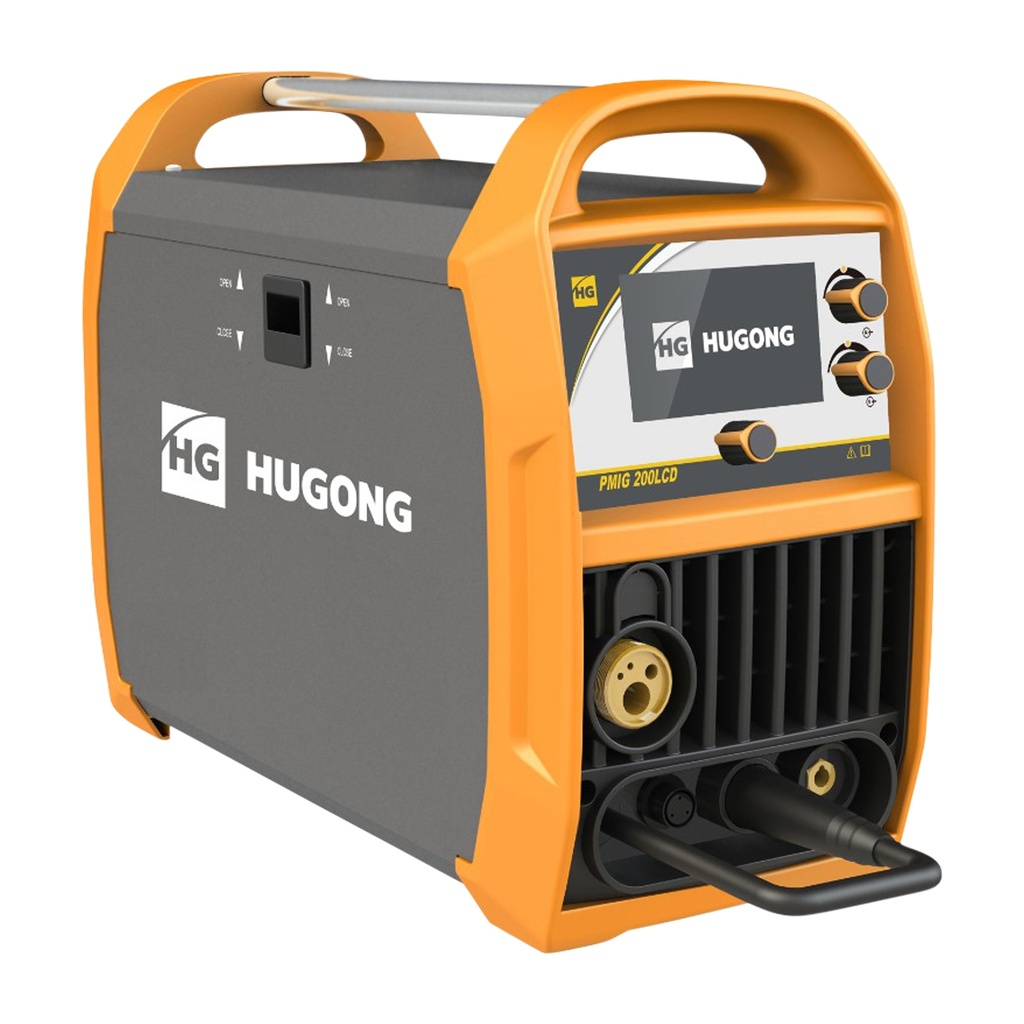

The Hugong PMIG200LCD is an advanced synergic MIG inverter welder with pulse and double pulse functionality. This 3-in-1 machine supports MIG/MAG, MMA (stick), Lift-TIG, and Pulse MIG welding, combining precise digital control with powerful performance. Its compact design and wide range of settings make it suitable for use both in the workshop and on-site.
The PMIG200LCD offers both manual and synergic control, giving you the choice between automatic parameter adjustment and full manual control. It welds effortlessly on steel, stainless steel, aluminium, and flux-cored wire - ideal for a wide range of applications, including stainless and aluminium work.
- Pulse & Double Pulse MIG
Accurate control of heat input and weld speed – ideal for stainless steel and aluminium.
- LCD interface with synergic control
Clear display with the option for automatic or fully manual parameter adjustment.
- 3-in-1 welding process: MIG (with pulse), MMA, Lift-TIG, and spot welding
Versatile functionality in a single unit, including advanced MIG modes and spot welding.
- Shock-resistant ABS housing
Robust design for professional use in demanding environments.
- 5-year warranty upon registration
Extended manufacturer support and confidence in Hugong’s build quality.
Supplied with:
- MIG torch EP1500 – 3 meters, with 1.0 – 1.2 mm Teflon wire liner
- Ground clamp with 3-meter cable
- 4-meter reinforced gas hose with NW5 quick connector
- Wire feed rollers: 0.8U / 1.0U, 1.0 / 1.2 and 0.8 / 1.0 mm (solid)
- Contact tips: 0.8 mm, 1.0 mm, 1.2 mm
- 1× wire guide and 1× liner
- NW5 connector + 10 – 16 hose clamp
Specifications
| Frequency | 50/60 Hz |
| Voltage | 220V - 1 Phase |
| No load voltage | 68V |
| Input power | 8.36kVA |
| Rated input current | 38A |
| Duty cycle @40C | 20% - 200A |
| Welding current range | MIG 30 - 200A / MMA 25 - 200A |
| Weldable welding wire | 0.8 / 1.0 / 1.2 mm |
| Protection class | IP21S |
| Product Dimensions: | |
|---|---|
| Product Length | 490 mm |
| Product Width | 190 mm |
| Product Height | 335 mm |
| Product Weight | 11.0 Kg |
| Package Dimensions: | |
| Package Length | 555 mm |
| Package Width | 305 mm |
| Package Height | 420 mm |
| Package Weight | 15.70 Kg |
