Plasma cutter / plasma cutting machine

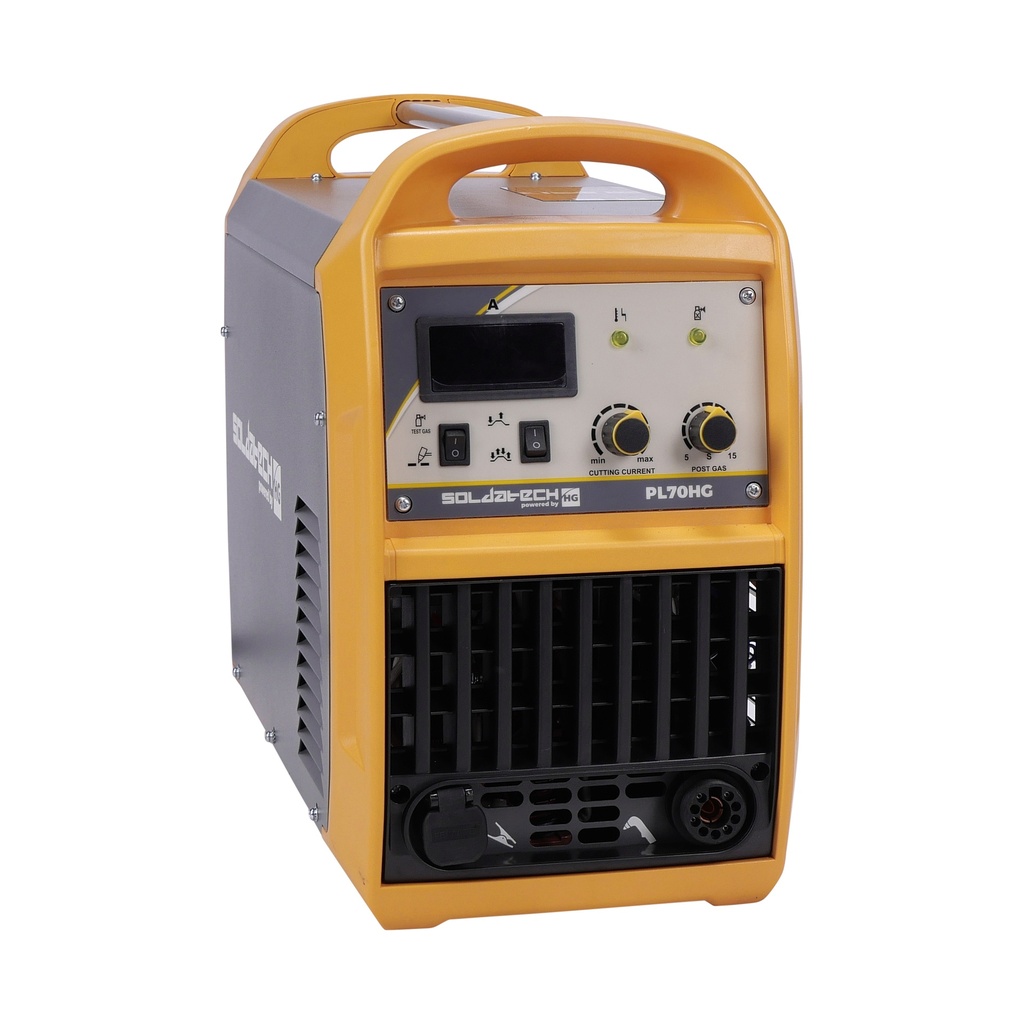

This Soldatech powered by HG plasma cutter cuts various materials with high-quality results. The PL70HG is a compact, powerful and easy to use plasma cutter that is equipped with Pilot ARC ignition. This in combination with the HF ignition makes this cutter very easy to ignite and it is capable of cutting smoothly through rusted, coated or structured material up to 25mm.
The PL70HG has a user-friendly control panel and can even be adjusted during cutting work to achieve the best cutting result.
The modern IGBT inverter technology not only ensures that the PL70HG delivers long-lasting performance with more power, but it also makes the welder lightweight and portable. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.
Ideal for cutting low alloy steel, stainless steel and aluminum alloys.
Each PL70HG comes standard with:
- Soldatech PL80M5 plasma torch with 5m cable
- work clamp with 2m 16mm² cable
- Gas line of 4m with hose clamps
- 5-pin 32A plug with 2.5m 4x2.5mm² cable
- Standard 9mm Dinse cable couplings
Technical specifications:
- voltage = 400V - 3 phase
- frequency = 50/60Hz
- fuse protection = 20A B-char
- input power = 9.4kVA
- duty cycle (at 20°C ambient temperature) = 100% - 70A
- duty cycle (at 40°C ambient temperature) = 60% - 70A
- welding current range = 25 - 70A
- max. unloaded voltage = 330V
- recommended cutting thickness = 17mm
- max. cutting thickness = 25mm
- average air / gas consumption = 220L/min
- protection class = IP21S
- dimensions = 550 x 245 x 405mm
- weight = 23.5kg
| Product Dimensions: | |
|---|---|
| Product Length | 550 mm |
| Product Width | 245 mm |
| Product Height | 405 mm |
| Product Weight | 23.5 Kg |
| Package Dimensions: | |
| Package Length | 700 mm |
| Package Width | 335 mm |
| Package Height | 460 mm |
| Package Weight | 28.80 Kg |
