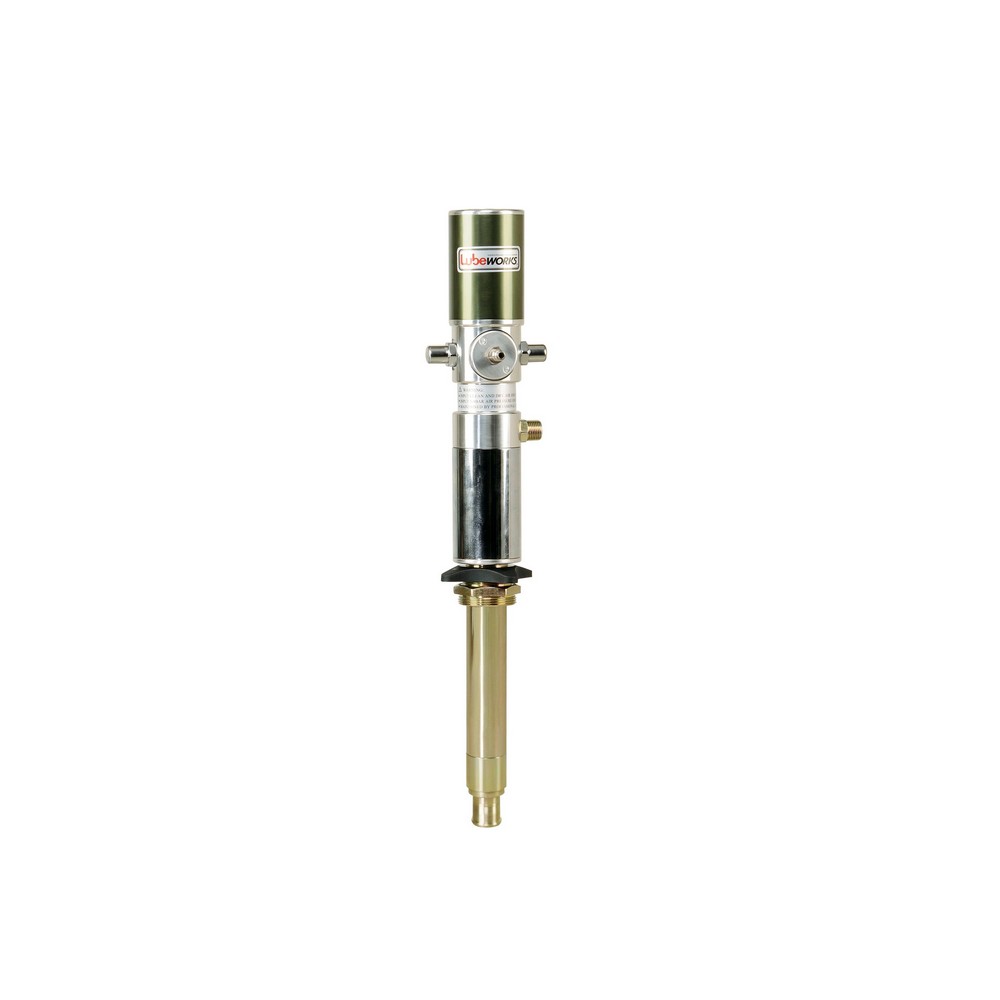

Air operated oil pump
The pump can handle fluids like motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid. Suitable for oil to 120 SAE and supplied with a 2'' bung adaptor.
- drum application = 50 - 60kgs
- pressure ratio = 1:1
- air inlet pressure = 5 - 8 bar
- max fluid pressure = 8 bar
- air motor effective diameter = 63mm
- air consumption = 8 bar 100 L/min
- max. free flow rate = 18 L/min
- air inlet connection = 1/4'' quick plug 1/4'' NPT female
- oil outlet connection = 1/2''
Product Dimensions: | |
---|---|
Product Length | 0 mm |
Product Width | 0 mm |
Product Height | 0 mm |
Product Weight | 0.0 Kg |
Package Dimensions: | |
Package Length | 750 mm |
Package Width | 130 mm |
Package Height | 130 mm |
Package Weight | 5.00 Kg |
