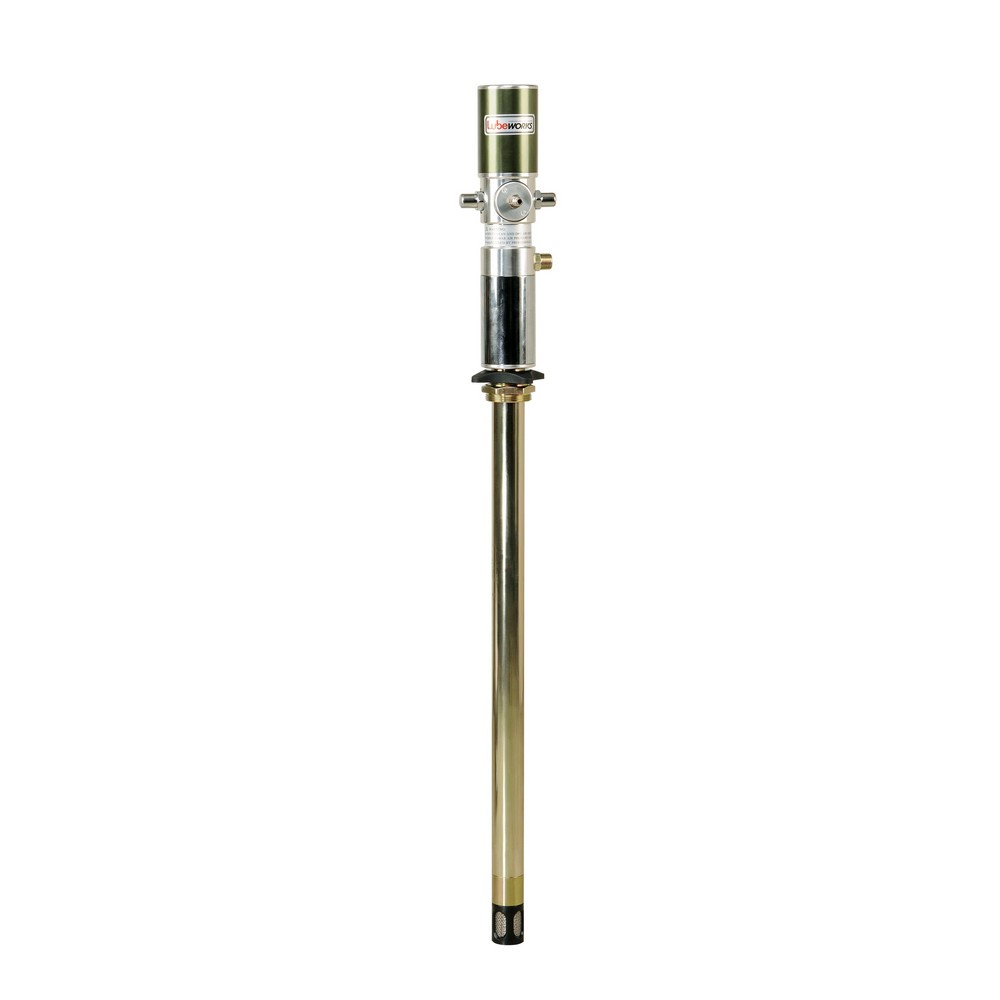

Air operated oil pump
The pump can handle fluids like motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid. Suitable for oil to 120 SAE and supplied with a 2'' bung adaptor.
- drum application = 50 - 60kgs
- pressure ratio = 1:1
- air inlet pressure = 5 - 8 bar
- max fluid pressure = 8 bar
- air motor effective diameter = 63mm
- air consumption = 8 bar 100 L/min
- max. free flow rate = 18 L/min
- suction tube diameter = 42mm
- suction tube length = 730mm
- air inlet connection = 1/4'' quick plug 1/4'' NPT female
- oil outlet connection = 1/2''
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 0 mm |
| Product Width | 0 mm |
| Product Height | 0 mm |
| Product Weight | 0.0 Kg |
| Package Dimensions: | |
| Package Length | 1,350 mm |
| Package Width | 130 mm |
| Package Height | 130 mm |
| Package Weight | 6.00 Kg |
