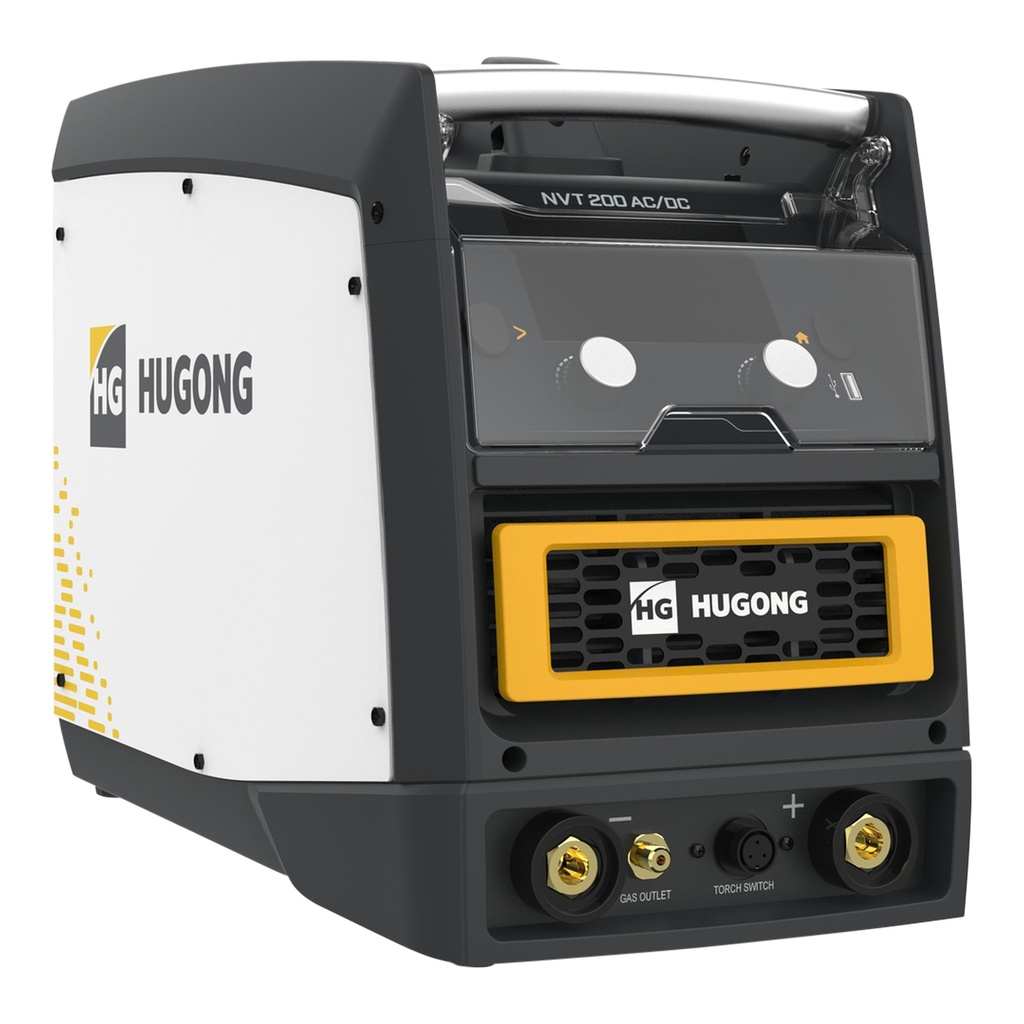

The Hugong NVT233ACDC is a high-end digital TIG welding machine designed for both AC and DC applications. This machine is part of the NOVI line and offers advanced 4-in-1 functionality: HF TIG AC, HF TIG DC, Lift-TIG, and MMA. It’s powered by next-generation IGBT inverter technology and a Cortex M4 chip, providing precise and reliable control over the welding process.
The NVT233ACDC features full TIG functionality including pulse control, gas pre-flow and post-flow, slope up/down, and 2T/4T operation. In MMA mode, the device includes Arc Force, Hot Start, and Anti-Sticking features. The AC ARCARE system ensures smooth arc stability and is ideal for thin sheet applications or spot welding. Thanks to the PFC module, the machine can handle wide voltage input ranges from 95–275V, making it suitable for unstable power grids or mobile power sources.
With its HDVision control panel, you get intuitive access to all parameters on a crystal-clear display. Its robust design with ABS shock-resistant housing makes it a durable choice for demanding workshops.
This unit is ideal for welding carbon steel, stainless steel, copper-silicon alloys (CuSi), and aluminum.
Key features:
- 4-in-1 welding process: HF TIG AC, HF TIG DC, Lift-TIG & MMA
Full control and flexibility for a wide range of welding tasks.
- HDVision control panel with synergic settings
Intuitive and precise control of welding parameters via high-resolution display.
- AC ARCARE for arc stability on aluminum and thin sheet
Enhanced arc stability even at low currents — perfect for thin and delicate materials.
- ABS shock-resistant housing
Durable and protected against impacts, dust, and workshop conditions.
- 5-year warranty upon registration
Long-term support and assurance directly from Hugong.
Supplied with:
- HG PRO 26 TIG torch – 4 meters
- Ground cable with clamp – 3 meters, 16 mm²
- Gas hose – 3 meters with NW5 connector and two clamps
- Polished tungsten electrode – Ø1.6 × 150 mm
Specifications
| Frequency | 50/60 Hz |
| Voltage | 230V - 1 Phase |
| No load voltage | 69V |
| Rated input current | 27A |
| Duty cycle @20C | 60% - 230A |
| Duty cycle @40C | 30% - 230A |
| Welding current range | ACTIG 15 - 230A / DCTIG 5 - 230A / MMA 10 - 180A |
| Product Dimensions: | |
|---|---|
| Product Length | 538 mm |
| Product Width | 241 mm |
| Product Height | 402 mm |
| Product Weight | 18.0 Kg |
| Package Dimensions: | |
| Package Length | 0 mm |
| Package Width | 0 mm |
| Package Height | 0 mm |
| Package Weight | 0.00 Kg |
